Description

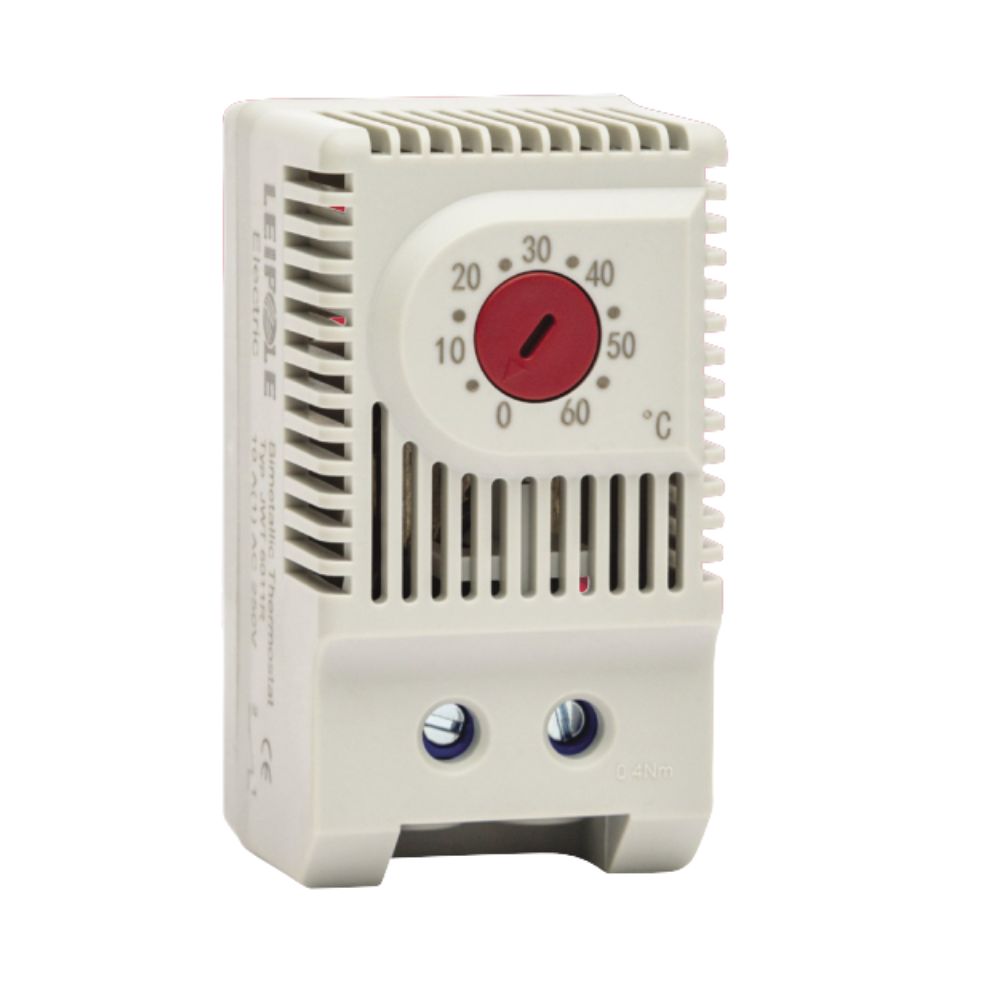

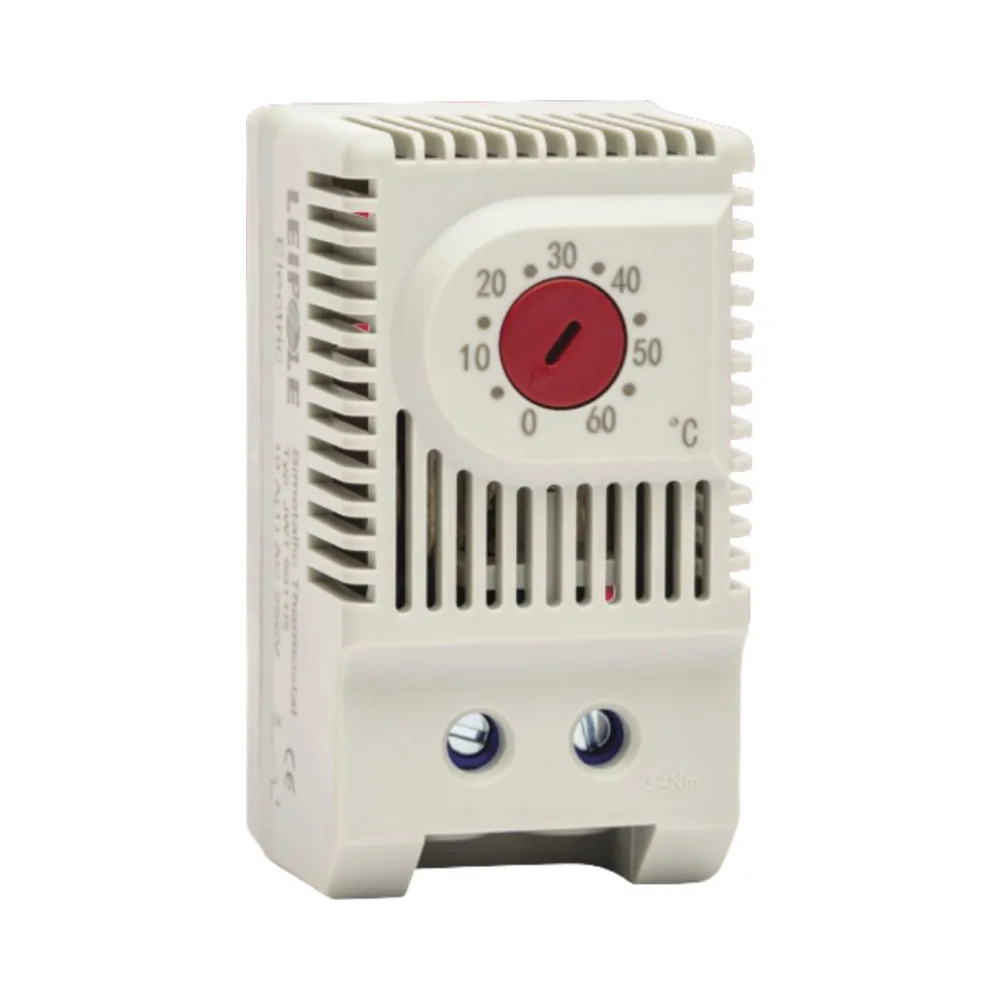

Normally Open Panel Thermostat
Niglon CT60NO
Reliable Temperature Control for Cooling Applications – Niglon CT60NO Panel Thermostat
The Niglon CT60NO Panel Thermostat is designed to precisely regulate temperature in control panels and electrical enclosures. Featuring a normally open (NO) contact, it is ideal for activating cooling devices when the temperature exceeds the set value. With a bimetallic sensing element, it ensures accurate and consistent temperature control, while the DIN rail mounting system enables quick and secure installation.
Key Features
- Normally open (NO) contact, switches on cooling devices when the temperature rises above the set value
- Temperature range of 0°C to 60°C for precise regulation
- Bimetallic sensing element for reliable and accurate performance
- Rated voltage: 250V AC / 30V DC, suitable for industrial applications
- Compact dimensions: 32mm width, 61mm height, 37mm depth
- Screw terminal connections for secure wiring
- Ingress protection of IP20, ideal for enclosed environments
- DIN rail mounting for easy and stable installation
- Switching temperature tolerance of 7K (±4K) for accuracy
- Red-coloured control dial for easy identification
Technical Specifications of the Niglon CT60NO Panel Thermostat
- Rated Voltage: 250V AC / 30V DC
- Rated Current: 10A
- Temperature Range: 0°C to 60°C
- Dimensions (W x H x D): 32mm x 61mm x 37mm
- Construction Material: ABS
- Sensing Element: Bimetallic
- Connection Type: Screw terminals
- Switching Temperature Tolerance: 7K (±4K)
- Terminal Capacity: 2.5mm²
- Tightening Torque: 0.8 Nm
- Operating/Storage Temperature: -5°C to +80°C
- Ingress Protection: IP20
- Weight: 45g
Why Choose Niglon?
- Trusted manufacturer of electrical and automation solutions
- Reliable temperature control for industrial and commercial environments
- Optimised for cooling applications, ensuring precise and consistent regulation
- Quick and secure DIN rail mounting for fast installation
More Information
This product is for use by skilled or instructed persons and must be installed following IEE regulations. All terminals, including factory-fitted ones, should be checked for tightness before commissioning and periodically maintained.
For further details or product availability, contact Niglon or refer to the official Niglon catalogue and technical documentation.
