Panel Thermostat
Niglon CT60NC

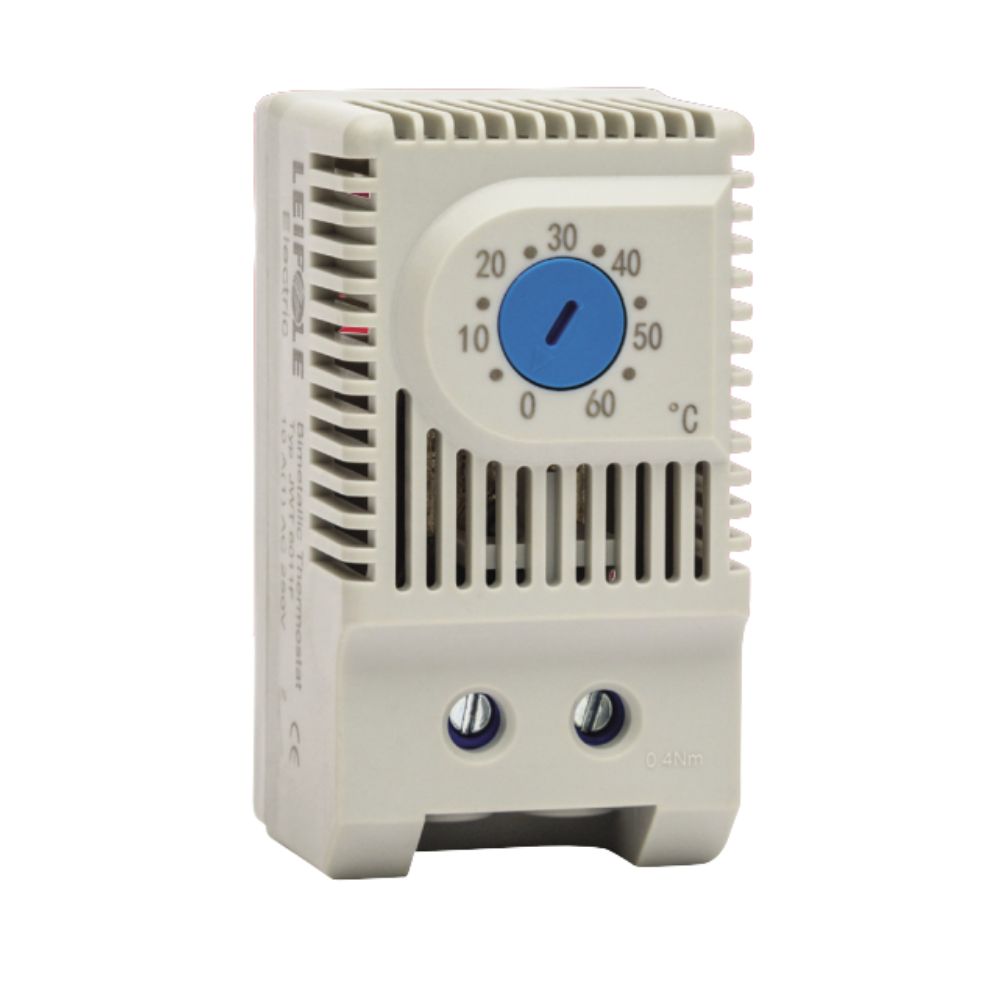

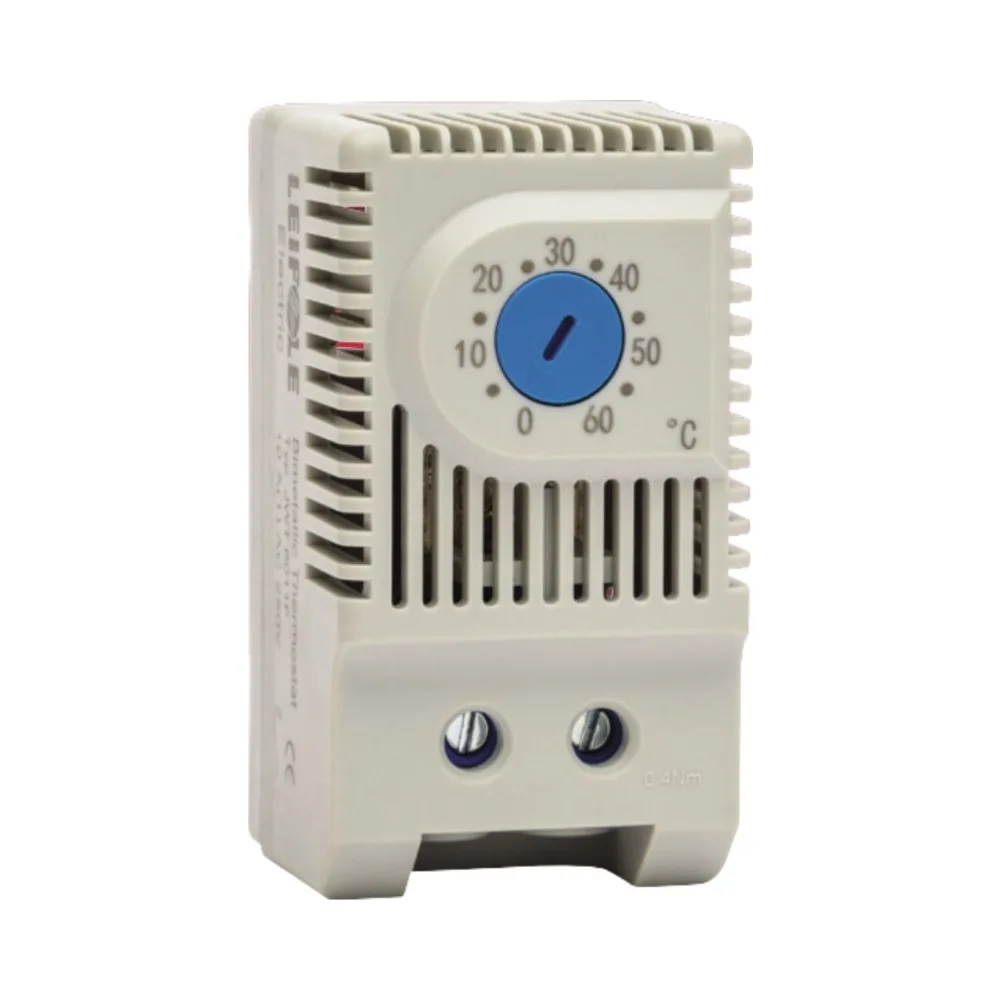

Reliable Temperature Control for Heating Applications – Niglon CT60NC Panel Thermostat
The Niglon CT60NC Panel Thermostat is designed to regulate temperature effectively in control panels and electrical enclosures. It features a normally closed (NC) contact, making it ideal for controlling heaters by switching off when the temperature exceeds the set value. With a bimetallic sensing element, it provides accurate and consistent temperature control, while the DIN rail mounting system allows for quick and secure installation.
Key Features
- Normally closed (NC) contact, switches off when the temperature exceeds the set value
- Temperature range of 0°C to 60°C for precise regulation
- Bimetallic sensing element for reliable performance
- Rated voltage: 250V AC / 30V DC, suitable for industrial use
- Compact dimensions: 32mm width, 61mm height, 37mm depth
- Screw terminal connections for secure wiring
- Ingress protection of IP20, ideal for enclosed environments
- DIN rail mounting for easy and stable installation
- Switching temperature tolerance of 7K (±4K) for accuracy
- Blue-coloured control dial for easy identification
Technical Specifications of the Niglon CT60NC Panel Thermostat
- Rated Voltage: 250V AC / 30V DC
- Rated Current: 10A
- Temperature Range: 0°C to 60°C
- Dimensions (W x H x D): 32mm x 61mm x 37mm
- Construction Material: ABS
- Sensing Element: Bimetallic
- Connection Type: Screw terminals
- Switching Temperature Tolerance: 7K (±4K)
- Terminal Capacity: 2.5mm²
- Tightening Torque: 0.8 Nm
- Operating/Storage Temperature: -5°C to +80°C
- Ingress Protection: IP20
- Weight: 45g
Why Choose Niglon?
- Trusted manufacturer of electrical and automation solutions
- Reliable temperature control for industrial and commercial environments
- Optimised for heating applications, ensuring precise and consistent regulation
- Quick and secure DIN rail mounting for fast installation
More Information
This product is for use by skilled or instructed persons and must be installed following IEE regulations. All terminals, including factory-fitted ones, should be checked for tightness before commissioning and periodically maintained.
For further details or product availability, contact Niglon or refer to the official Niglon catalogue and technical documentation.
