Description

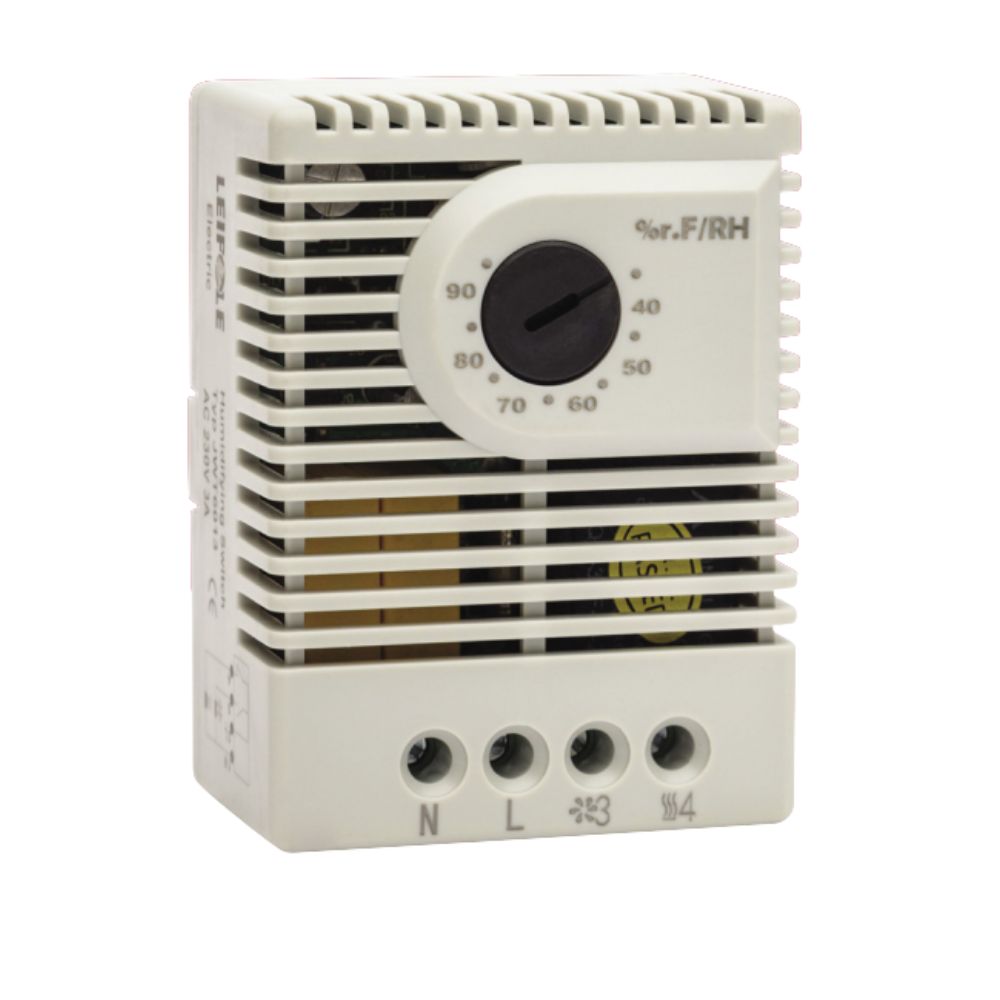

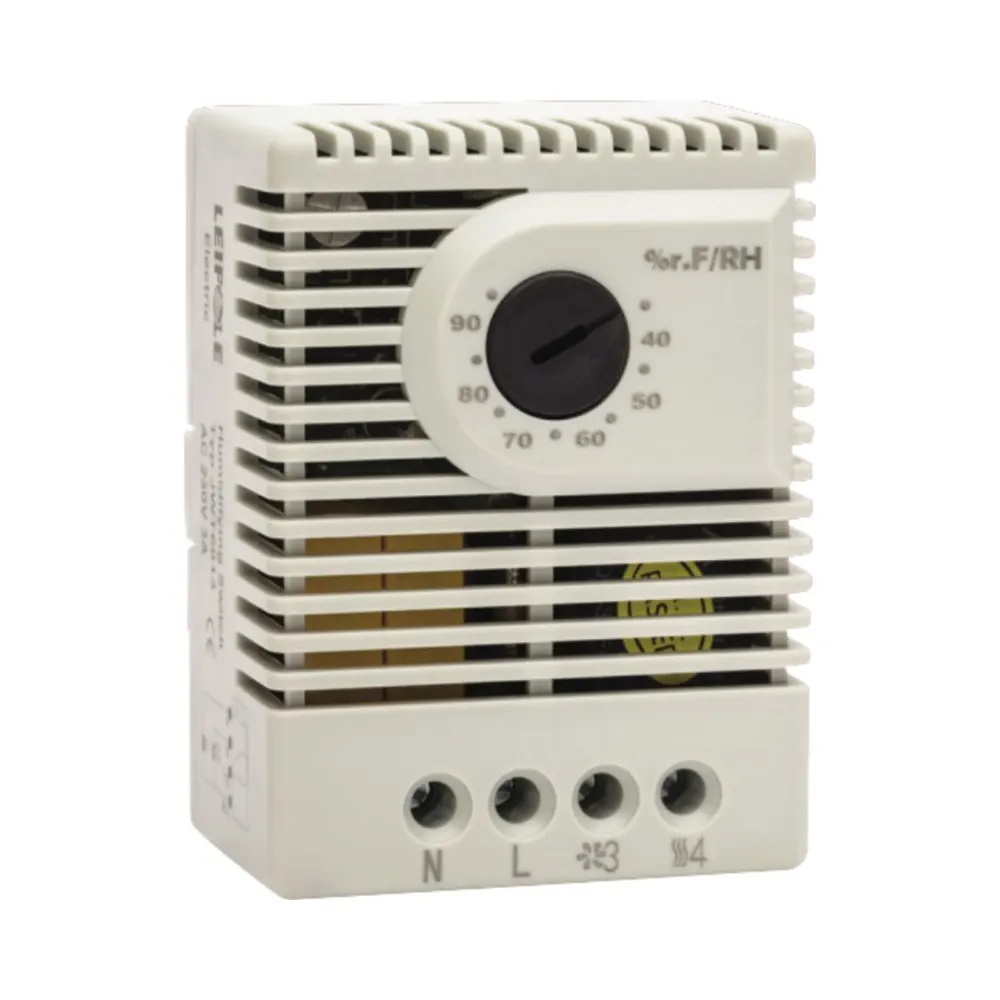

Panel Thermostat with Humidistat
Niglon CT60HYD
Humidity-Controlled Thermostat for Industrial Applications – Niglon CT60HYD Panel Thermostat with Humidistat
The Niglon CT60HYD Panel Thermostat is designed to monitor and regulate relative humidity within control panels and electrical enclosures. By switching a heater on or off, it helps maintain optimal humidity levels, preventing condensation and moisture-related issues. Featuring a bimetallic sensing element, it ensures precise humidity control, while the DIN rail mounting system allows for quick and secure installation.
Key Features
- Hygrostat function to measure and control relative humidity
- Switching range of 30% – 90% RH, ensuring adaptable humidity control
- Bimetallic sensing element for reliable and precise response
- Rated voltage: 250V AC / 30V DC, suitable for industrial applications
- Compact dimensions: 49mm width, 65mm height, 37mm depth
- Screw terminal connections for secure wiring
- Ingress protection of IP20, ideal for enclosed environments
- DIN rail mounting for easy and stable installation
- Switching humidity tolerance of ±3% RH, ensuring accuracy
Technical Specifications of the Niglon CT60HYD Panel Thermostat with Humidistat
- Rated Voltage: 250V AC / 30V DC
- Rated Current: 5A
- Operating Humidity Range: 30% – 90% RH
- Switching Humidity Tolerance: 4% RH (±3%)
- Dimensions (W x H x D): 49mm x 65mm x 37mm
- Construction Material: ABS
- Sensing Element: Bimetallic
- Connection Type: Screw terminals
- Terminal Capacity: 2.5mm²
- Tightening Torque: 0.8 Nm
- Operating/Storage Temperature: -5°C to +80°C
- Ingress Protection: IP20
- Weight: 55g
Why Choose Niglon?
- Trusted manufacturer of electrical and automation solutions
- Reliable humidity control for industrial and commercial environments
- Prevents condensation and moisture damage in electrical enclosures
- Quick and secure DIN rail mounting for fast installation
More Information
This product is for use by skilled or instructed persons and must be installed following IEE regulations. All terminals, including factory-fitted ones, should be checked for tightness before commissioning and periodically maintained.
For further details or product availability, contact Niglon or refer to the official Niglon catalogue and technical documentation.
