Description

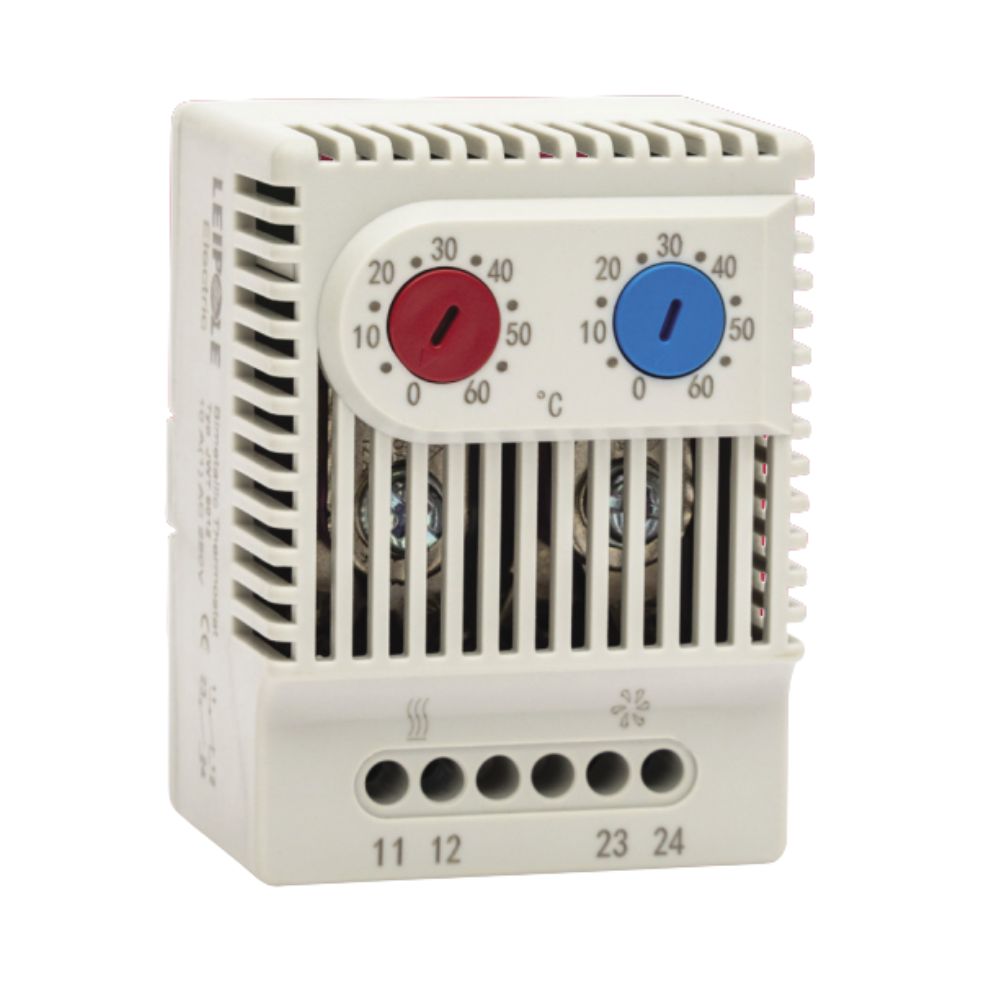

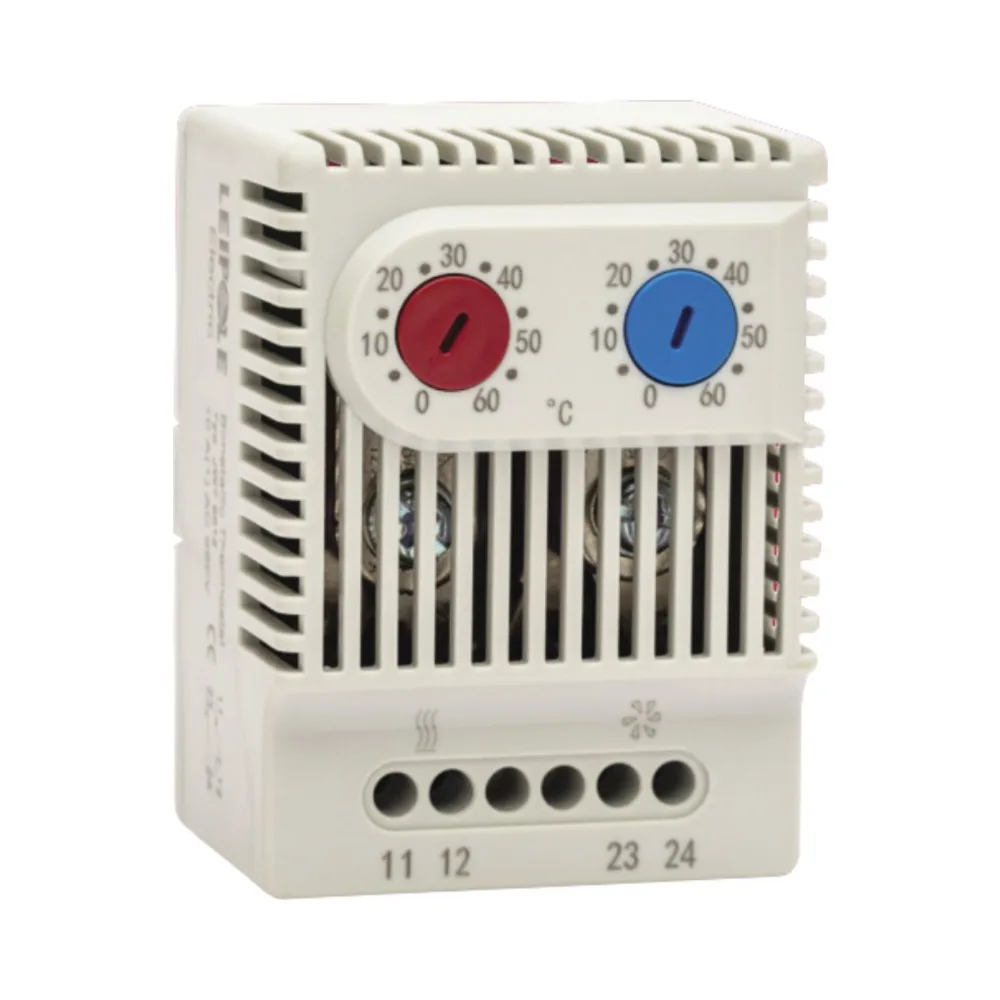

Panel Thermostat
Niglon CT60DUAL
Dual Function Thermostat for Precise Temperature Control – Niglon CT60DUAL Panel Thermostat
The Niglon CT60DUAL Panel Thermostat is designed to regulate temperature effectively in control panels and enclosures. Featuring both normally open (NO) and normally closed (NC) contacts, it allows for dual control functionality, making it suitable for both heating and cooling applications. Its bimetallic sensing element ensures accurate temperature regulation, while the DIN rail mounting enables quick and secure installation.
Key Features
- Dual function – Includes normally open (NO) and normally closed (NC) contacts
- Temperature range of 0°C to 60°C for versatile applications
- Bimetallic sensing element for reliable and precise temperature control
- Rated voltage: 250V AC / 30V DC, supporting a wide range of electrical setups
- Compact dimensions: 49mm width, 65mm height, 37mm depth
- Screw terminal connections for secure and easy wiring
- IP20 ingress protection, suitable for indoor electrical enclosures
- DIN rail mounting for fast and stable installation
- Switching temperature tolerance of 7K (±4K) for accuracy
Technical Specifications of the CT60DUAL
- Rated Voltage: 250V AC / 30V DC
- Rated Current: 10A
- Temperature Range: 0°C to 60°C
- Dimensions (W x H x D): 49mm x 65mm x 37mm
- Construction Material: ABS
- Sensing Element: Bimetallic
- Connection Type: Screw terminals
- Switching Temperature Tolerance: 7K (±4K)
- Terminal Capacity: 2.5mm²
- Tightening Torque: 0.8 Nm
- Operating/Storage Temperature: -5°C to +80°C
- Ingress Protection: IP20
- Weight: 65g
Why Choose Niglon?
- Trusted brand in electrical and automation solutions
- High-quality, durable components designed for industrial and commercial environments
- Dual thermostat design, providing both heating and cooling control
- DIN rail mounting, ensuring quick and easy installation
More Information
This product is for use by skilled or instructed persons and must be installed following IEE regulations. All terminals, including factory-fitted ones, should be checked for tightness before commissioning and periodically maintained.
For further details or product availability, contact Niglon or refer to the official Niglon catalogue and technical documentation.
