Description

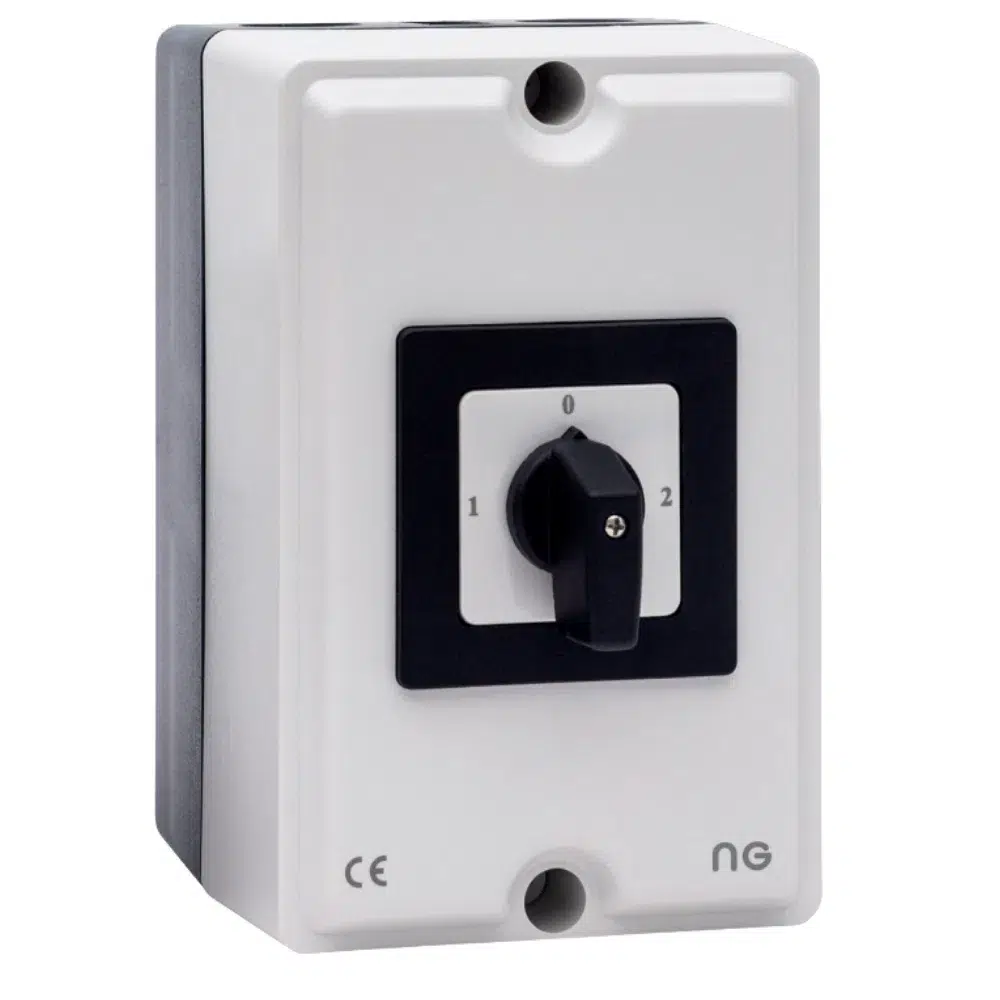

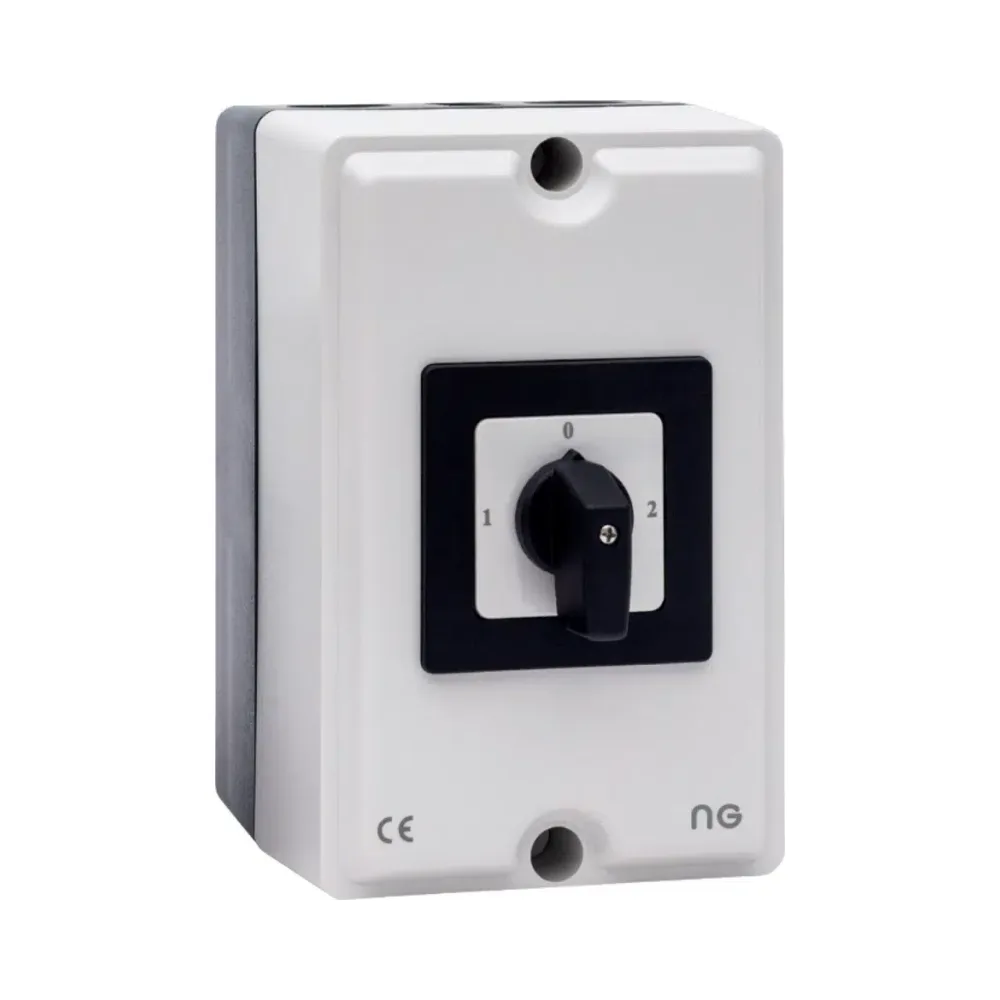

80A 440V IP65 Polycarbonate Enclosed Manual Changeover Switch (4-Pole)
Niglon CS804P – Industrial Power Control Solution
The Niglon CS804P 80A 4-Pole Manual Changeover Switch is a robust and reliable power switching solution, designed for seamless transitions between two power sources in industrial and commercial applications. Featuring a polycarbonate-enclosed design, this switch offers superior insulation and impact resistance, ensuring safe and efficient power management.
With an IP65-rated enclosure, this manual changeover switch provides protection against dust and water ingress, making it suitable for harsh environments. Its four-pole configuration allows for three-phase power distribution with a neutral connection, making it an ideal choice for backup power systems, industrial machinery, and distribution networks.
Key Features of the Niglon CS804P 80A 440V IP65 Enclosed Manual 4 Pole Changeover Switch
- IP65 Rated – Offers excellent dust and water resistance, ideal for industrial applications
- 80A Rated Current – Handles high-power switching operations
- 4-Pole Configuration – Supports three-phase power distribution with a neutral connection
- Polycarbonate Enclosure – Ensures enhanced electrical insulation and impact resistance
- Manual Operation – Allows precise and controlled switching between power sources
- Compact & Durable Design – Space-efficient and built for long-lasting reliability
- Certified to EN60947-3 Standards – Ensures safe and compliant operation
Technical Specifications
- Product Code: CS804P
- Rated Current: 80A
- Rated Voltage (Ue): 440V
- Rated Insulation Voltage (Ui): 690V
- Number of Poles: 4 (Three-Phase + Neutral)
- Rated Operating Current:
- AC-22A: 80A
- AC-23A: 80A
- AC-3: 63A
- Rated Power Control: 30kW
- Rated Short-Time Withstand Current (Icw): 2000A
- Connect Wire Size: 25mm²
- Screw Torque: 2 N.m
- Enclosure Colour:
- Upper cover RAL 9002
- Bottom case RAL 7031
- Overall Dimensions (HxWxD): 240mm x 160mm x 162mm
- Depth with Switch: 200mm
Why Choose This Product?
The Niglon CS804P Manual Changeover Switch is a high-quality power control device, offering safe and reliable power transitions in demanding environments. Its polycarbonate-enclosed housing, IP65 protection, and precise manual operation make it a trusted choice for industrial and commercial power distribution systems.
