Description

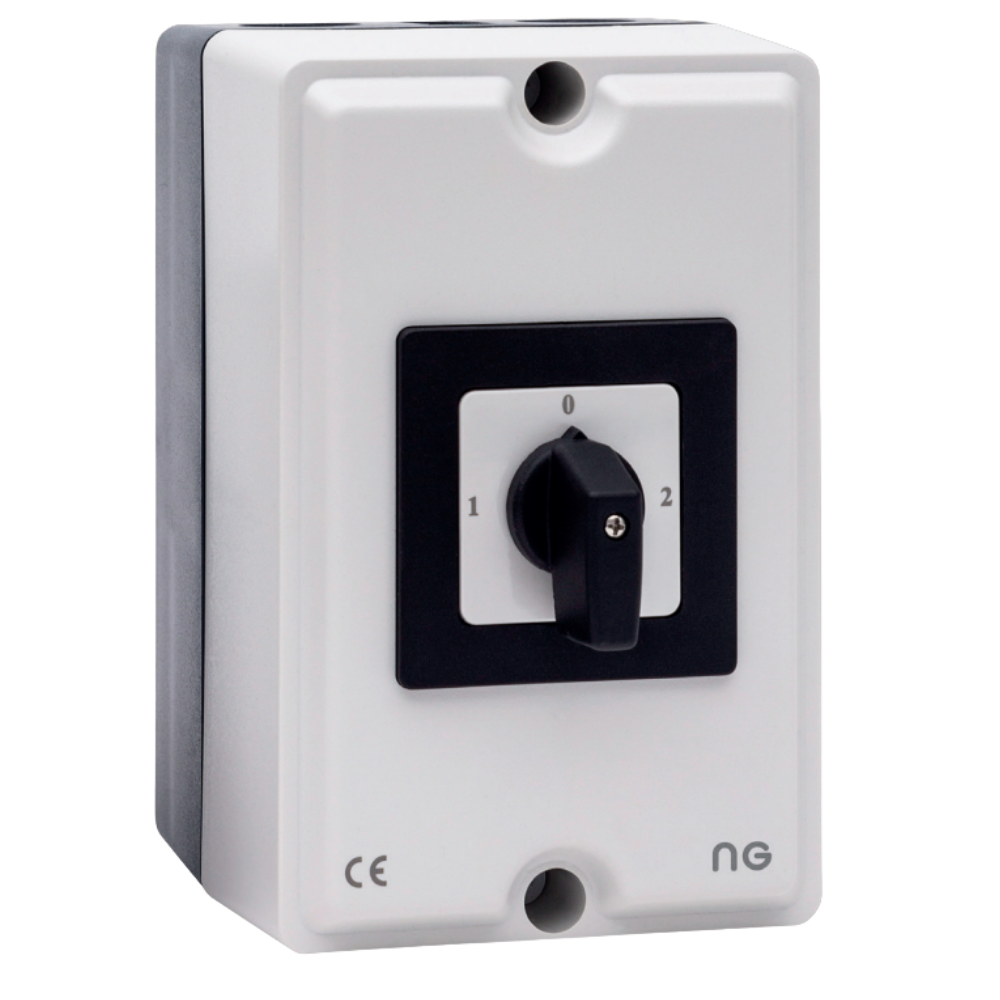

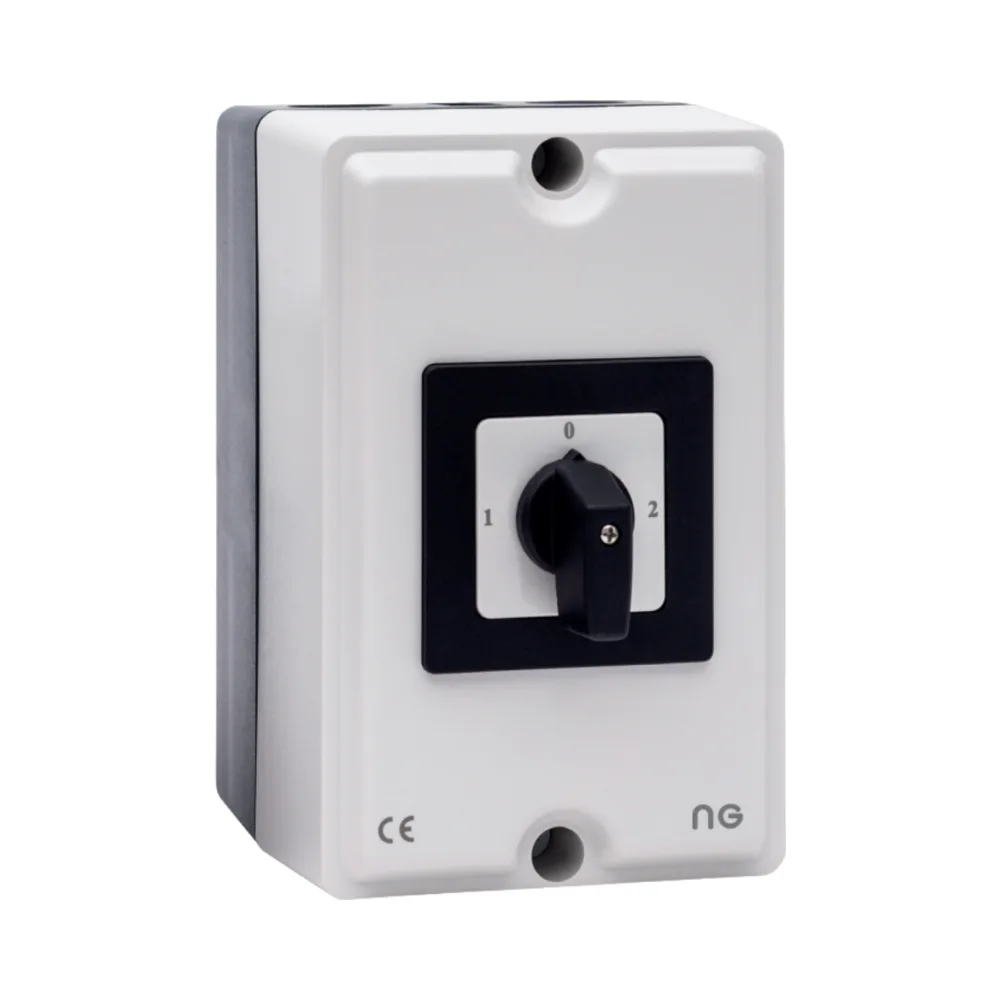

63A 440V IP65 Insulated Changeover Switch
Niglon CS634P – Industrial Power Control Solution
The Niglon CS634P IP65 Insulated Changeover Switch is a high-performance industrial power switching solution, designed to safely transition between power sources in industrial, commercial, and heavy-duty applications. Featuring a four-pole configuration, this switch ensures secure three-phase power distribution with a neutral connection, making it ideal for backup systems and machinery control.
With an IP65-rated enclosure, this insulated changeover switch provides exceptional protection against dust and water ingress, ensuring reliable operation in demanding environments. Built to EN60947-3 standards, it offers a high short-time withstand current, guaranteeing safe and efficient power management.
Key Features of the Niglon CS634P 63A 440V IP65 Insulated Changeover Switch
- IP65 Rated – Provides superior dust and water resistance, ideal for industrial applications
- 63A, 440V – Designed for high-power switching operations
- 4-Pole Configuration – Ensures secure three-phase power distribution with a neutral connection
- Durable Insulated Enclosure – Enhances safety and impact resistance
- Seamless Changeover Mechanism – Enables smooth power transitions
- Compact and Robust Design – Space-efficient and built for long-term durability
- Certified to EN60947-3 Standards – Ensures safe and compliant operation
Technical Specifications
- Product Code: CS634P
- Rated Current: 63A
- Rated Voltage (Ue): 440V
- Rated Insulation Voltage (Ui): 690V
- Number of Poles: 4 (Three-Phase + Neutral)
- Rated Operating Current:
- AC-22A: 63A
- AC-23A: 63A
- AC-3: 50A
- Rated Power Control: 22kW
- Rated Short-Time Withstand Current (Icw): 2000A
- Connect Wire Size: 16mm²
- Screw Torque: 2 N.m
- Enclosure Colour: Upper cover RAL 9002, Bottom case RAL 7031
- Dimensions: 176mm (H) x 116mm (W) x 101mm (D)
- Depth with Switch: 140mm
Why Choose This Product?
The Niglon CS634P Changeover Switch is a trusted industrial-grade power management solution, providing safe and efficient switching between power sources. With a rugged insulated enclosure, IP65 protection, and a smooth changeover mechanism, it is an ideal choice for high-demand industrial environments.
