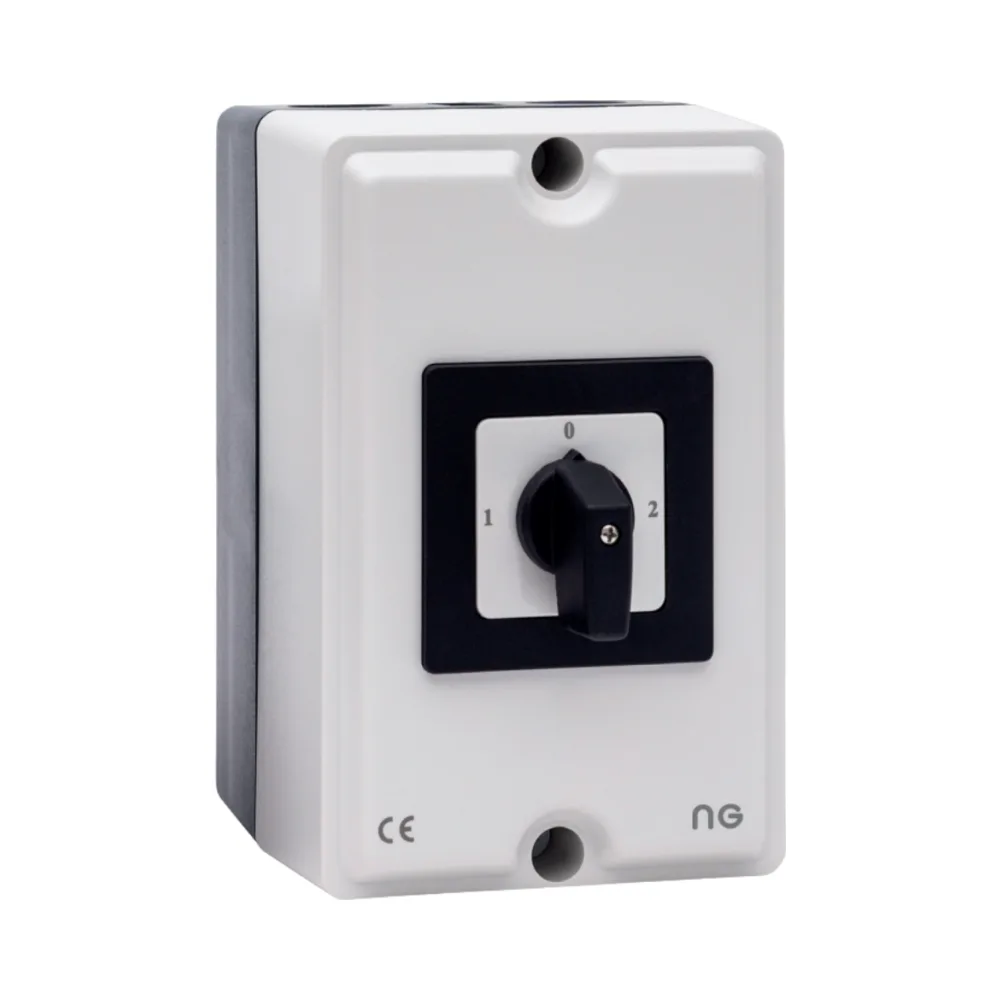

40A 440V IP65 Insulated Changeover Switch
Niglon CS404P – Industrial Power Control Solution
The Niglon CS404P IP65 Insulated Changeover Switch is a heavy-duty power control solution, designed for safe and efficient switching between power sources in industrial and commercial environments. This four-pole changeover switch ensures reliable power continuity, making it ideal for backup power systems, machinery, and distribution networks.
With an IP65-rated enclosure, this switch provides superior protection against dust and water ingress, ensuring durability in harsh conditions. Built to EN60947-3 standards, the CS404P changeover switch offers high short-time withstand current, making it a secure and robust choice for demanding electrical installations.
Key Features of the Niglon CS404P 40A 440V IP65 Changeover Switch
- IP65 Rated – Protects against dust and water, ideal for industrial applications
- 40A, 440V – Designed for high-power industrial switching
- 4-Pole Configuration – Supports three-phase power distribution with a neutral connection
- Durable Insulated Enclosure – Ensures impact resistance and electrical safety
- Smooth Changeover Mechanism – Allows seamless switching between power sources
- Compact and Robust Design – Provides long-lasting durability
- Certified to EN60947-3 Standards – Ensures safe and compliant operation
Technical Specifications
- Product Code: CS404P
- Rated Current: 40A
- Rated Voltage (Ue): 440V
- Rated Insulation Voltage (Ui): 690V
- Number of Poles: 4 (Three-Phase + Neutral)
- Rated Operating Current (AC-22A): 40A
- Rated Operating Current (AC-23A): 40A
- Rated Operating Current (AC-3): 32A
- Rated Power Control: 15kW
- Rated Short-Time Withstand Current (Icw): 800A
- Connect Wire Size: 10mm²
- Screw Torque: 1.2 N.m
- Enclosure Colour: Upper cover RAL 9002, Bottom case RAL 7031
- Dimensions: 176mm (H) x 116mm (W) x 101mm (D)
- Depth with Switch: 140mm
Why Choose This Product?
The Niglon CS404P Changeover Switch is a trusted solution for secure power transfer, offering a rugged design, IP65 protection, and high short-time withstand current. Its compact build and smooth operation make it ideal for backup power systems, machinery control, and distribution networks in industrial settings.
