Description

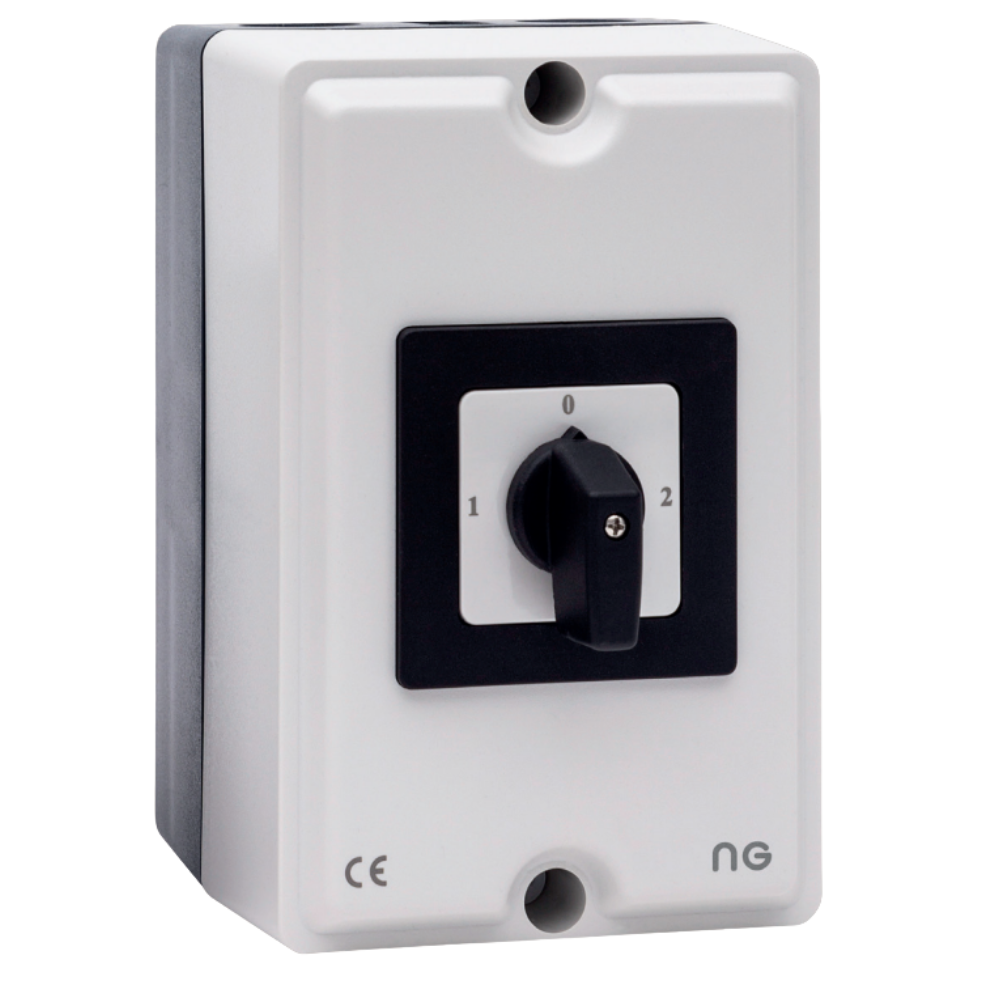

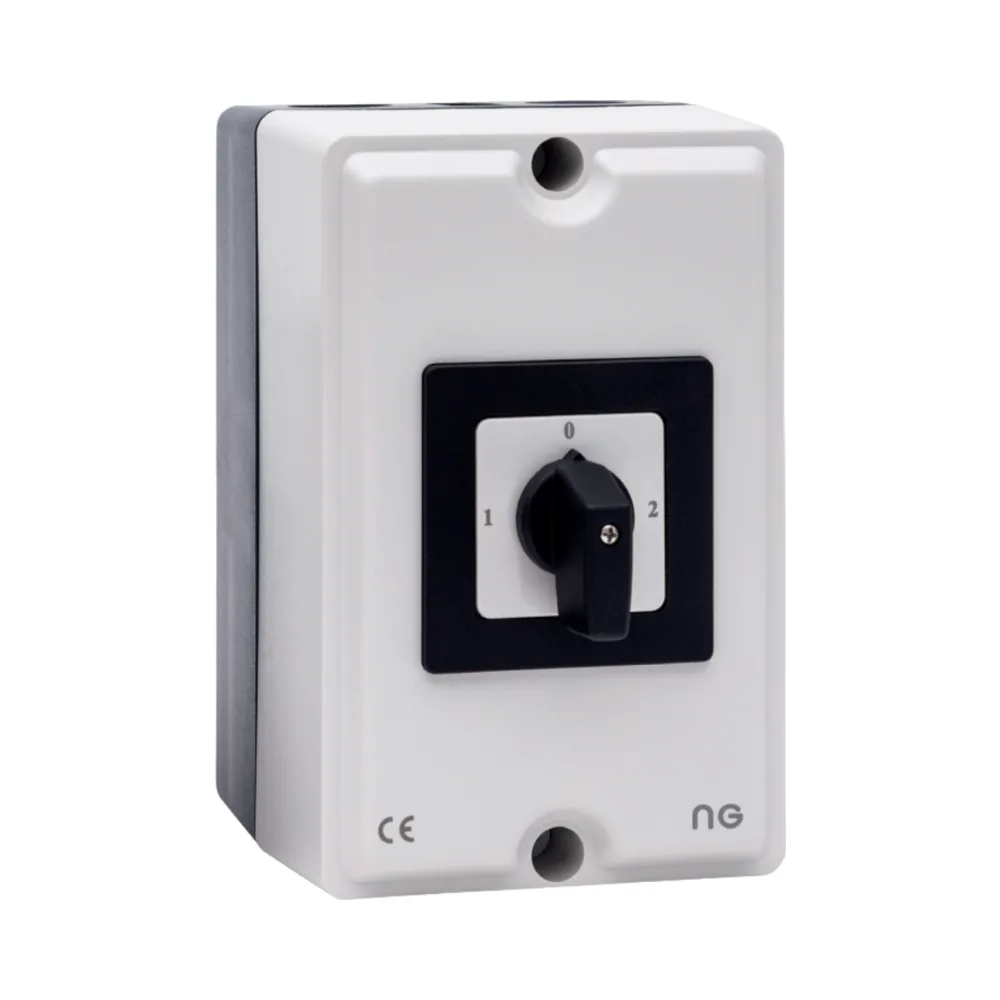

20A 440V IP65 Insulated Changeover Switch
Niglon CS204P – Industrial Power Control Solution
The Niglon CS204P IP65 Insulated Changeover Switch is a high-performance power control device, designed for secure and efficient electrical switching in industrial applications. This four-pole switch allows for seamless transition between power sources, ensuring uninterrupted operation in demanding environments.
With an IP65-rated enclosure, the CS204P changeover switch is built to withstand dust, water exposure, and harsh conditions, making it suitable for industrial, commercial, and outdoor electrical installations. Its rugged construction, coupled with compliance to EN60947-3 standards, ensures long-lasting durability and operational reliability.
Key Features of the Niglon CS204P 20A 440V IP65 Insulated Changeover Switch
- IP65 Rated – Protects against dust and water, ideal for industrial environments
- 20A, 440V Rated Power – Designed for heavy-duty power control applications
- 4-Pole Configuration – Supports three-phase power distribution with a neutral connection
- Durable Insulated Enclosure – Provides high impact resistance and electrical insulation
- Smooth Changeover Mechanism – Ensures seamless switching between power sources
- Compact and Robust Design – Space-efficient while offering maximum durability
- Certified to EN60947-3 Standards – Guarantees safe and compliant operation
Technical Specifications
- Product Code: CS204P
- Rated Current: 20A
- Rated Voltage (Ue): 440V
- Rated Insulation Voltage (Ui): 690V
- Number of Poles: 4 (Three-Phase + Neutral)
- Rated Operating Current (AC-22A): 20A
- Rated Operating Current (AC-23A): 20A
- Rated Operating Current (AC-3): 16A
- Rated Power Control: 5.5kW
- Rated Short-Time Withstand Current (Icw): 320A
- Connect Wire Size: 2.5mm²
- Screw Torque: 0.8 N.m
- Enclosure Colour: Upper cover RAL 9002, Bottom case RAL 7031
- Dimensions: 126mm (H) x 101mm (W) x 86mm (D)
- Depth with Switch: 120mm
Why Choose This Product?
The Niglon CS204P Changeover Switch is a rugged and reliable power control solution, providing safe and efficient switching between power sources. Its IP65-rated enclosure, high short-time withstand current, and smooth changeover mechanism make it ideal for industrial and commercial installations where operational continuity is critical.
