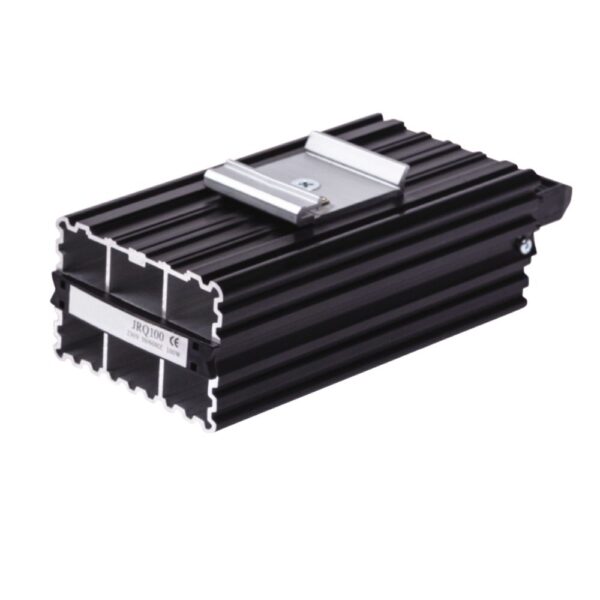

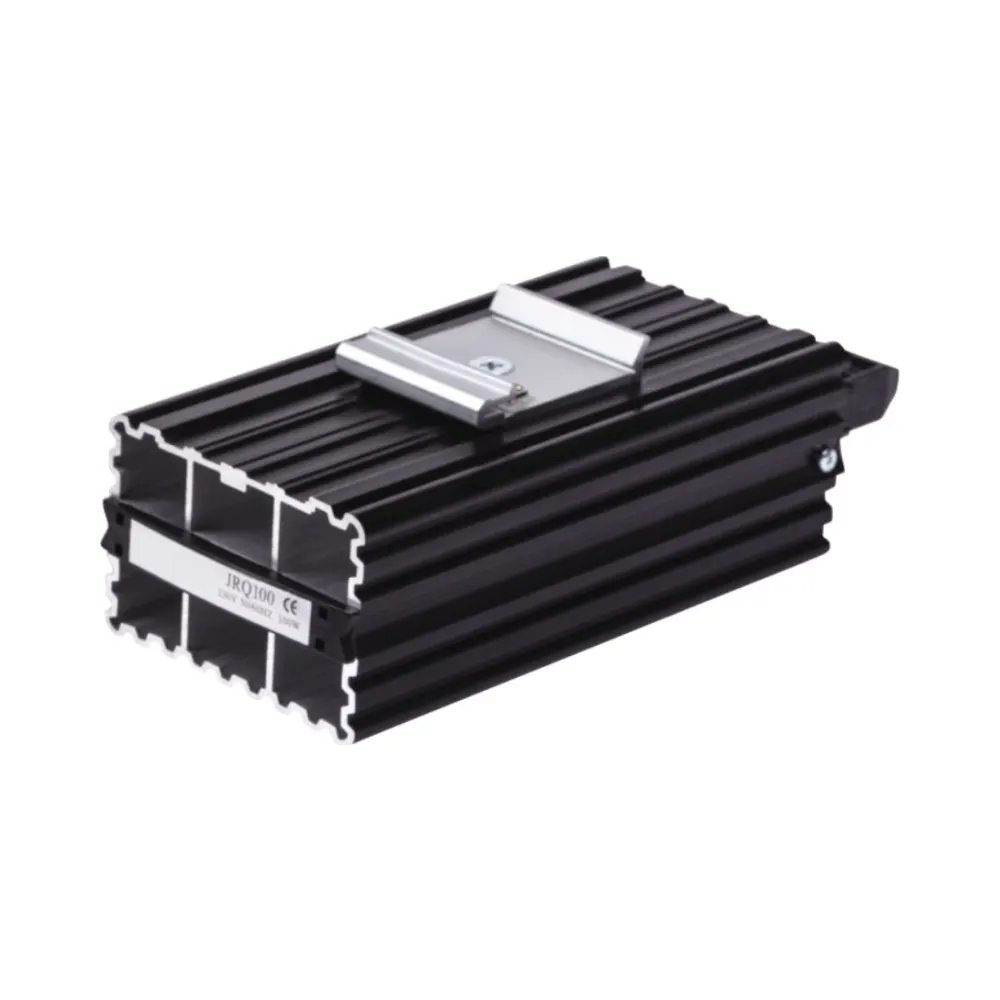

15W Passive Panel Heater
Niglon CH15W
Compact Moisture Control Solution for Control Panels – Niglon CH15W 15W Passive Panel Heater
The Niglon CH15W Passive Heater is designed for effective moisture prevention within control panels. Featuring a self-adjusting PTC heating element, it ensures consistent heat distribution while maintaining energy efficiency. The aluminium housing facilitates stable heat release, while the quick-connect terminals allow for fast and secure installation. This compact and lightweight heater is ideal for industrial and automation applications, ensuring optimal conditions for sensitive electrical components.
Key Features
- Provides 15W heat output at 20°C for moisture control
- Operates at 230V AC, 50/60 Hz with a maximum current of 1.5A
- Self-regulating PTC heating element for reliable performance
- Constructed from high-quality aluminium for efficient heat distribution
- Compact size: 70mm width, 109mm height, and 50mm depth
- Quick-connect terminals for easy and secure wiring
- IP20 ingress protection, suitable for indoor electrical enclosures
- Operates within -45°C to +70°C, handling extreme conditions
- DIN rail mounting for secure and simple installation
Technical Specifications of the Niglon CH15W 15W Passive Panel Heater
- Rated Voltage: 230V AC, 50/60 Hz
- Maximum Current: 1.5A
- Heat Output: 15W at 20°C
- Dimensions (W x H x D): 70mm x 109mm x 50mm
- Construction Material: Aluminium
- Heating Element: PTC, self-adjusting
- Connection Type: Quick Connect
- Terminal Capacity: 2.5mm²
- Operating/Storage Temperature: -45°C to +70°C
- Ingress Protection: IP20
- Weight: 200g
Why Choose Niglon?
- Trusted brand in electrical and automation solutions
- High-quality, durable components for long-term reliability
- Optimised for control panels, ensuring moisture prevention and temperature regulation
- Easy installation with quick-connect terminals for fast and secure wiring
More Information
This product is for use by skilled or instructed persons and must be installed following IEE regulations. All terminals, including factory-fitted ones, should be checked for tightness before commissioning and periodically maintained.
For further details or product availability, contact Niglon or refer to the official Niglon catalogue and technical documentation.
