Description

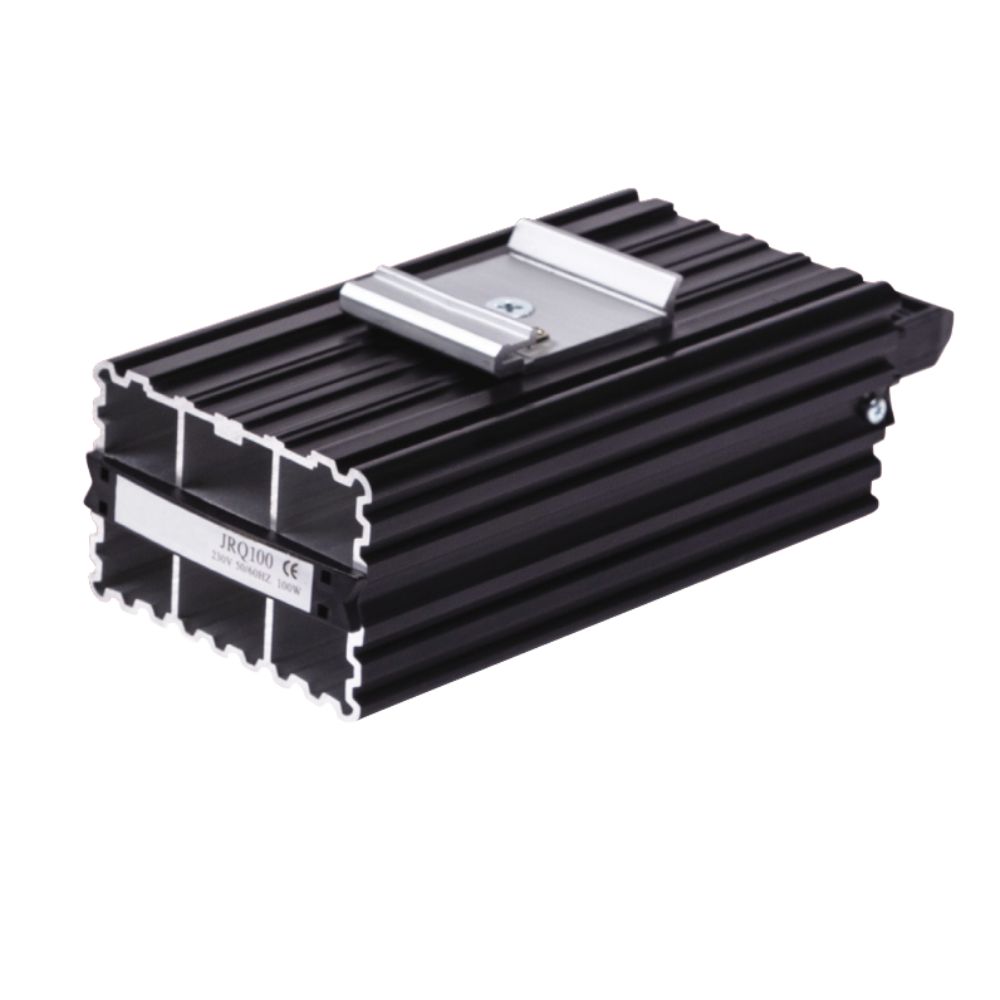

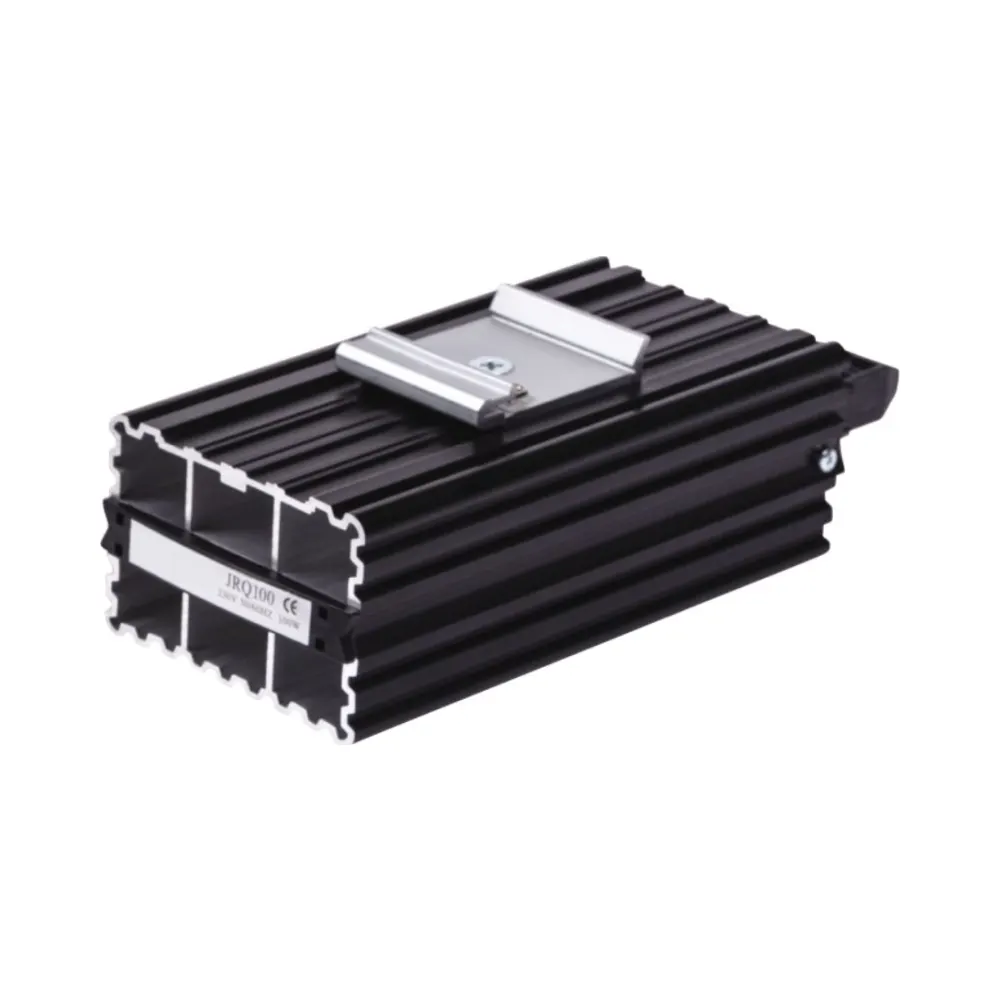

100W Passive Panel Heater
Niglon CH100W
Effective Moisture Control for Control Panels – Niglon CH100W 100W Passive Panel Heater
The Niglon CH100W Passive Heater is designed to prevent condensation and regulate temperature within control panels. Using a self-adjusting PTC heating element, it ensures consistent and efficient heat distribution. The aluminium housing provides a stable release of heat, while the quick-connect terminals enable fast and secure installation. Suitable for industrial and automation applications, this compact heater helps maintain optimal operating conditions for sensitive electrical components.
Key Features
- Provides 100W heat output at 20°C for moisture control
- Operates at 230V AC, 50/60 Hz with a maximum current of 4.5A
- Features a self-regulating PTC heating element for consistent performance
- Constructed from high-quality aluminium for efficient heat distribution
- Compact design: 70mm width, 184mm height, and 50mm depth
- Quick-connect terminals for easy and secure wiring
- IP20 ingress protection, suitable for indoor electrical enclosures
- Operates within -45°C to +70°C for extreme conditions
Technical Specifications of the Niglon CH100W 100W Passive Panel Heater
- Rated Voltage: 230V AC, 50/60 Hz
- Maximum Current: 4.5A
- Heat Output: 100W at 20°C
- Dimensions (W x H x D): 70mm x 184mm x 50mm
- Construction Material: Aluminium
- Heating Element: PTC, self-adjusting
- Connection Type: Quick Connect
- Terminal Capacity: 2.5mm²
- Operating/Storage Temperature: -45°C to +70°C
- Ingress Protection: IP20
- Weight: 360g
Why Choose Niglon?
- Trusted manufacturer of electrical and automation solutions
- High-quality, durable components designed for industrial environments
- Optimised for control panels, ensuring moisture prevention and temperature regulation
- Easy installation with quick-connect terminals for fast and secure wiring
More Information
This product is for use by skilled or instructed persons and must be installed following IEE regulations. All terminals, including factory-fitted ones, should be checked for tightness before commissioning and periodically maintained.
For further details or product availability, contact Niglon or refer to the official Niglon catalogue and technical documentation.
