Description

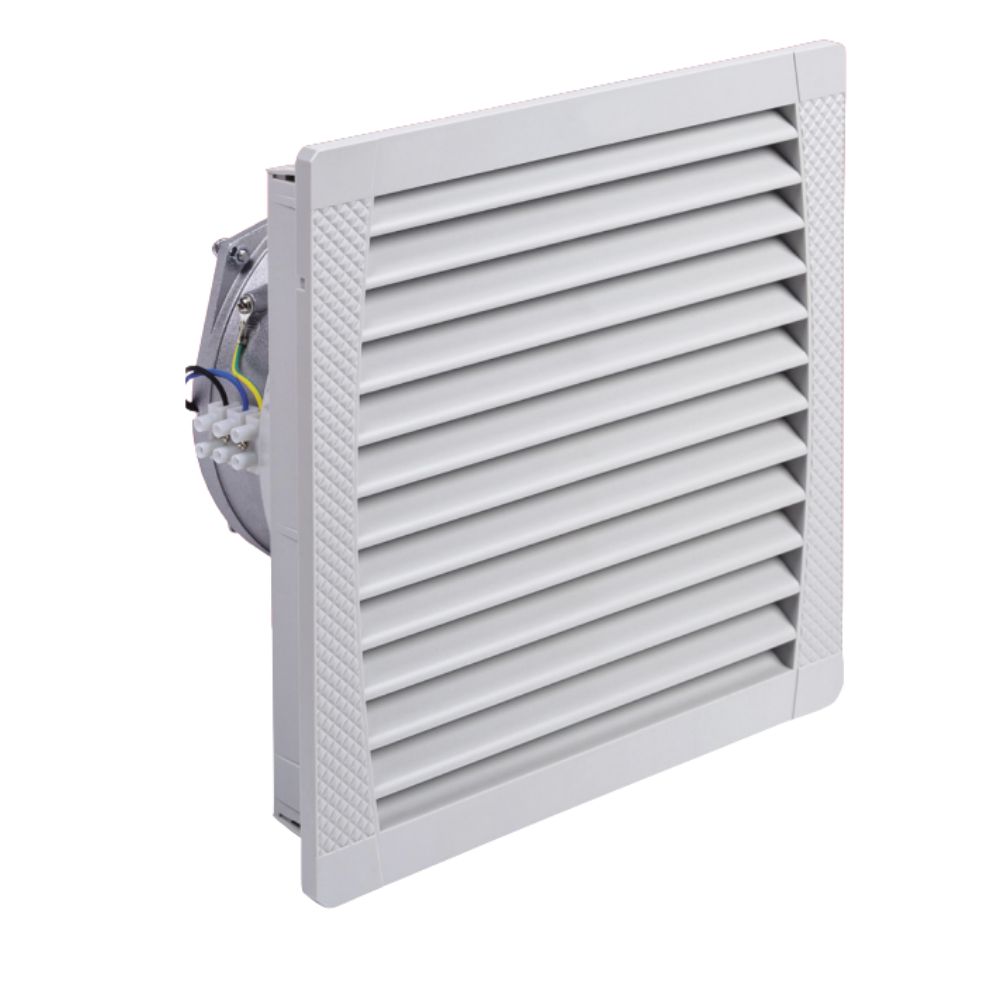

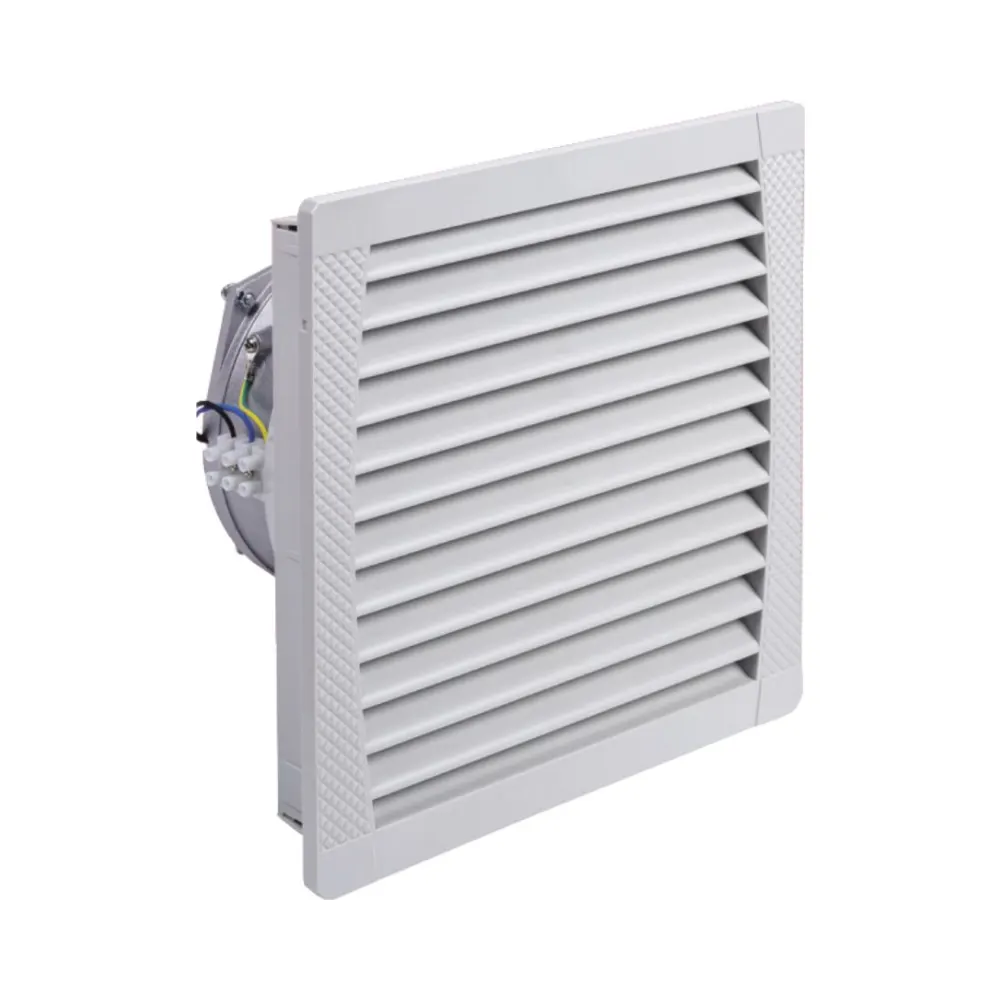

65W Panel Fan with Filter
Niglon CF55320
High-Performance 65W Panel Fan for Control Panel Cooling – Niglon CF55320 65W Panel Fan with Filter
The Niglon CF55320 Fan with Filter is a powerful cooling solution for control panels, designed to regulate temperature by drawing in filtered external air and expelling heat. This axial fan operates at 65W, delivering high airflow while maintaining low noise levels. With a robust ABS construction, an IP54 ingress protection rating, and an efficient snap-on mounting system, it ensures long-lasting performance in industrial and automation environments.
Key Features
- Operates at 250V AC, 50/60 Hz, with a rated power of 65W
- Provides airflow of 500/560 m³/h (free air) and 360/390 m³/h (filtered air)
- Low noise output of 62 dB, ensuring quiet operation
- Compact 320mm x 320mm design with a depth of 71mm behind the panel
- Snap-on installation guides for quick and secure mounting
- IP54 ingress protection, suitable for industrial applications
- Constructed from high-quality ABS material for durability
- Standard RAL7035 colour, blending seamlessly with control panels
Technical Specifications of the Niglon CF55320 65W Panel Fan with Filter
- Rated Voltage: 250V AC, 50/60 Hz
- Rated Current: 0.29A
- Rated Power: 65W
- Dimensions (W x H x D): 320mm x 320mm x 71mm
- Airflow (Free Air): 500/560 m³/h
- Airflow (Filtered): 360/390 m³/h
- Noise Level: 62 dB
- Operating Temperature Range: -10°C to +55°C
- Ingress Protection: IP54
- Material: ABS
- Weight: 2.8kg
Why Choose Niglon?
- Trusted brand in electrical and automation solutions
- High-quality, durable components for long-term reliability
- Optimised for industrial applications, ensuring effective cooling and ventilation
- Easy installation with snap-on guides for quick setup
Available Accessories (not included)
- Filter Only: CFX320
- Thermostat NO: CT60NO
- Thermostat NC: CT60NC
- Thermostat NO + NC: CT60DUAL
More Information
This product is for use by skilled or instructed persons and must be installed following IEE regulations. All terminals, including factory-fitted ones, should be checked for tightness before commissioning and periodically maintained.
For further details or product availability, contact Niglon or refer to the official Niglon catalogue and technical documentation.
