Description
36W Panel Fan with Filter
Niglon CF55250

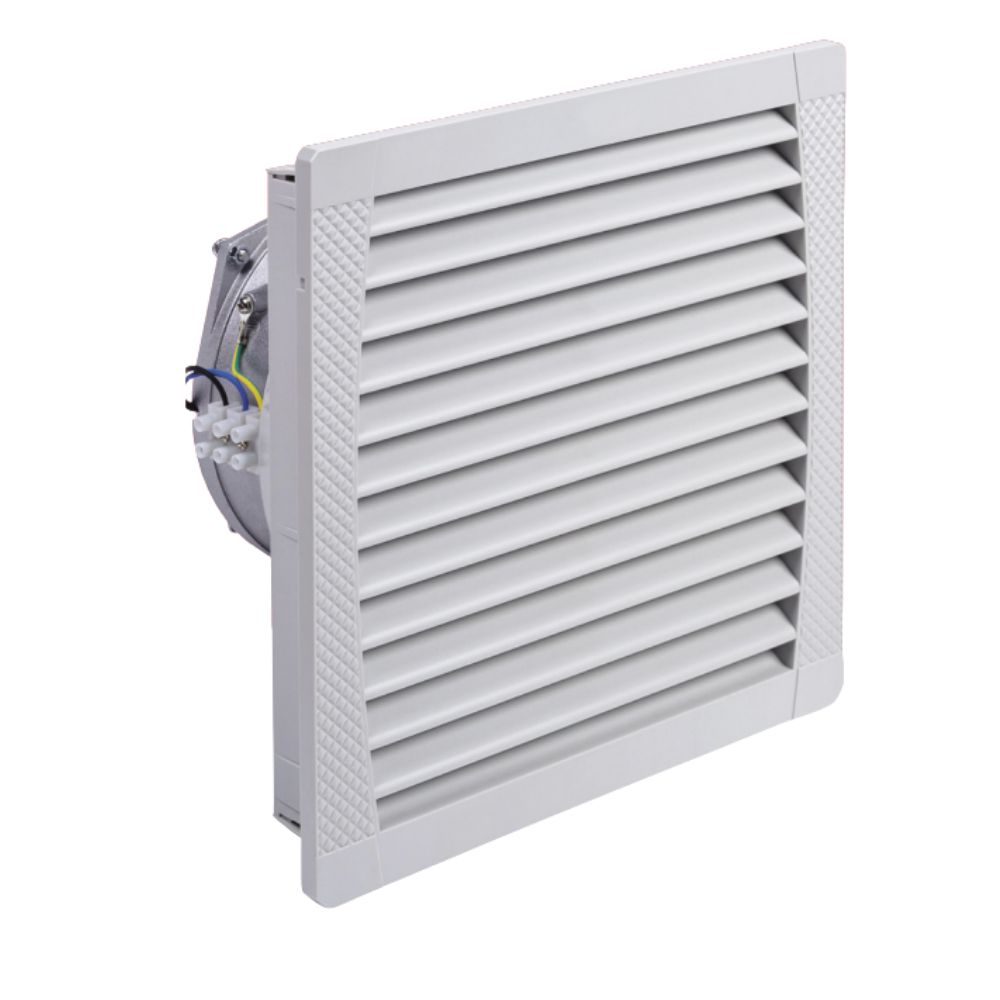

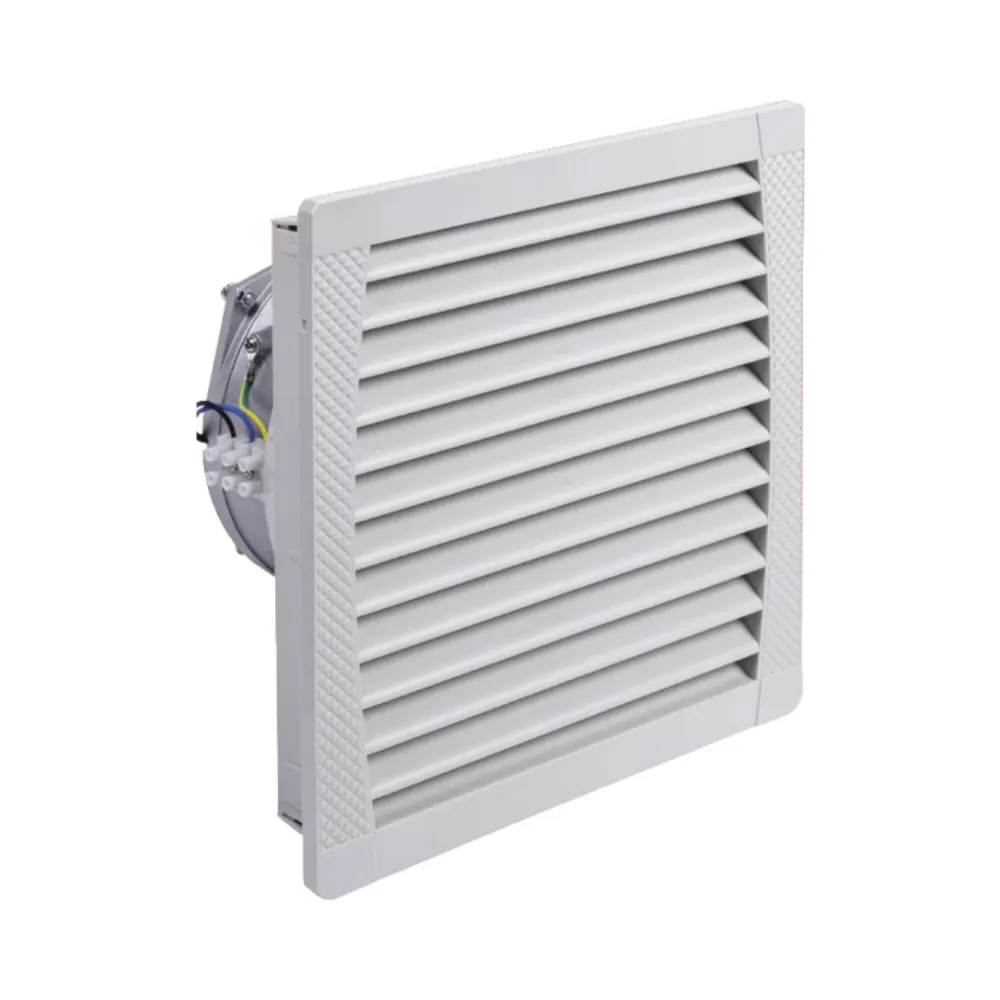

High-Performance Cooling Solution for Control Panels – Niglon CF55250 36W Panel Fan with Filter
The Niglon CF55250 36W Panel Fan with Filter is designed to efficiently regulate temperature in control panels by drawing in filtered external air and expelling heat. This axial fan delivers high airflow with low noise, ensuring optimal cooling performance for industrial and automation applications. With a durable ABS construction, an IP54 ingress protection rating, and a compact design, it provides long-lasting and reliable operation in demanding environments.
Key Features
- Operates at 250V AC, 50/60 Hz, with a rated power of 36W
- Provides airflow of 230/265 m³/h (free air) and 170/205 m³/h (filtered air)
- Low noise output of 58 dB, ensuring quiet operation
- Compact 250mm x 250mm design with a depth of 71mm behind the panel
- Snap-on installation guides for quick and easy mounting
- IP54 ingress protection, suitable for industrial settings
- Constructed from high-quality ABS material for durability
Technical Specifications of the Niglon CF55250 36W Panel Fan with Filter
- Rated Voltage: 250V AC, 50/60 Hz
- Rated Current: 0.25A
- Rated Power: 36W
- Dimensions (W x H x D): 250mm x 250mm x 71mm
- Airflow (Free Air): 230/265 m³/h
- Airflow (Filtered): 170/205 m³/h
- Noise Level: 58 dB
- Operating Temperature Range: -10°C to +55°C
- Ingress Protection: IP54
- Material: ABS
- Weight: 2.21kg
Why Choose Niglon?
- Trusted brand in electrical and automation solutions
- High-quality, durable components for long-term reliability
- Optimised for industrial applications, ensuring effective cooling and ventilation
- Easy installation with snap-on guides for quick setup
Available Accessories (not ncluded)
- Filter Only: CFX250
- Thermostat NO: CT60NO
- Thermostat NC: CT60NC
- Thermostat NO + NC: CT60DUAL
More Information
This product is for use by skilled or instructed persons and must be installed following IEE regulations. All terminals, including factory-fitted ones, should be checked for tightness before commissioning and periodically maintained.
For further details or product availability, contact Niglon or refer to the official Niglon catalogue and technical documentation.
