Description

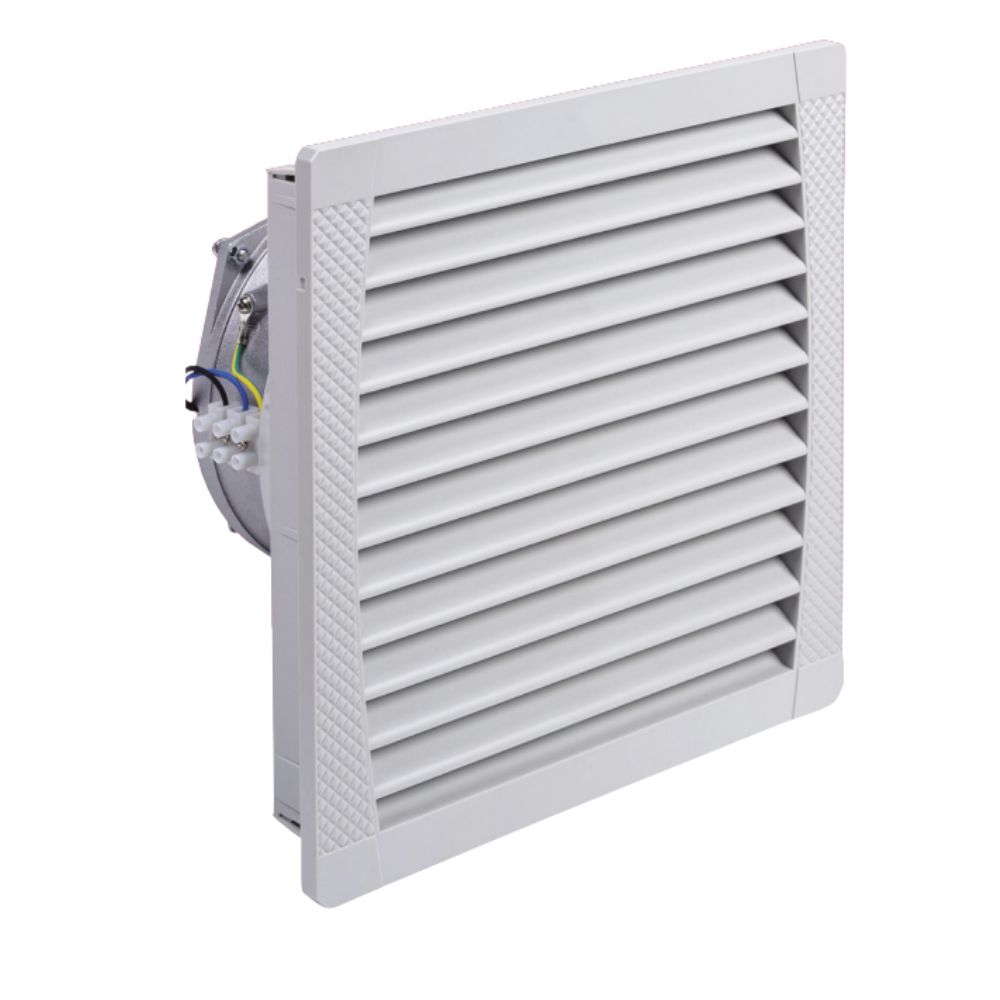

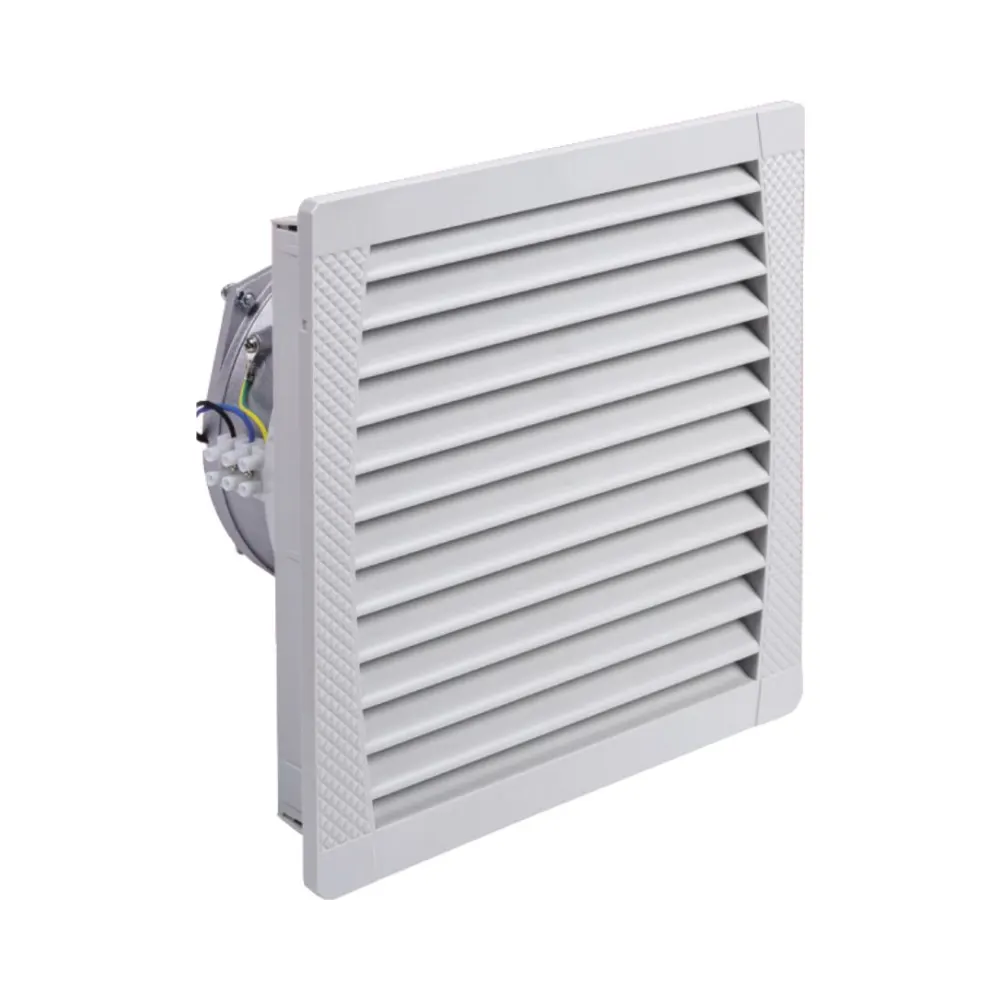

19W Panel Fan with Filter
Niglon CF55145
Efficient Cooling Solution for Control Panels – Niglon CF55145 19W Panel Fan with Filter
The Niglon CF55145 19W Panel Fan with Filter is designed for effective ventilation in control panels, ensuring optimal operating conditions by drawing in filtered air and expelling heat. This compact axial fan provides reliable airflow while maintaining low noise levels, making it an ideal choice for industrial and automation applications. Built with a durable ABS housing and an IP54 ingress protection rating, it offers long-lasting performance in various environments.
Key Features
- Operates at 250V AC, 50/60 Hz, with a rated power of 19W
- Provides airflow of 55/66 m³/h (free air) and 43/50 m³/h (filtered air)
- Low noise levels at 43/50 dB, ensuring quiet operation
- Compact 145mm x 145mm design with a depth of 71mm behind the panel
- Snap-on installation guides for easy mounting
- Ingress protection rating of IP54, suitable for industrial environments
- Constructed from high-quality ABS material for durability
Technical Specifications of the Niglon CF55145 19W Panel Fan with Filter
- Rated Voltage: 250V AC, 50/60 Hz
- Rated Current: 0.12A
- Rated Power: 19W
- Dimensions (W x H x D): 145mm x 145mm x 71mm
- Airflow (Free Air): 55/66 m³/h
- Airflow (Filtered): 43/50 m³/h
- Noise Level: 43/50 dB
- Operating Temperature Range: -10°C to +55°C
- Ingress Protection: IP54
- Material: ABS
- Weight: 1.45kg
Why Choose Niglon?
- Trusted brand in electrical and automation solutions
- High-quality, durable components for long-term reliability
- Optimised for industrial applications, ensuring effective cooling and ventilation
- Easy installation with snap-on guides for quick setup
Available Accessories (not included)
- Filter Only: CFX145
- Thermostat NO: CT60NO
- Thermostat NC: CT60NC
- Thermostat NO + NC: CT60DUAL
More Information
This product is designed for use by skilled or instructed persons and must be installed following IEE regulations. All terminals, including factory-fitted ones, should be checked for tightness before commissioning and periodically maintained.
For further details or product availability, contact Niglon or refer to the official Niglon catalogue and technical documentation.
