Description
400A Busbar Chamber – 400A Fully Rated & Certified Steel Enclosure
Reliable 400A Busbar Chamber for Secure Power Distribution

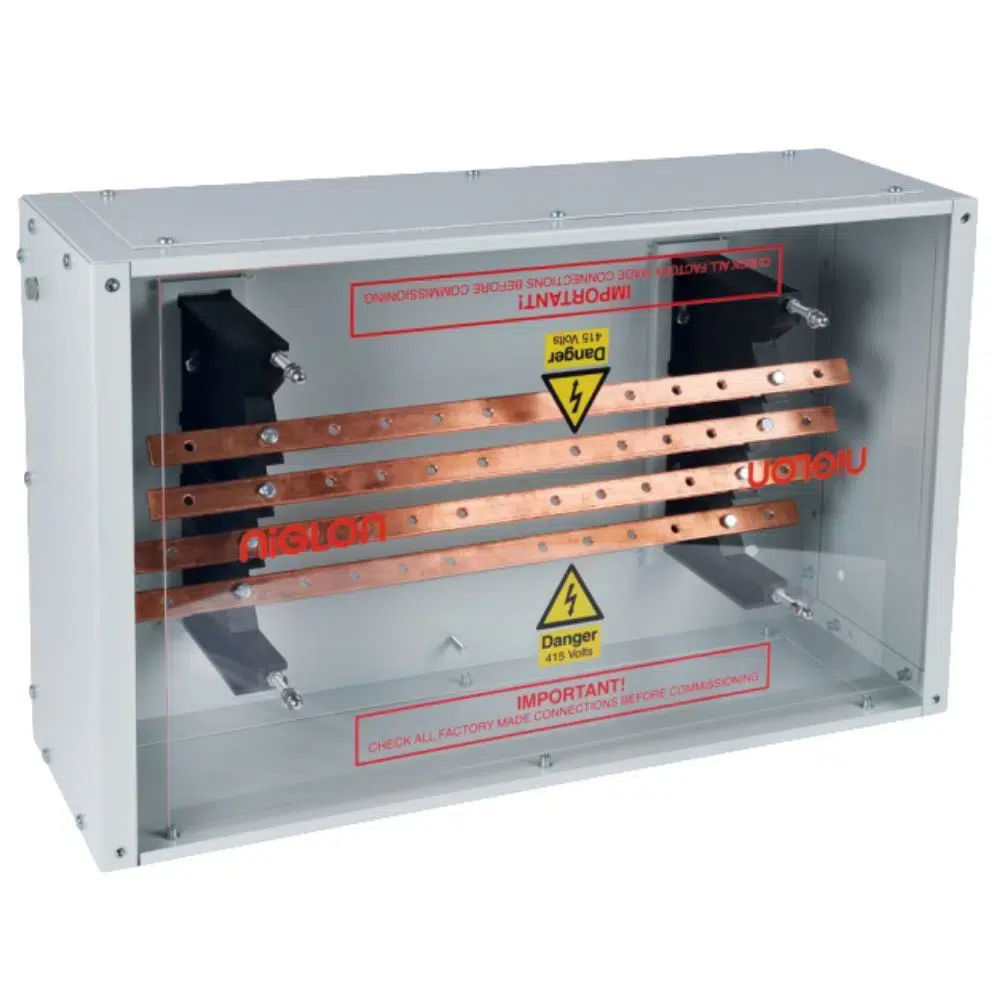

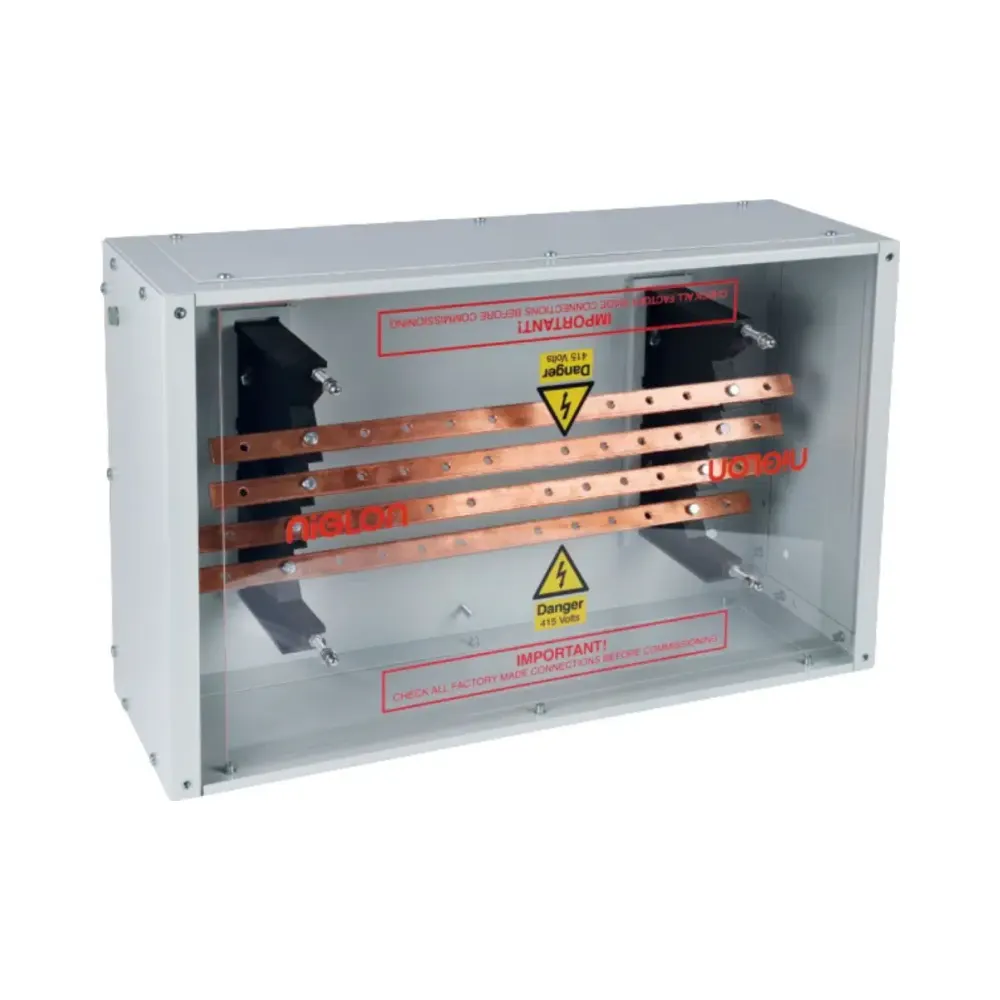

Niglon BBC4034
The Niglon BBC4034 Busbar Chamber is a fully certified and high-capacity power distribution solution, designed for 400A applications. Its mild steel enclosure enhances durability, while the top and bottom blank gland plates ensure a secure wiring setup. Additionally, the removable side panels make installation and maintenance easier.
With M6.5 holes at 50mm spacing for cable lug connections, this IP41-rated chamber ensures safe and efficient indoor power distribution. It is specifically designed to work seamlessly with Niglon switch isolators and switch fuses, making it an excellent choice for commercial and industrial electrical installations.
Key Features & Technical Specifications of the Niglon BBC4034 400A Busbar Chamber
- Model: BBC4034
- Standards Compliance: BS EN 61439-3
- Rated Amperage: 400A
- Rated Voltage: 415V
- Material: Mild Steel
- IP Rating: IP41 (Indoor use only)
- Cable Lug Connection Hole Size: 6mm
- Busbar Holes: M6.5 at 50mm spacing
- Width: 900mm
- Height: 380mm
- Depth: 200mm
- Weight: 22 Kg
- Internal Supports: 3
- Panel Fixing: Keyhole slots for easy installation
- Compatible with: Niglon switch isolators and switch fuses
Connection Kits (Sold Separately)
Each kit includes 4 lugs, 4 bolts, 4 nuts, and 8 washers, ensuring a secure connection for different cable sizes:
- BBCKIT-10/M6 – 10mm busbar cable kit for 200/400A
- BBCKIT-16/M6 – 16mm busbar cable kit for 200/400A
- BBCKIT-25/M6 – 25mm busbar cable kit for 200/400A
- BBCKIT-35/M6 – 35mm busbar cable kit for 200/400A
- BBCKIT-50/M6 – 50mm busbar cable kit for 200/400A
- BBCKIT-70/M6 – 70mm busbar cable kit for 200/400A
- BBCKIT-95/M6 – 95mm busbar cable kit for 200/400A
Why Choose the Niglon BBC4034 Busbar Chamber?
- Fully Certified & Compliant – Meets BS EN 61439-3 standards for safety and performance.
- Durable Steel Enclosure – Provides robust protection for high-power applications.
- Simplified Installation – Features removable side panels and keyhole slot fixing for quick access.
- Optimised Power Distribution – Designed for 400A applications, ensuring efficiency and reliability.
- Wide Compatibility – Works with Niglon switch isolators and switch fuses for seamless integration.
Order the Niglon BBC4034 Busbar Chamber Today
The Niglon BBC4034 Busbar Chamber delivers high-performance, fully rated power distribution for 400A applications. Its durable steel enclosure, flexible connection options, and removable side panels make it a reliable solution for commercial and industrial installations.
