Description

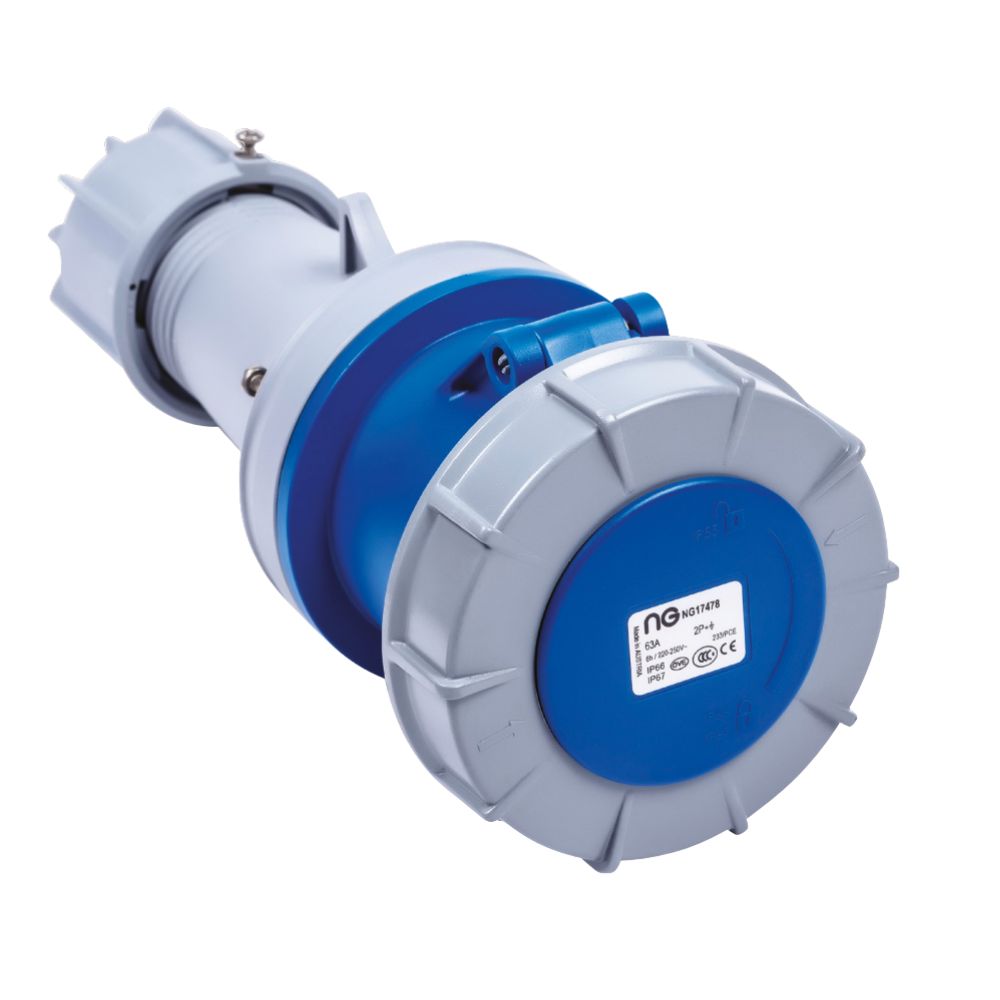

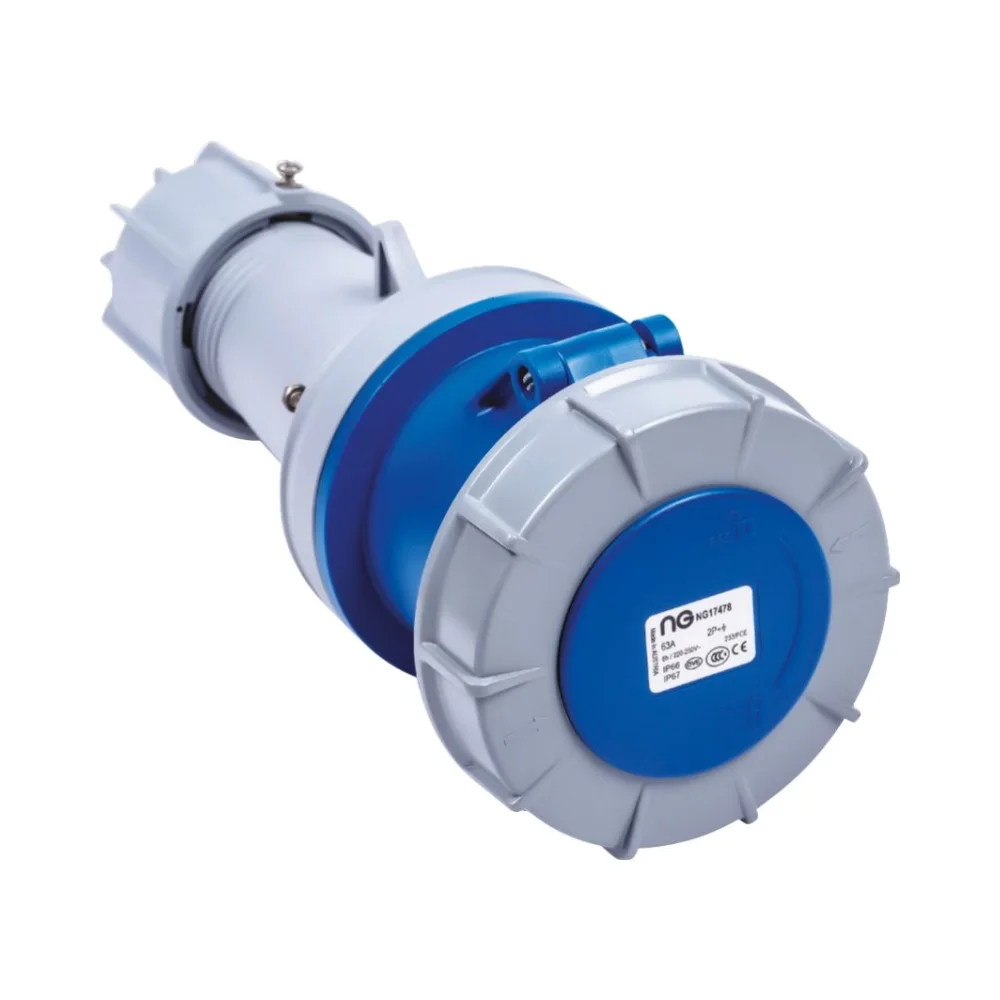

63A 230V IP67 In-Line Industrial Socket
Niglon 17478
Reliable 3 Pole Industrial Socket for Secure Power Connections
The Niglon 17478 IP67 in-line industrial socket is designed for high-performance power distribution in demanding industrial and commercial environments. With a 63A rating and 230V operation, this 2P+E (3 pole industrial socket) configuration ensures a secure and efficient electrical connection, making it ideal for heavy-duty applications.
Manufactured from high-quality PA6 housing and featuring brass contacts with CuBe lamellar technology, this socket provides enhanced conductivity and long-term durability. The IP67 protection rating ensures complete resistance to dust and water, making it suitable for outdoor and industrial use.
Key Features
- 63A capacity for high-power industrial and commercial applications
- 2P+E (3 pole industrial socket) configuration for secure single-phase power connections
- IP67 protection ensures full resistance against dust and water ingress
- Durable PA6 housing for impact resistance and longevity
- Brass contacts with CuBe lamellar design for enhanced conductivity and durability
- Secure cable clamping with a cable diameter range of 14.5–36mm
- High-strength contact screws with 200Ncm torque for safe and reliable wiring
- Compatible with flexible wires from 6–16mm²
Technical Specifications
- Amperage: 63A
- Voltage: 230V
- Pin Configuration: 2P + E (3 pole industrial socket)
- IP Rating: IP67
- Housing Material: PA6
- Contacts: Brass with CuBe lamellar contact
- Cable Diameter: 14.5–36mm
- Wire Size (Flexible): 6–16mm²
- Contact Screw Torque: 200Ncm
- Spanner Width (SW): 61mm
- Dimensions:
- A: 269mm
- B: 114mm
- Weight: 669g
- Certifications: OVE & CE
- Standards: BS EN 60309-1 & 2
Why Choose This Product?
The Niglon 17478 IP67 in-line industrial socket is a rugged and high-performance power connector, designed for secure and stable single-phase electrical connections. With superior ingress protection, durable PA6 housing, and high-quality brass contacts, this socket is the ideal choice for industrial, commercial, and outdoor applications where reliability is essential.
