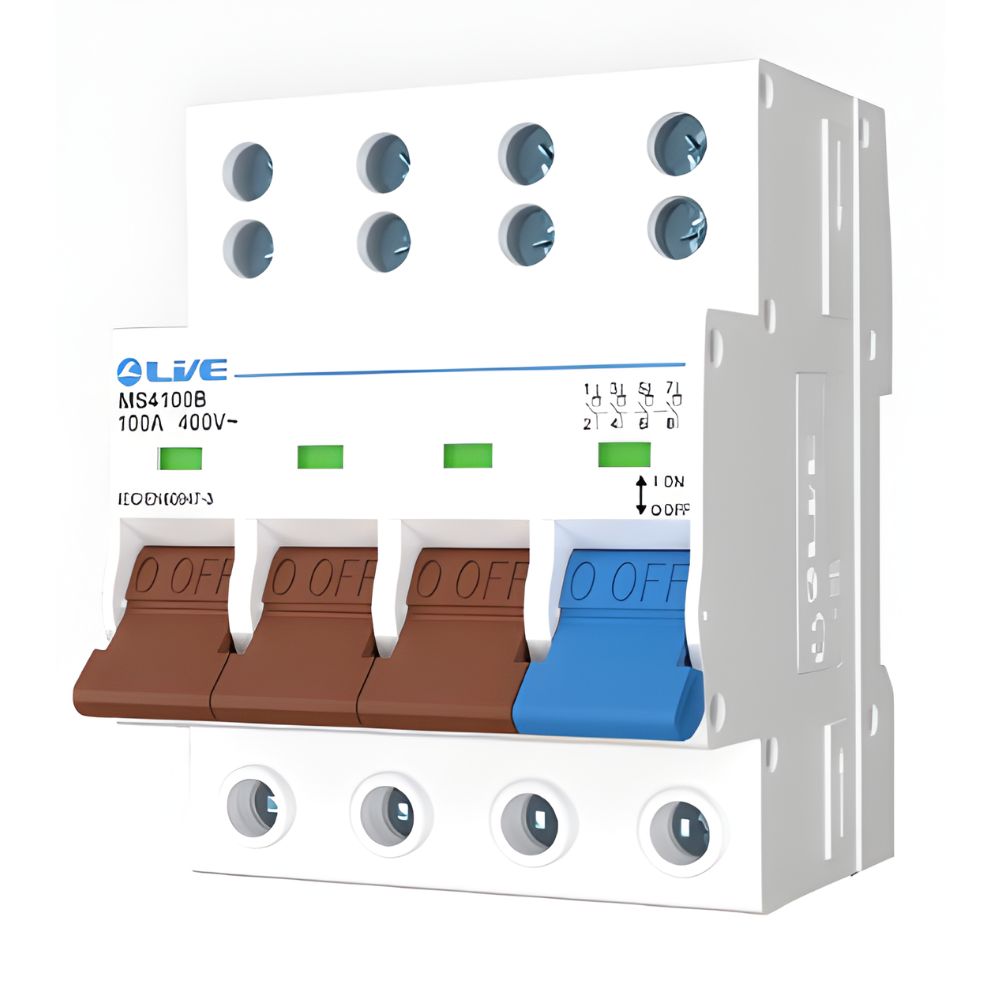

MS4100B 4 Pole 100A Main Switch Double Terminal
Three Phase Main Isolator with Busbar Connection Port
The MS4100B 4 pole 100A main switch double terminal is a robust isolator designed for three phase electrical distribution systems. It provides safe and reliable switching and isolation for commercial and industrial installations.
The double terminal design with twin screw incoming terminals enables secure, high integrity connections while allowing flexible wiring. This improves installation speed and ensures reliable performance in three phase systems.
With an integrated busbar connection port, the unit allows fast integration into distribution boards, making it ideal for modern electrical systems.
Manufactured to BS IEC/EN 60947-3 standards, the switch ensures durability and consistent performance in demanding environments.
Key Features
- 4 pole main switch isolator
- 100A rated current
- Double wiring terminal for flexible connections
- Twin screw incoming terminals for enhanced connection security
- Busbar connection port for quick installation
- Suitable for three phase applications
- Complies with BS IEC/EN 60947-3
- Terminal capacity up to 50mm²
Technical Specifications
- Model: MS4100B
- Type: Main Switch Isolator
- Poles: 4 Pole
- Rated Current: 100A
- Rated Voltage: 230/400V
- Terminal Type: Double terminal with twin screw incoming
- Terminal Capacity: 50mm²
- Standard: BS IEC/EN 60947-3
