Description

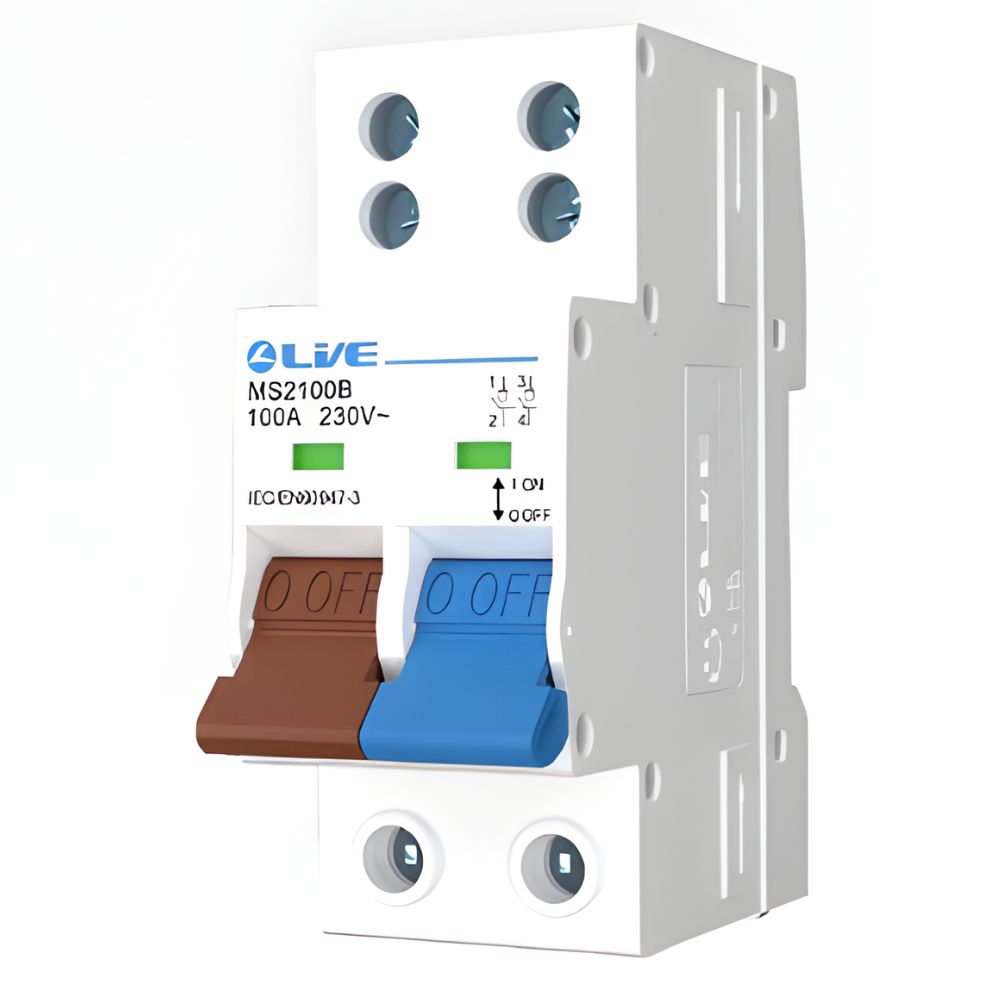

MS2100B 2 Pole 100A Main Switch Double Terminal
Main Isolator with Busbar Connection Port
The MS2100B 2 pole 100A main switch double terminal is a reliable isolator designed for safe and efficient electrical distribution. Suitable for residential and commercial installations, it provides dependable switching and isolation of circuits.
Featuring a double terminal design with twin screw incoming terminals, the unit delivers secure, high integrity connections while allowing flexible wiring configurations. This improves installation efficiency and ensures strong, reliable terminations.
The integrated busbar connection port enables quick and straightforward integration into distribution systems, making it ideal for modern consumer units and distribution boards.
Built to meet BS IEC/EN 60947-3 standards, the switch ensures consistent performance and durability in demanding environments.
Key Features
- 2 pole main switch isolator
- 100A rated current
- Double wiring terminal for flexible connections
- Twin screw incoming terminals for secure connections
- Busbar connection port for faster installation
- Suitable for residential and commercial use
- Complies with BS IEC/EN 60947-3
- Terminal capacity up to 50mm²
Technical Specifications
- Model: MS2100B
- Type: Main Switch Isolator
- Poles: 2 Pole
- Rated Current: 100A
- Rated Voltage: 230/400V
- Terminal Type: Double terminal with twin screw incoming
- Terminal Capacity: 50mm²
- Standard: BS IEC/EN 60947-3
