Single-Phase EV Consumer Unit with Type A 32A Curve C RCBO & PEN Fault Protection
matt:e SP-EVCP-R
Reliable and Compliant EV Charging Connection Centre
The Safe and Easy Solution for EV Charger Installations

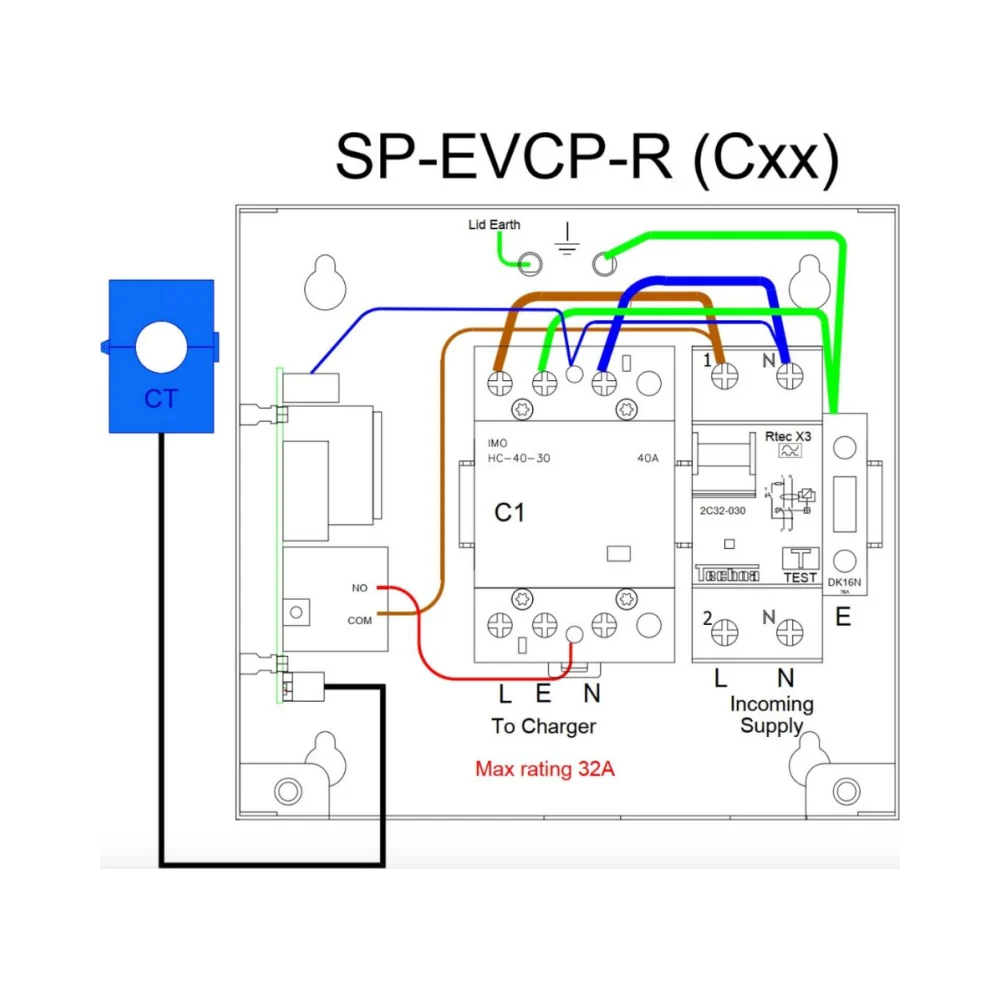

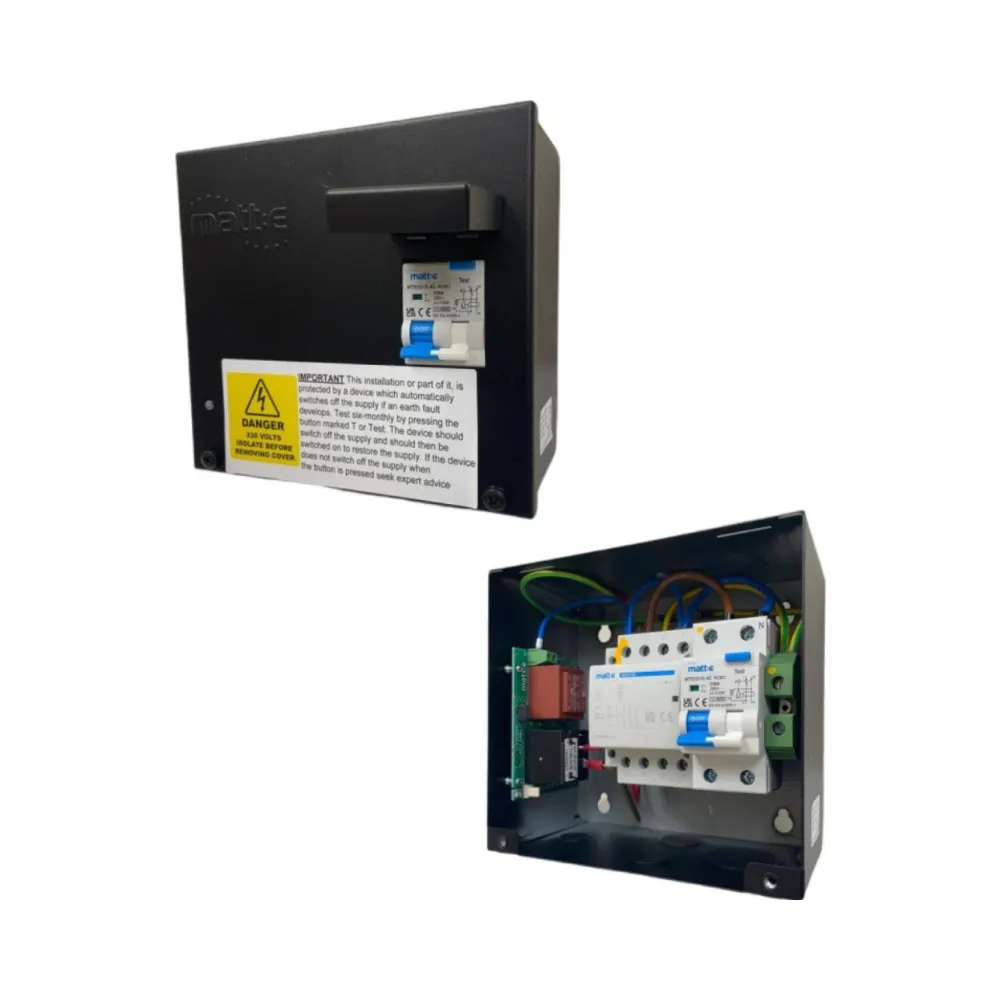

The matt:e SP-EVCP-R EV consumer unit is a dedicated single-phase connection centre, designed to provide a safe, regulation-compliant, and easy-to-install solution for 32A EV charge points. Featuring built-in matt:e PEN fault protection, it allows for connection to PME (TN-C-S) earthing systems without requiring earth electrodes, simplifying installations while ensuring compliance with BS 7671:2018 Amendment 1 (2020) Regulation 722.411.4.1 (iv).
Additionally, this unit includes a built-in 32A Double Pole Type A C32 RCBO for overcurrent and residual current protection, ensuring maximum safety for EV chargers and electrical systems.
Key Features and Benefits
✅ Built-In matt:e PEN Fault Protection
- Ensures a safe and compliant connection to PME earthing systems.
- No earth rods required, significantly reducing installation complexity and cost.
✅ Overcurrent and Residual Current Protection
- Built-in 32A Type A Curve C RCBO protects against overloads, short circuits, and residual currents.
✅ Simple Wire-In, Wire-Out Installation
- Designed for quick and efficient EV charger connections.
- Suitable for direct connection to supply tails for streamlined setup.
✅ No Earth Electrodes Required
- Eliminates the need for costly and disruptive groundworks.
- Reduces the risk of striking buried services, improving installation safety.
✅ Durable Mild Steel Enclosure with IP2X Rating
- Protects internal components from dust and accidental contact.
- Built for long-term durability in various installation environments.
✅ 3-Year Warranty for Peace of Mind
- Standard 3-year parts warranty ensures long-term reliability.
Understanding PEN Loss and PME Faults
- PEN Loss (Protective Earth & Neutral Loss): A dangerous fault in PME (Protective Multiple Earthing) systems where the neutral conductor is lost, potentially exposing users to hazardous voltages.
- PME Fault: When the earth-neutral link in a PME system fails, it can create a serious risk of electric shock.
The matt:e SP-EVCP-R actively detects these faults and automatically ensures safe operation, eliminating the need for earth electrodes while maintaining compliance with EV charging regulations.
Technical Specifications of the matt:e SP-EVCP-R Single-Phase EV Consumer Unit
- Input Voltage: 230V 50Hz
- Maximum Load: 32A
- Protection: Built-in 32A Double Pole Type A Curve C RCBO
- Earthing System: TN-C-S (PME) compliant
- Cable Terminal Capacity:
- Input (L/N): 2.5mm² – 25mm²
- Earth (E): 2.5mm² – 16mm²
- Output (L/N): 2.5mm² – 10mm²
- Enclosure Material: Mild Steel Powder-Coated
- Ingress Protection: IP2X
- Dimensions (H x W x D): 169mm x 182mm x 111mm
- Weight: Approx. 3kg
- Warranty: 3 Years Parts
Ideal Applications
- ✅ Single-Phase EV Charger Installations – Designed for 32A EV charge points.
- ✅ Future-Proof EV Infrastructure – Eliminates the need for earth rods, reducing costs.
- ✅ Safe & Reliable Circuit Protection – Provides comprehensive compliance with EV charging regulations.
Why Choose the matt:e SP-EVCP-R?
This EV electric car charger consumer unit is a cost-effective, regulation-compliant, and future-proofed solution for safe and efficient EV charger installations. Featuring PEN fault protection, a 32A Type A RCBO, and optional load management, it guarantees maximum safety and efficiency.
