Description
Three-Phase EV Consumer Unit with O-PEN® Technology & 3 x 32A Type A Curve C RCBOs
matt:e EVU-3-32-R
Safe, Compliant, and Cost-Effective EV Charging Connection Solution
The Ultimate Three-Phase EV Charging Protection

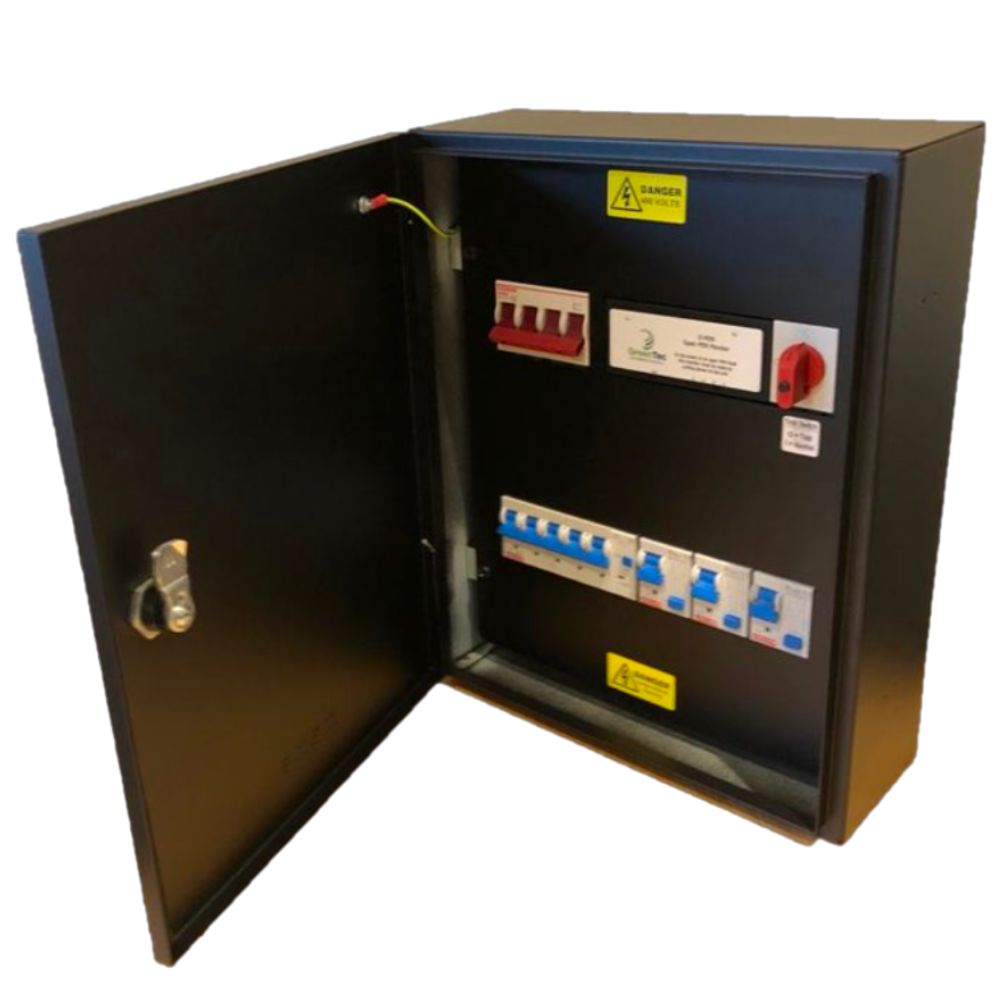

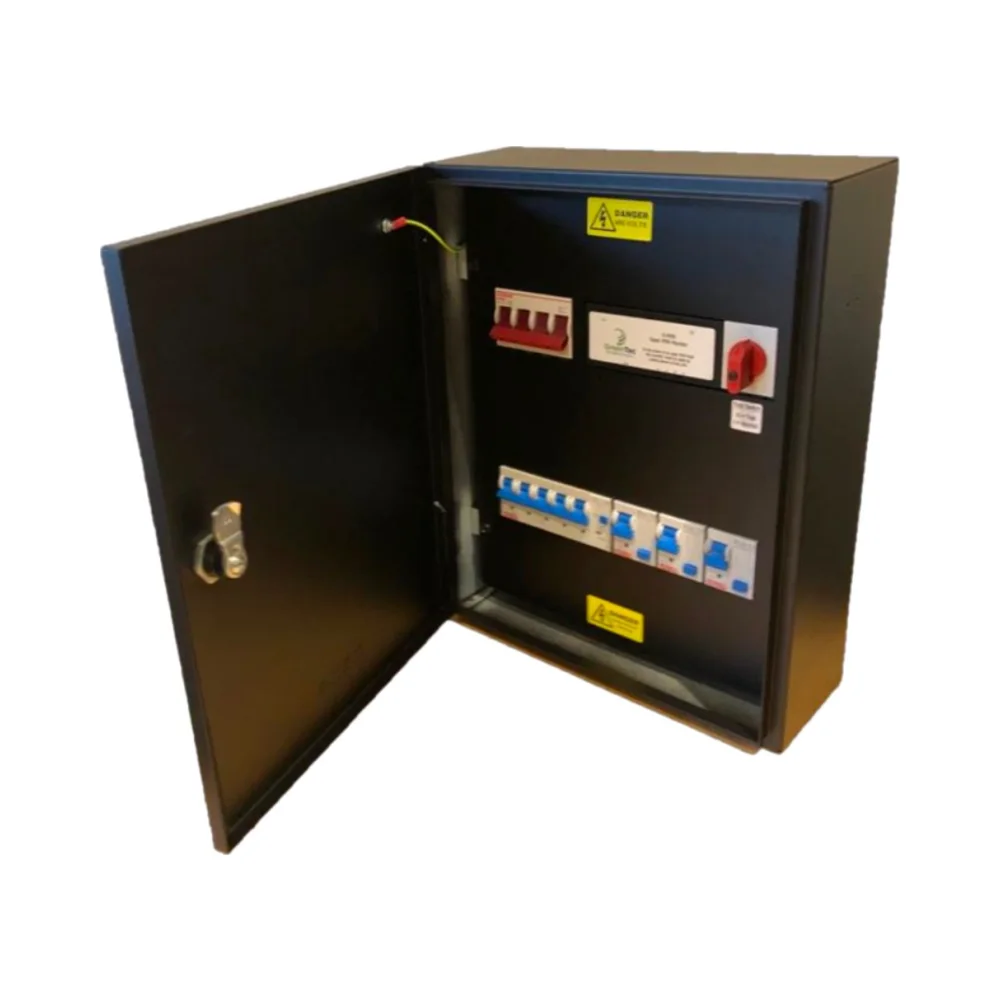

The matt:e EVU-3-32-R EV consumer unit is a three-phase connection centre designed for safe and regulation-compliant EV charger installations. Featuring integrated O-PEN® technology, it allows EV charge points to connect to PME (TN-C-S) earthing systems without the need for earth electrodes. This significantly reduces installation costs and complexity, making it an ideal solution for commercial and residential three-phase EV charging setups.
Equipped with 3 x 32A Double Pole Type A Curve C RCBOs, the unit provides robust circuit protection against overloads, short circuits, and residual currents. Its phase loss protection further enhances safety by detecting supply failures and preventing unsafe operation.
Designed to comply with BS 7671:2018 A1 (2020) Regulation 722.411.4.1 (iii), this unit simplifies EV charger installations while ensuring maximum reliability.
Key Features and Benefits
✅ Built-In O-PEN® Technology for Compliance & Safety
- Monitors the supply and detects PEN faults, ensuring safe operation.
- No need for earth rods, eliminating costly and disruptive groundwork.
✅ Eliminates the Risk of Striking Buried Services
- Safely connects to PME earthing systems without requiring additional excavation work.
✅ Comprehensive Circuit Protection
- 3 x 32A Double Pole Type A Curve C RCBOs provide overload, short circuit, and residual current protection.
✅ Phase Loss Protection
- Detects loss of phase supply and prevents unsafe operation.
✅ Simple Wire-In, Wire-Out Installation
- Top and bottom cable entry allows for flexible and efficient wiring.
✅ Durable IP4X Mild Steel Enclosure
- Powder-coated mild steel construction for long-lasting protection.
- Provides IP4X ingress protection to safeguard internal components.
✅ 1-Year Standard Warranty
- Ensures reliable long-term performance and peace of mind.
Understanding PEN Loss and PME Faults
- PEN Loss (Protective Earth & Neutral Loss): A dangerous fault in PME (Protective Multiple Earthing) systems where the neutral conductor is lost, potentially exposing users to hazardous voltages.
- PME Fault: When the earth-neutral link in a PME system fails, it can create a serious risk of electric shock.
The matt:e EVU-3-32-R automatically detects PEN faults and ensures safe disconnection, maintaining compliance with BS 7671:2018 A1 regulations.
Technical Specifications of the matt:e EVU-3-32-R Three-Phase EV Consumer Unit with O-PEN®
- Input Voltage: 400V 50Hz
- Maximum Load: 32A per phase
- Protection: 3 x 32A Double Pole Type A RCBOs
- Earthing System: TN-C-S (PME) compliant
- Cable Entry Facility: Top and bottom
- Terminal Capacity: 25mm²
- Enclosure Material: Mild Steel, Powder-Coated
- Ingress Protection: IP4X
- Dimensions (H x W x D): 380mm x 300mm x 120mm
- Weight: Approximately 7kg
- Warranty: 1 Year
Ideal Applications
- ✅ Three-Phase EV Charger Installations – Supports multiple charge points with dedicated protection.
- ✅ Cost-Effective & Safe EV Infrastructure – Eliminates the need for earth rods, reducing costs.
- ✅ Reliable Circuit Protection – Ensures maximum compliance with BS 7671:2018 A1 regulations.
Why Choose the matt:e EVU-3-32-R?
This three-phase EV electric car charger consumer unit provides a safe, fully compliant, and cost-effective solution for EV charger installations. With built-in O-PEN® technology, 3 x 32A Type A RCBOs, and phase loss protection, it ensures long-term reliability, compliance, and safety.
