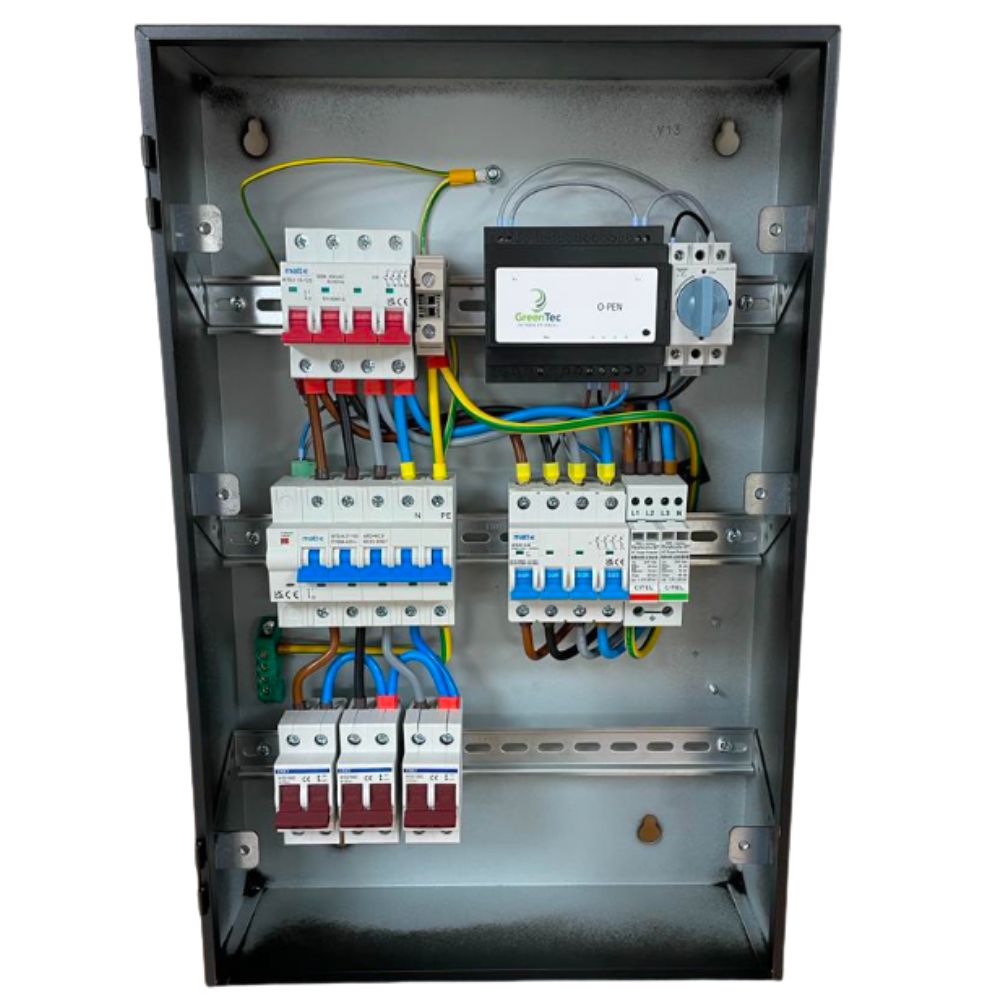

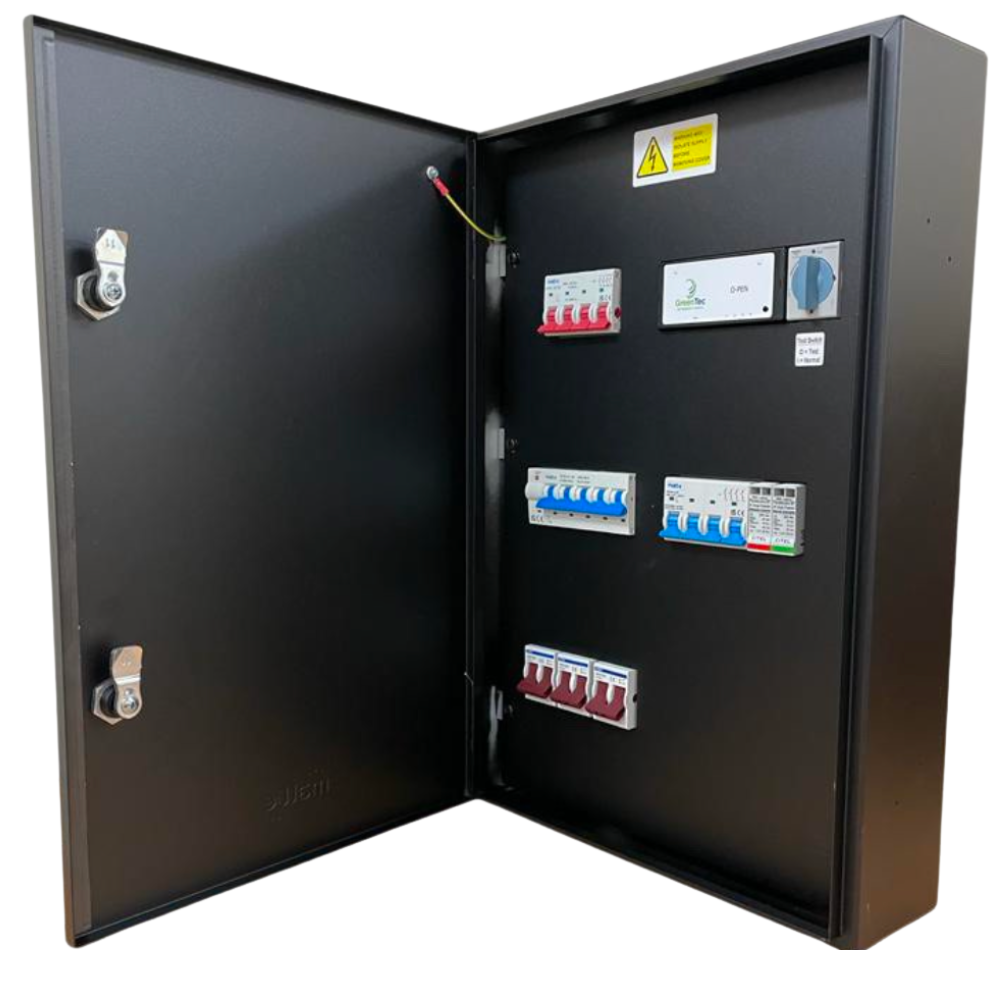

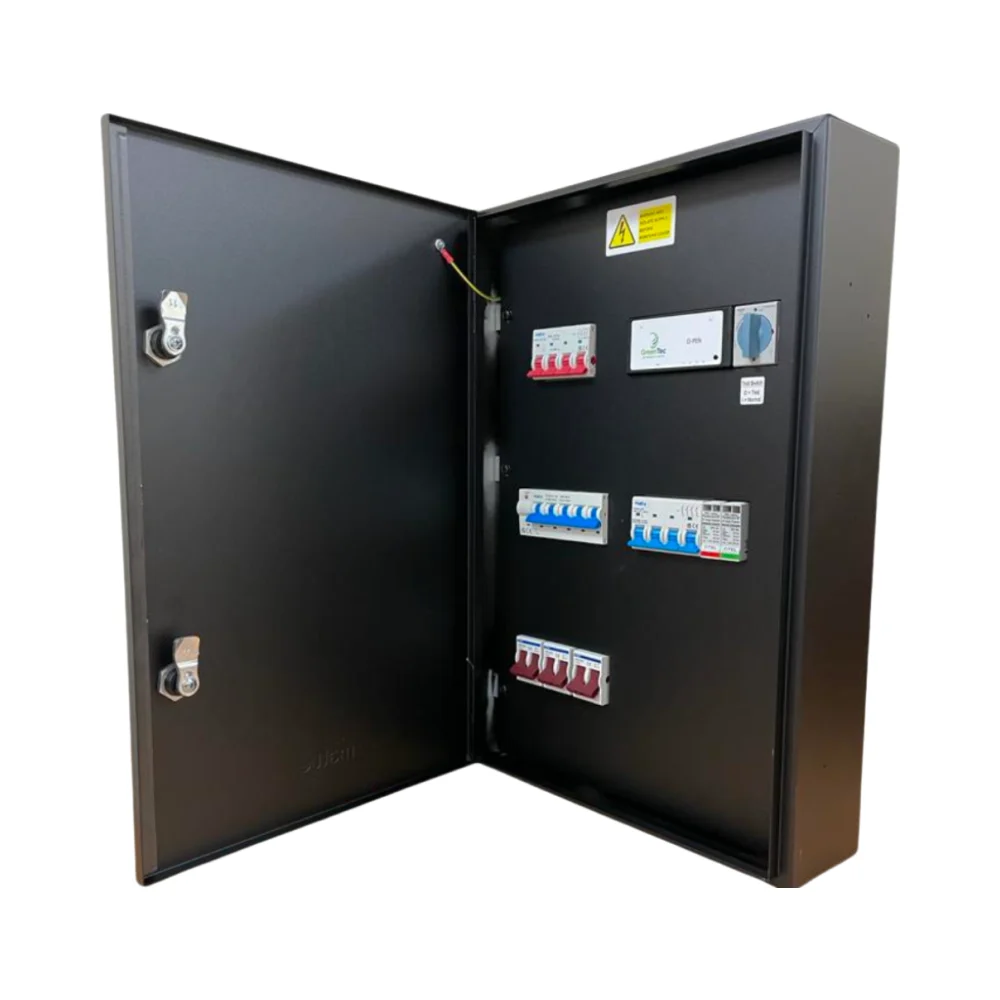

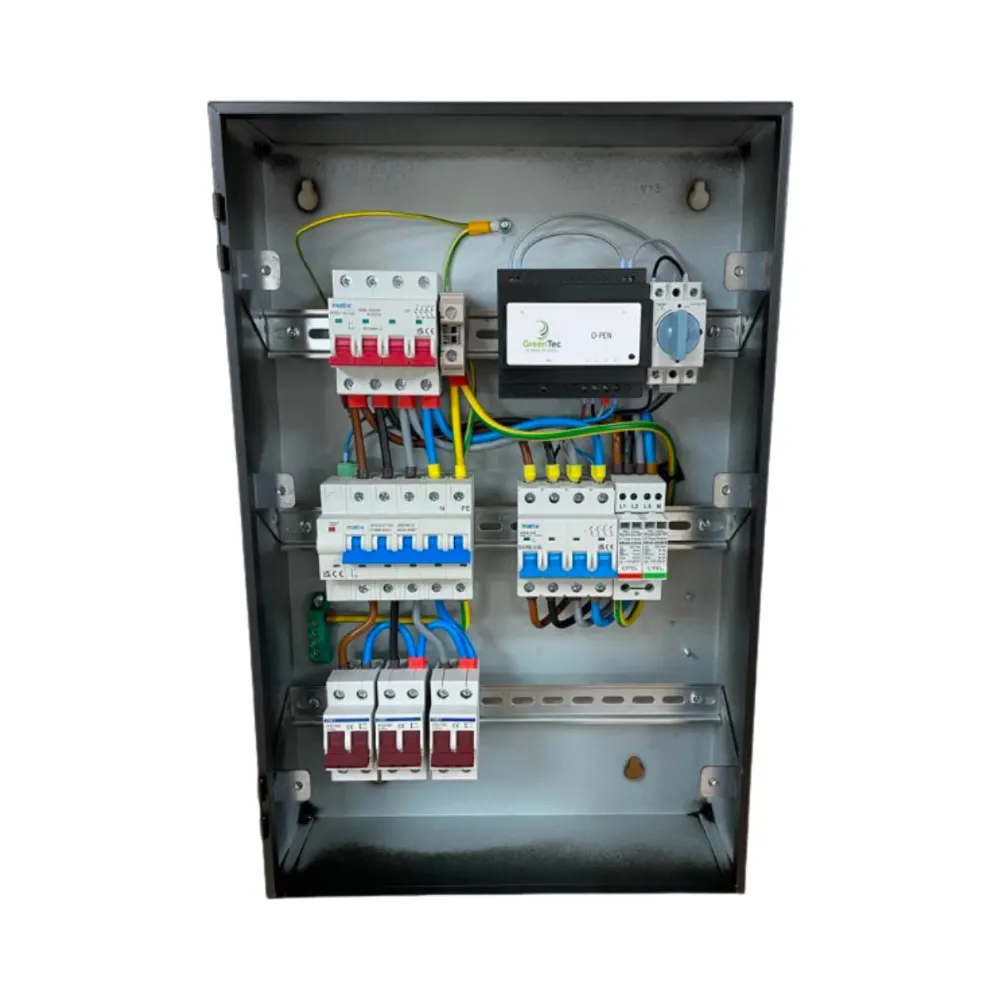

matt:e ARD-3-63-ISL-SPD EV Connection Centre with O-PEN 3 x 63A SP Loads & Type 2 SPD

Products may differ in size, colour and appearance to those shown. If you require further information please contact us directly.

matt:e ARD-3-63-ISL-SPD EV Connection Centre with O-PEN 3 x 63A SP Loads & Type 2 SPD

Name: matt:e ARD-3-63-ISL-SPD EV Consumer Unit
Brand: matt:e
SKU: ARD-3-63-ISL-SPD
Price: 1195.32 GBP
Availability: BackOrder

SKU: ARD-3-63-ISL-SPD

Delivery usually within 1 - 3 working days

Confirm Availability

The matt:e ARD-3-63-ISL-SPD EV Connection Centre provides fast and compliant EV charger installations with O-PEN technology, a 5-pole automatic reset isolator, and a Type 2 SPD. Designed for three single-phase 63A loads, it ensures BS 7671:2018 A2 compliance.

Go to the related products

Categories: 3 Phase EV Consumer Unit, PME-PEN Fault Detection Units

Brand: matt:e

£ 996 .10 EX VAT

£ 1195 .32 IN VAT

SECURE PAYMENT

We use secure checkout for safe, encrypted payments.

Description

EV Connection Centre with O-PEN 3 x 63A SP Loads & Type 2 SPD

matt:e ARD-3-63-ISL-SPD

Advanced Protection for EV Charging Installations

A Reliable, Compliant, and Cost-Effective Solution

The matt:e ARD-3-63-ISL-SPD Connection Centre provides a safe and regulation-compliant solution for electric vehicle (EV) charging installations. It is specifically designed for three single-phase 63A loads, making it ideal for multi-point charging applications.

Equipped with O-PEN® technology, this unit eliminates the need for earth electrodes, reducing both installation time and costs. The integrated Type 2 Surge Protection Device (SPD) protects against voltage spikes, while the 5-pole automatic reset isolator ensures uninterrupted operation.

Key Features and Benefits

✅ Built-In O-PEN® Technology for PME Compliance

No earth electrodes required, reducing installation costs and time.
Eliminates the risk of striking buried services.

✅ Supports Three Single-Phase Loads

Designed for 3 x 63A single-phase circuits in commercial and industrial EV setups.

✅ Pre-Installed Type 2 SPD

Shields connected EV chargers from power surges and transient overvoltages.

✅ Automatic Reset 5-Pole Isolator

Detects and isolates faults automatically, enhancing reliability.

✅ Durable Mild Steel IP4X Enclosure

Built to withstand demanding installation environments.

✅ Fully Compliant with EV Charging Regulations

BS 7671:2018 Amendment 2 (2022) Regulation 722.411.4.1.(iii).

Technical Specifications of the matt:e ARD-3-63-ISL-SPD EV Consumer Unit

Input Voltage: 400V 50Hz
Maximum Load: 63A per phase
Cable Entry: Top & Bottom
Terminal Capacity: 25mm²
Enclosure Material: Mild Steel Powder-Coated
Ingress Protection: IP4X
Dimensions (H x W x D): 550mm x 360mm x 120mm
Weight: Approx. 7kg
Warranty: 1 Year

Ideal Applications

✅ EV Charging Stations – Optimised for multiple single-phase charger connections.
✅ Commercial & Industrial Setups – Provides a robust and regulation-ready solution.
✅ Future-Proof Installations – Reduces groundwork disruptions while offering long-term safety.

Why Choose the matt:e ARD-3-63-ISL-SPD?

This connection centre is engineered for safe and efficient EV charger installations. With O-PEN®, a Type 2 SPD, and an auto-reset isolator, it ensures cost-effective, compliant, and future-ready EV charging infrastructure.

Upgrade Your EV Charging Network Today – Order Now!

Additional information

RCBO / RCD Type	Type A

Downloads

View Product Data Sheet

Installation Manual

Three Phase Product Warranty March 23

Returns Procedure March 23

Delivery Information

This product will be ordered from one of ours suppliers. The usual dispatch time to you is displayed above. You will receive a notification if there are any delays once your order is placed.

Return Info

Here’s a clear and professional purchase note incorporating the returns and warranty policy for matt:e Three Phase range:

Important: Special Return & Warranty Policy for Three Phase EVU & ARD Range

This item is only returnable if found to be faulty. To request a replacement or refund, you must follow the manufacturer’s Warranty & Returns Procedure for the Three Phase EVU & ARD Range:

Returns Procedure

Before leaving the site, the installer must take photographs of the device and its serial number. These should be sent to returns@matt-e.co.uk, and matt:e Ltd should be contacted at 01543 227290 for further instructions.
Matt:e Ltd will issue an RMA (Return Merchandise Authorisation) form via email with a unique RMA number. This form must be completed, signed, and returned to returns@matt-e.co.uk. Once received, a replacement unit will be sent to the requested delivery address.
The faulty unit must be returned within 14 days with the corresponding RMA number attached to:
matt:e Ltd, 1 Langley Brook Business Park, London Road, Middleton, Tamworth, Staffordshire B78 2BP.
Failure to follow this process will result in an invoice for the replacement unit and associated charges.
All returned units will be fully inspected, and a report will be sent to the customer. If a unit has been incorrectly installed, damaged, or altered, a full replacement charge will apply.
This returns procedure does not affect the Limited Warranty Terms and Conditions.

Warranty Information

The matt:e Three Phase EVU and ARD range of connection centres are covered by a 1-year warranty from the date of purchase, guaranteeing freedom from manufacturing defects.
To make a warranty claim, the original purchase invoice must be provided.
What is covered: Replacement of any defective component at matt:e Ltd’s sole discretion.
What is not covered: Labour charges, travel costs, mileage costs, or failure due to misuse, alterations, neglect, improper installation, or use of non-approved parts. The warranty is void if the serial number is removed, altered, or defaced.
Limitation of liability: This warranty replaces all other warranties, express or implied, including warranties of merchantability or fitness for a particular purpose. matt:e Ltd is not liable for any accidental or consequential damages.
