Description

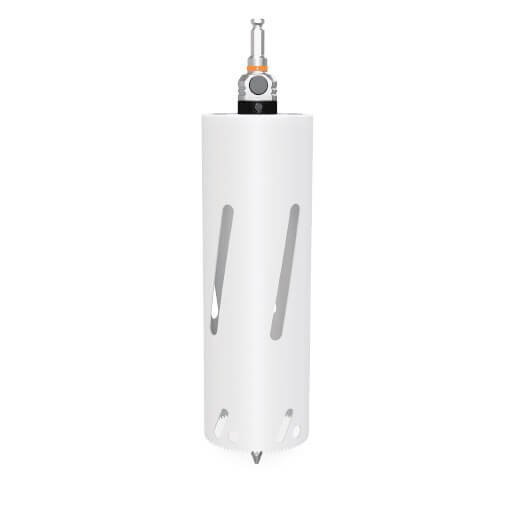

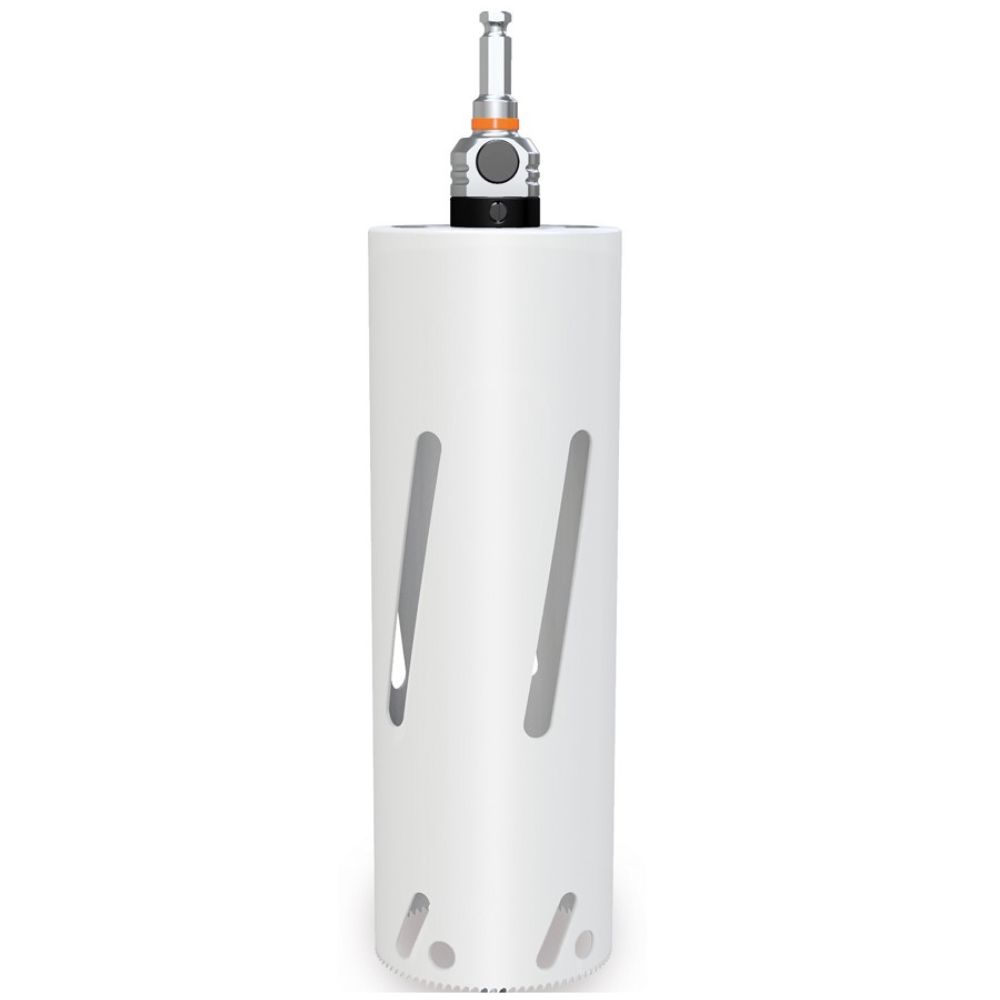

MXqs SpeedXcut Xtra DEEP Hole Saw 83x300mm
Mandrex MHM41Q083B
The Mandrex MHM41Q083B MXqs SpeedXcut Xtra DEEP Hole Saw is engineered for deep, precise cutting across a wide range of materials. With an impressive cutting depth of 300 mm and a diameter of 83 mm (3 1/4″), this hole saw is perfect for demanding applications such as roof transit installations, pipework, and deep drilling projects.
Constructed from bi-metal with 8% cobalt alloy (M42), it offers exceptional durability, superior heat resistance, and a longer lifespan even under heavy-duty conditions. The included MXqs quick-release adapter and arbor ensure fast, tool-free changes with a one-click mechanism, significantly improving efficiency on the job. Additionally, the special tooth design provides smooth, clean cuts with minimal heat build-up, making it ideal for both electric and battery-powered tools.
Key Features of Mandrex MHM41Q083B Xtra Deep Hole Saw 83x300mm
- Extra deep cutting with a 300 mm cutting depth, ideal for roof transits, ducts, and deep drilling projects
- 83 mm (3 1/4″) diameter for large, precise holes
- Bi-metal construction with 8% cobalt alloy (M42) for enhanced wear resistance and extended tool life
- MXqs quick-release system with a one-click mechanism for fast, tool-free hole saw changes
- Special tooth design ensures smooth, clean cuts with minimal heat build-up
- Compatible with both electric and battery-powered tools for versatile applications
- Extra-long side slots for easy core removal, even after deep cuts
- Unique drilling guide pin for secure, accurate drilling, including at challenging angles
- Requires MX200078B guide pin
Technical Specifications
- Product Code: MHM41Q083B
- Hole Saw Length: 300 mm
- Hole Saw Diameter: 83 mm (3 1/4″)
- Material Composition: Bi-metal with 8% cobalt alloy (M42)
- Quick-Release System: MXqs adapter and arbor (one-click mechanism)
- Cutting Depth: 300 mm
- Compatibility: Suitable for both electric and battery-powered tools
Material Compatibility
This hole saw is designed to cut through a wide range of materials, including:
- Metals: Aluminium, Brass, Carbon Steel, Cast Iron, Mild Steel, Stainless Steel, Steel, Steel Profiles/Tubes, Non-Ferrous Metals
- Woods: Softwood, Hardwood, Plywood, Laminated Board, Oriented Strand Board (OSB), Chipboard, MDF, Wood with Nails
- Plastics: PVC, Acrylic, Epoxy, Reinforced Plastic, Fiber-Reinforced Plastic, General Plastics
- Other Materials: Metal Pipes/Profiles, Iron, Composite Materials
Ideal Applications
- Roof transit installations
- HVAC and electrical conduit drilling
- Deep pipe and duct installations
- Construction, metal fabrication, and carpentry projects
- Plastic and reinforced plastic drilling
About Mandrex
Mandrex is a global leader in cutting and drilling technology, renowned for delivering innovative solutions that enhance efficiency, precision, and durability. The MXqs SpeedXcut series reflects Mandrex’s dedication to engineering excellence, offering professionals the fastest and most reliable hole saw systems on the market.
