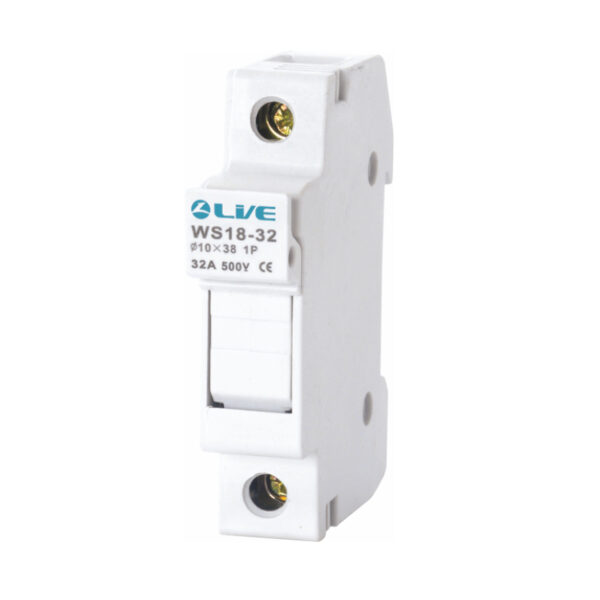

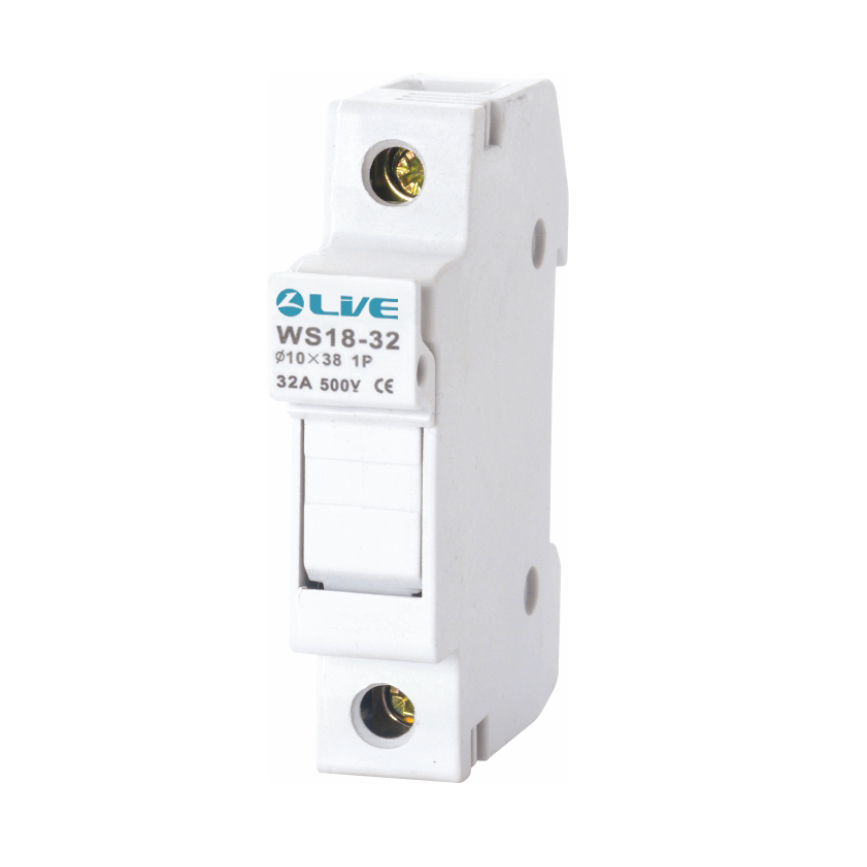

Live Electrical Single Pole 32A Rail Mount Fuse Holder Without Fuse

Live Electrical Single Pole 32A Rail Mount Fuse Holder Without Fuse

Live Electrical fuse holders are primarily used to protect electrical circuits against overloads and short-circuits. Constructed from a high-performance polymer with a fusion temperature exceeding 300°C, these fuse holders offer a significant safety margin against potential overheating.

Key Features:

• High Performance Polymer: Fusion temperature exceeds 300°C, providing enhanced safety.
• Overload and Short-Circuit Protection: Safeguards electrical circuits effectively.
• Industrial Cylindrical Fuse Design: Compatible with 10x38mm fuses.
• DIN Rail Mounting: Easy to install on DIN rails.
• Compliance: Meets IEC EN60269 standards.

Specifications:

• Fuse Size: 10x38mm
• Max Rated Current: 32A
• Voltage Rating: 690V AC
• Rated Power Dissipation: 3W
• Max Power Dissipation: 4W

Applications:

• Industrial Electrical Systems: Ideal for protecting circuits in various industrial applications.
• Overload Protection: Prevents damage due to excessive current.
• Short-Circuit Protection: Ensures safety by interrupting fault currents.

Shop Now

Protect your electrical circuits with the Live Electrical Single Pole 32A Rail Mount Fuse Holder Without Fuse. Shop now at Electrical4Less for reliable and high-performance fuse holders.
