Description

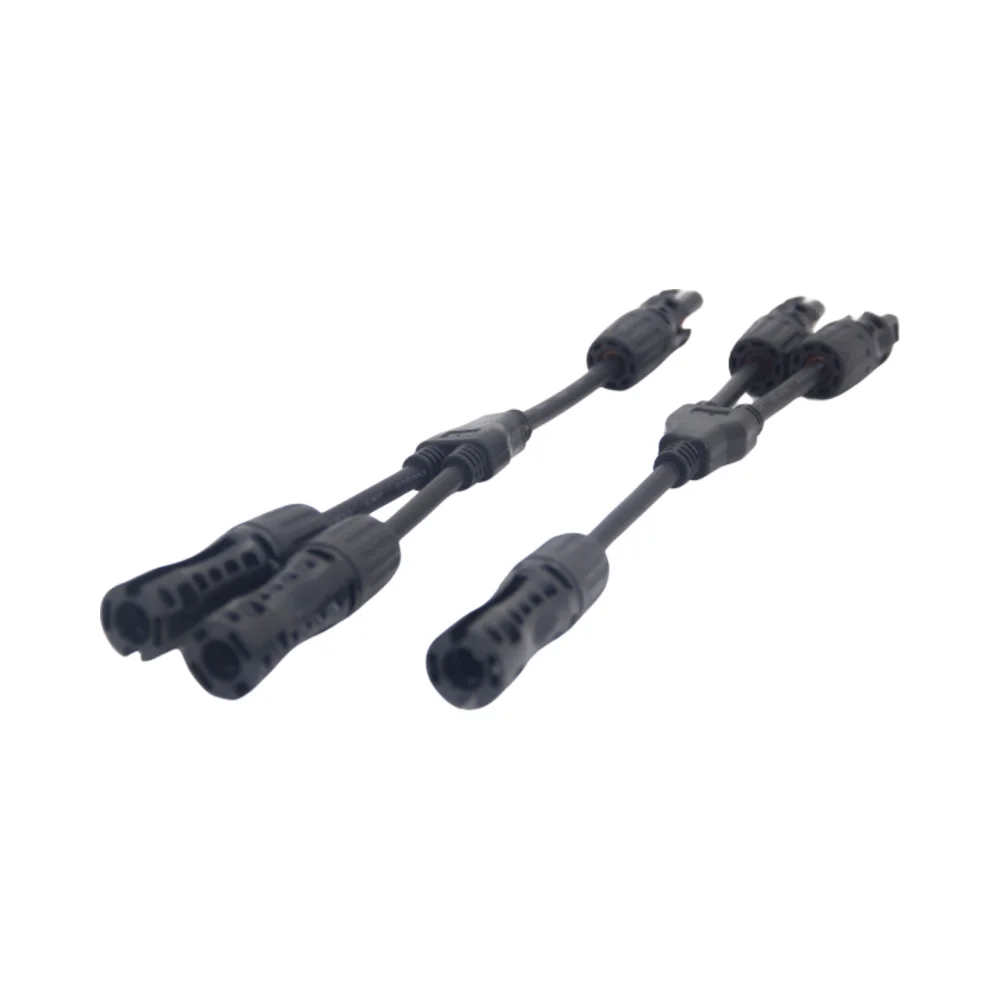

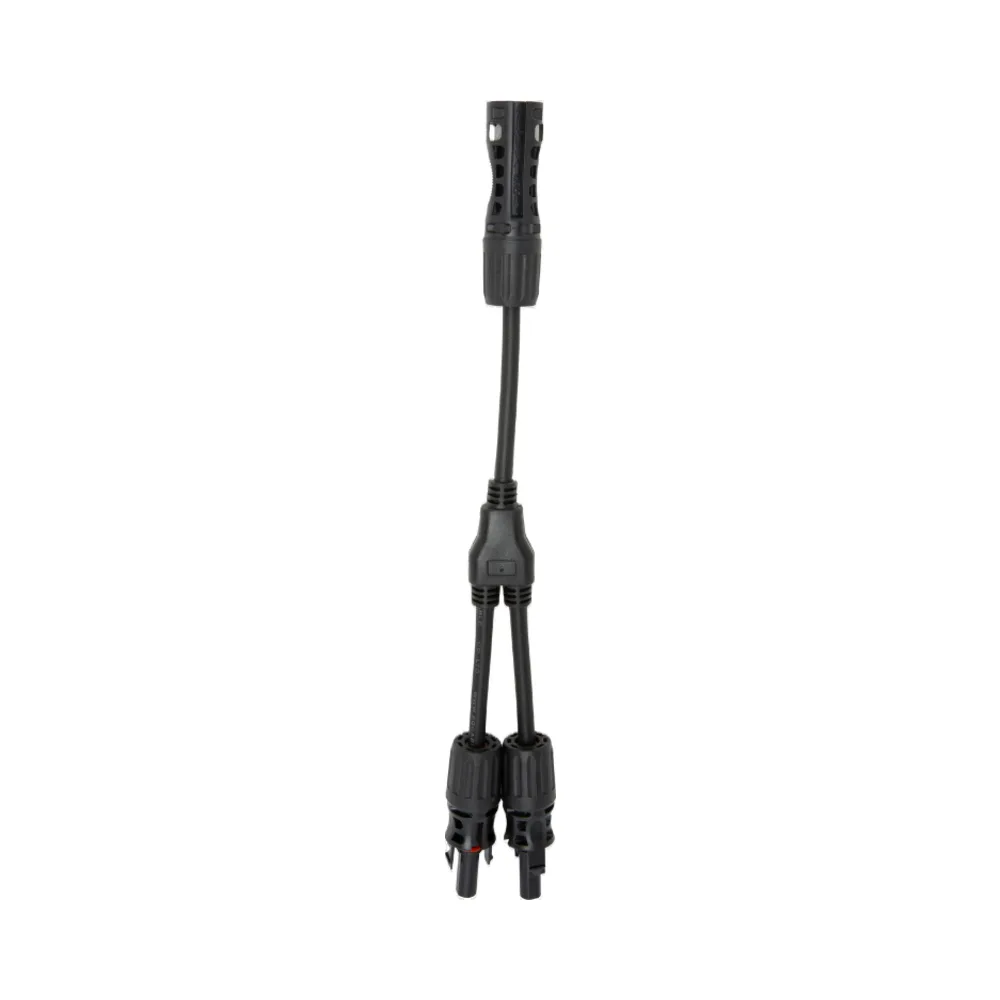

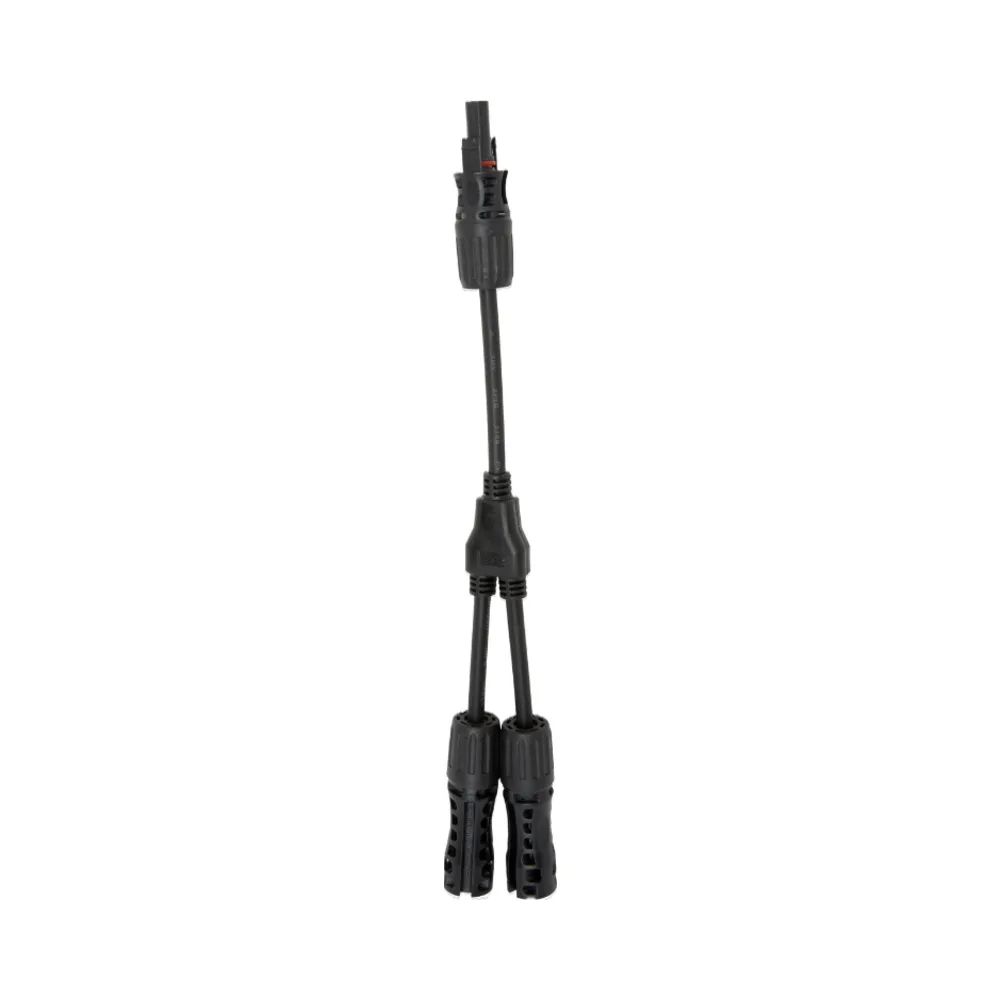

1500V 30A Solar Photovoltaic Type-Y Branch Connector
2 Branches for High-Efficiency Solar Systems
Live Electrical PV-BCY2
The Live Electrical PV-BCY2 Type-Y Branch Connector is designed to support high-performance solar photovoltaic systems, providing secure, stable, and efficient connections. Rated for 1500V DC and 30A, this connector is ideal for demanding residential, commercial, and industrial solar installations, ensuring durability and long-term reliability even in harsh environments.
Key Features of the Live Electrical PV-BCY2 Type-Y Branch Connector
- High Voltage Capacity: Rated at 1500V DC for powerful energy transmission
- Reliable Current Handling: Supports up to 30A, perfect for large-scale PV systems
- Weatherproof Design: IP67-rated for dust-tight, water-resistant performance in all climates
- Wide Temperature Tolerance: Operates efficiently from -40°C to +90°C, withstanding extreme conditions up to +105°C
- Secure Connection: Features a robust ⌀4mm connector system with low contact resistance (0.5mΩ) for maximum efficiency
- Corrosion-Resistant: Tested to IEC60068-2-52 standards for superior durability in harsh environments
Technical Specifications
- Product Name: Live Electrical PV-BCY2 Type-Y Branch Connector (2 Branches)
- Rated Voltage: 1500V DC
- Rated Current: 30A
- Ambient Temperature Range: -40°C to +90°C
- Upper Limiting Temperature: +105°C
- Test Voltage: 6kV (50Hz, 1 min)
- IP Rating: IP67 (protection against dust and water ingress)
- Contact Material: Copper, tin-plated for enhanced conductivity
- Contact Resistance: 0.5mΩ for minimal power loss
- Insulation Material: Durable PC/PA for added protection
- Connector System: ⌀4mm
- Safety Class: II
- Corrosion Test Grade: IEC60068-2-52 certified
Why Choose the Live Electrical PV-BCY2 Solar Branch Connector?
- Optimized for High-Voltage Systems: Ideal for large-scale photovoltaic setups
- Weather-Resistant Build: IP67 rating ensures reliable performance in extreme weather conditions
- Enhanced Durability: Corrosion-resistant materials meet international standards for long-lasting use
- Low Power Loss: Minimal contact resistance improves energy efficiency
- Easy Installation: Quick-connect design for fast, secure assembly without special tools
Ideal Applications
- Residential, Commercial, and Industrial Solar PV Systems
- Grid-Tied and Off-Grid Renewable Energy Projects
- Large-Scale Photovoltaic Installations Requiring High Voltage and Current Handling
Maximise the efficiency and durability of your solar power systems with the Live Electrical PV-BCY2 1500V 30A Type-Y Branch Connector—engineered for secure, high-performance connections in all environments.
