Description

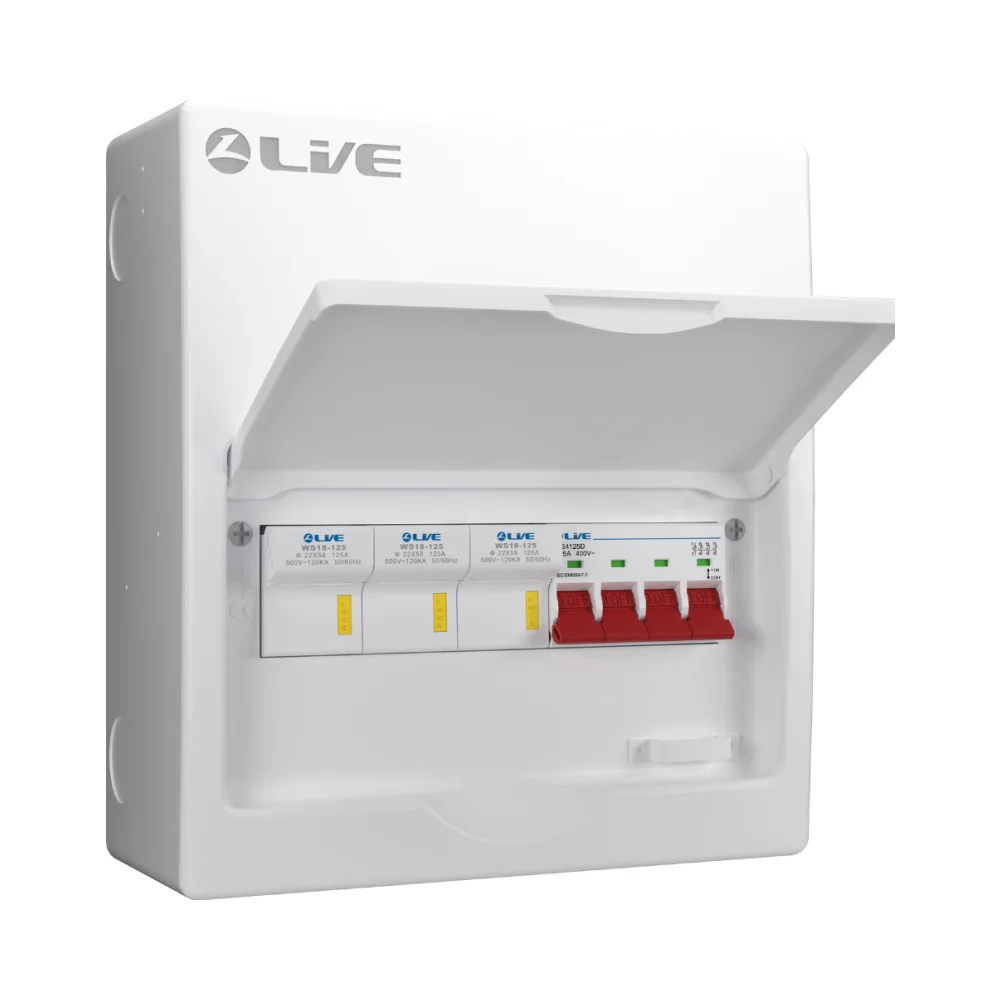

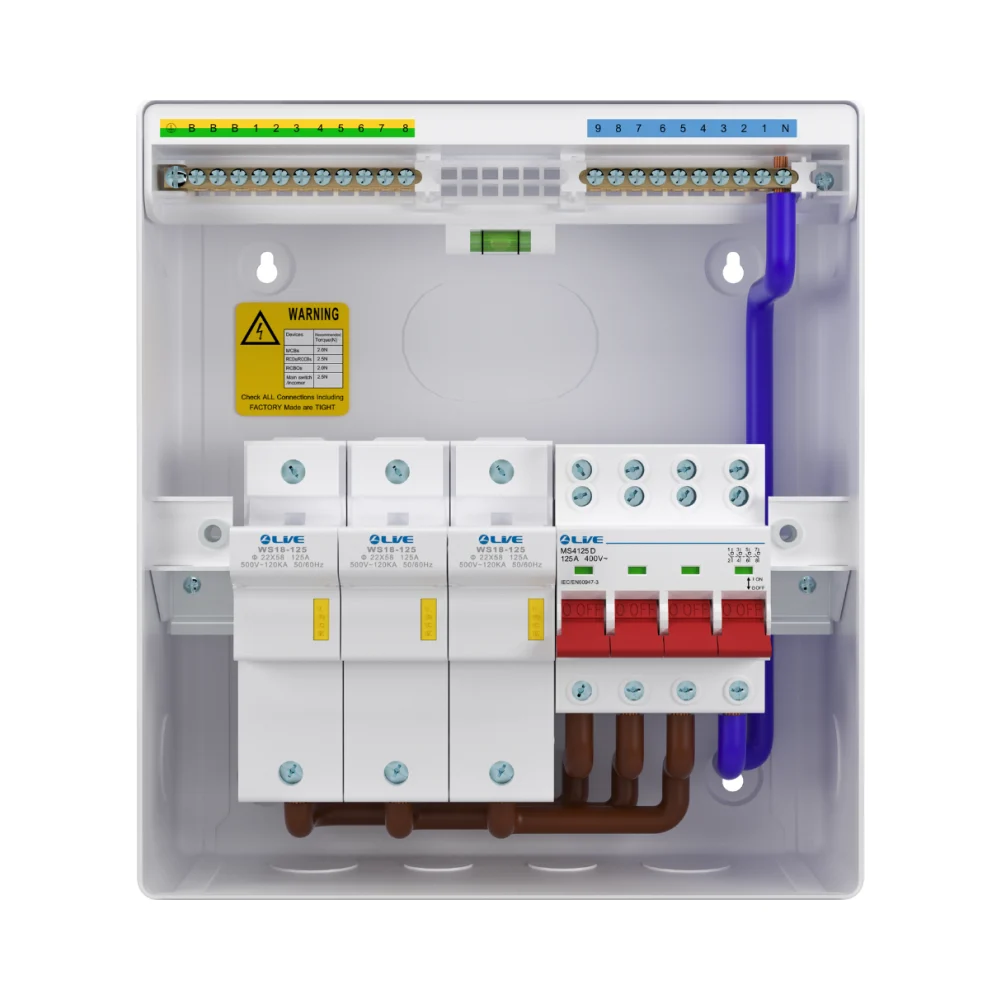

3-Phase Metal Switch Fuse Box – Surface Mounted
Live Electrical LSFS125
Metal 3X125A Fused Switch c/w 4P125A Main Switch without Fuses
The Live Electrical 3-Phase Metal Switch Fuse Box is an ideal solution for the protection and isolation of incoming supplies in both residential and commercial applications. This high-quality, surface-mounted fuse box is equipped with a 4 Pole 125A Main Switch and is BS EN61439-3 compliant, ensuring reliable performance and adherence to safety standards.
Key Features:
- 3-Phase Metal Switch Fuse Box designed for optimal protection and isolation.
- Fitted with 1x 4 Pole 125A Main Switch for efficient power control.
- Includes 3 x Fuse Holder 125A, providing enhanced circuit protection.
- Multiple circular cable entry knock-outs (25mm & 32mm) on the top, bottom, and sides for flexible cable management.
- Surface mounted for easy installation.
- Max cable capacity of 50mm² to handle various wiring setups.
- IP40-rated, ensuring basic protection against external elements.
- Fully compliant with BS EN61439-3 standards for electrical safety.
Dimensions:
- Width: 244mm
- Height: 270mm
- Depth: 110mm
This Live Electrical LSFS125 3-Phase Metal Switch Fuse Box is designed to offer reliable protection for your electrical systems, making it a perfect choice for both small and large installations.
