18-Way Solar PV Consumer Unit | 3 String Input, 3 String Output DC | IP65 Rated

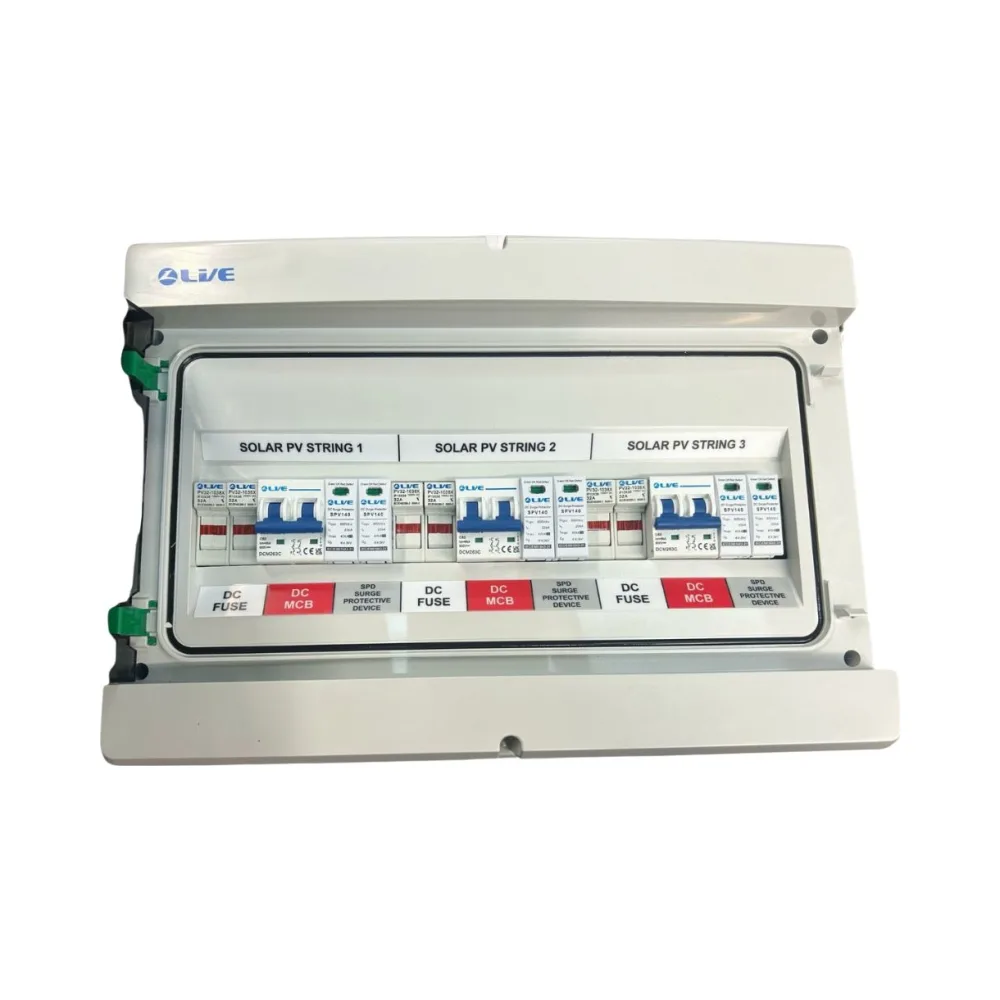

Live Electrical ENC18 3 Strings Solar PV Consumer Unit
The Live Electrical ENC18 PV3 is a fully pre-wired, high-spec 18-way photovoltaic (PV) consumer unit engineered for 3-string input and output solar panel systems. Designed to meet the evolving needs of domestic and light commercial solar PV installations, this board provides complete DC protection in one clean, IP65-rated enclosure.
Built with UK regulations and installers in mind, this unit includes a full suite of DC isolators, surge protection, and photovoltaic fuse holders—ensuring safe disconnection, overcurrent protection, and long-term reliability.
Whether you’re installing rooftop solar or integrating into a battery-ready setup, the ENC18 PV3 3 delivers speed, safety, and flexibility in every install.
✅ Key Features – Live Electrical ENC18 3 Strings Solar PV Consumer Unit
- IP65-Rated Enclosure
Waterproof, UV-resistant, and dust-tight. Suitable for indoor or outdoor mounting. - Fully Pre-Wired Unit
Saves installation time and reduces wiring errors—ideal for high-efficiency site work. - 3-String Ready
Accepts 3 DC inputs and 3 outputs, simplifying string management in PV systems. - Flexible, Installer-Friendly Design
With front-access knockouts, labelled components, and gland entries pre-installed. - Strictly Tested for UK Environments
Proven to perform under high and low temperature conditions.
Factory-Fitted Components – Live Electrical ENC18 3 Strings Solar PV Consumer Unit
- 10×38 15A DC Photovoltaic Fuses
- 32A 1000V DC Photovoltaic Fuse Holders with Indicator Lights
- 2P 63A DC 600V Circuit Breakers
- 2P 20–40kA 1000V DC Type 2 Surge Protection Device
- 1000V DC Photovoltaic Cable Gland Connectors
Ideal For:
- Domestic rooftop solar installations
- Small commercial PV system protection
- Inverter-side DC protection and isolation
- Battery-ready systems with 3 MPPT or string configurations
System Configuration
- 3 PV String Inputs / 3 PV Outputs
- Supports inverters, battery systems, and PV combiner setups
- Plug-and-play with existing solar distribution systems
Compliance & Standards
- Built in accordance with BS 7671 Wiring Regulations
- Compatible with MCS standards for solar PV installations
- CE, UKCA, and RoHS certified
- Designed and supported by Live Electrical UK
