Description

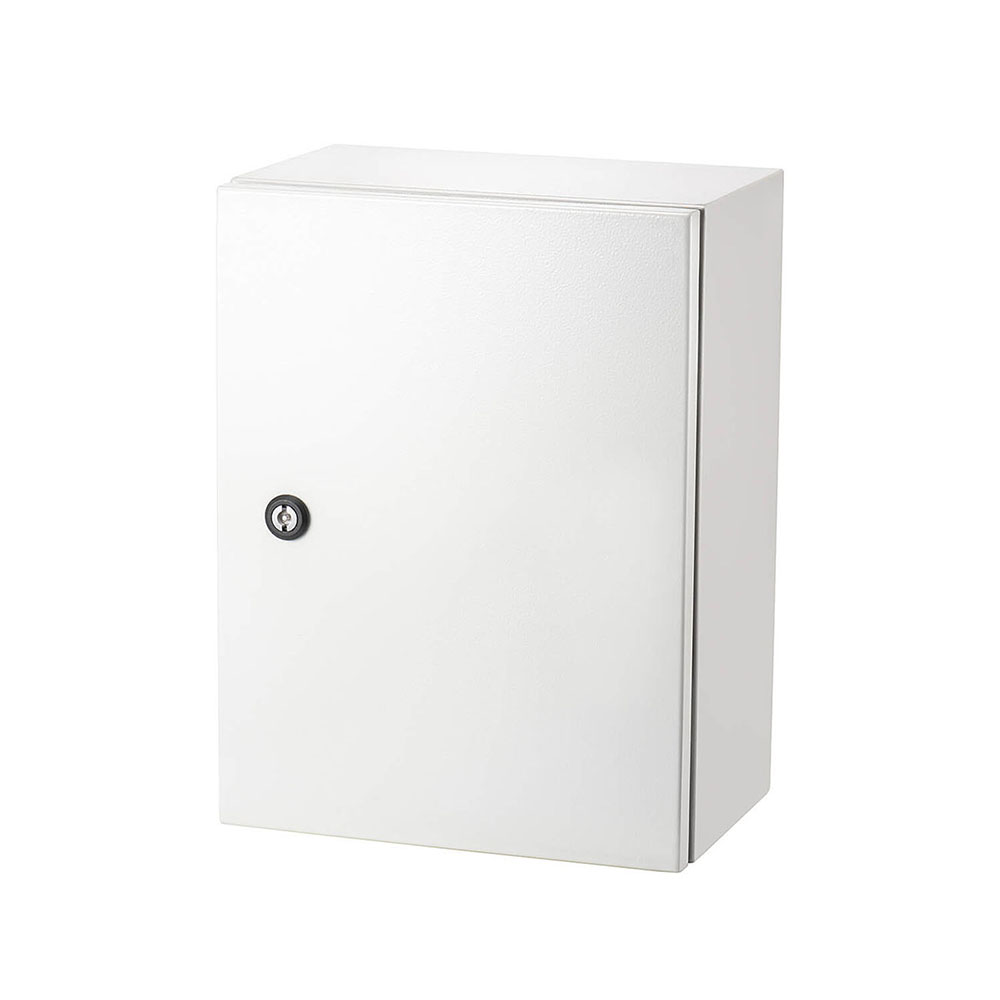

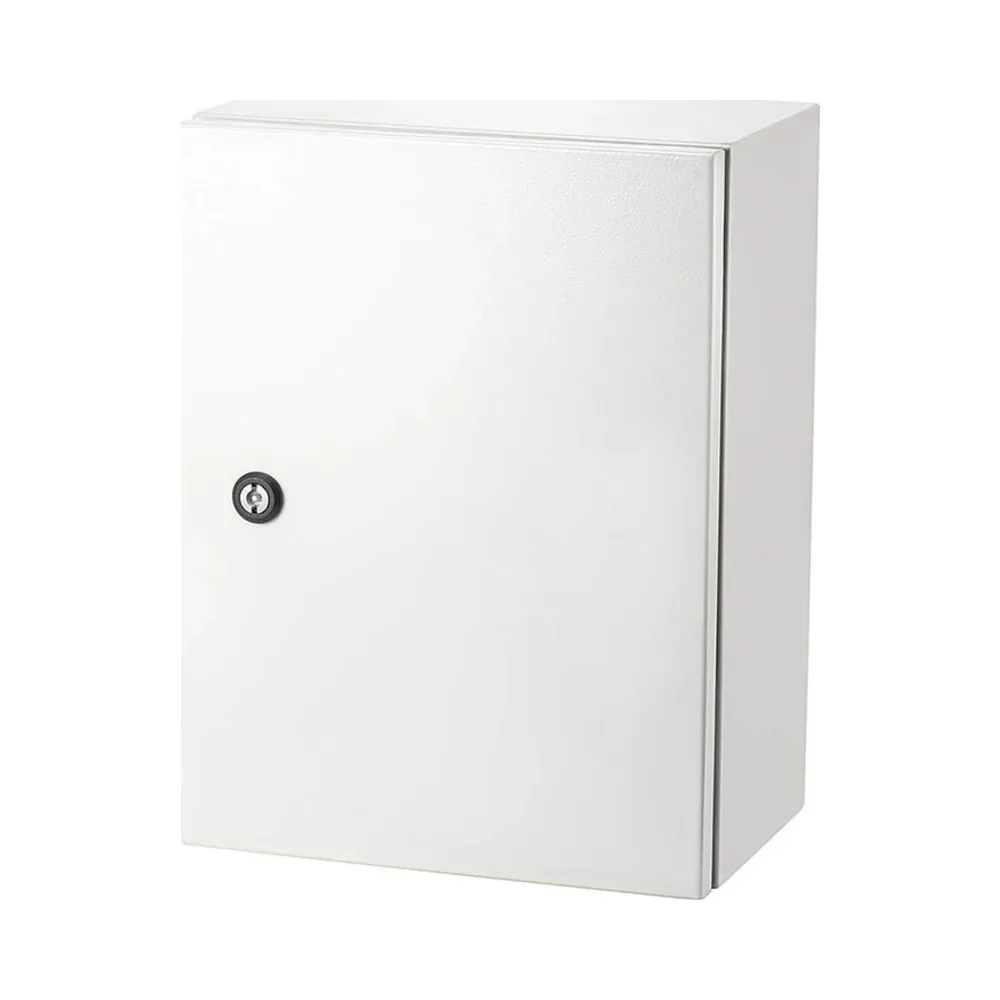

IP65 Metal Enclosure – 500 x 400 x 250mm
Robust & Weatherproof Electrical Enclosure for Secure Installations – Live Electrical IP65 Metal Enclosure 500x400x250mm
Live Electrical EN5040/250
The Live Electrical EN5040/250 IP65 Metal Enclosure is a heavy-duty and weather-resistant housing solution, designed to protect electrical components in industrial, commercial, and outdoor environments. Constructed from 1.2mm-1.5mm steel and coated with RAL7035 epoxy powder, this enclosure ensures maximum durability, corrosion resistance, and impact protection.
With an IP65-rated polyurethane foamed gasket, this enclosure provides dustproof and watertight sealing, making it ideal for harsh conditions. The continuously hinged cover with a 120° opening offers easy access for maintenance, while the included galvanised mounting plate simplifies secure installation.
Key Features of the Live Electrical IP65 Metal Enclosure 500x400x250mm
- IP65 Protection – Fully sealed against dust and water ingress, making it suitable for demanding environments.
- Heavy-Duty Steel Construction – 1.2mm-1.5mm thick steel ensures maximum strength and impact resistance.
- Galvanised Mounting Plate – Provides a stable and secure base for component installation.
- Water-Tight Polyurethane Foamed Gasket – Ensures optimal moisture protection.
- 120° Hinged Door – Features steel hinges for convenient access and maintenance.
- Epoxy Powder Coated (RAL7035) – Enhances corrosion resistance and provides a clean, professional finish.
- Compliant with BS EN 61439-3 – Meets industry standards for safety and performance.
Technical Specifications of the Live Electrical EN5040/250 IP65 Metal Enclosure
- Material Thickness: 1.2mm – 1.5mm
- Finish: Epoxy Powder Paint (RAL7035)

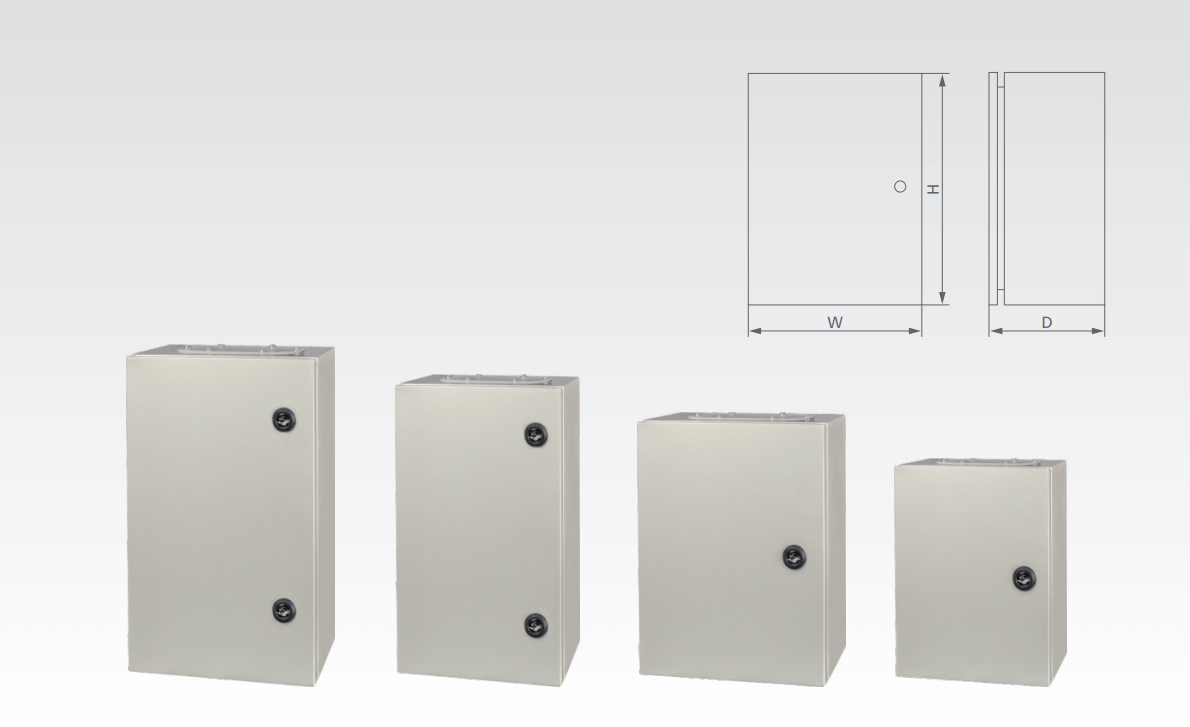

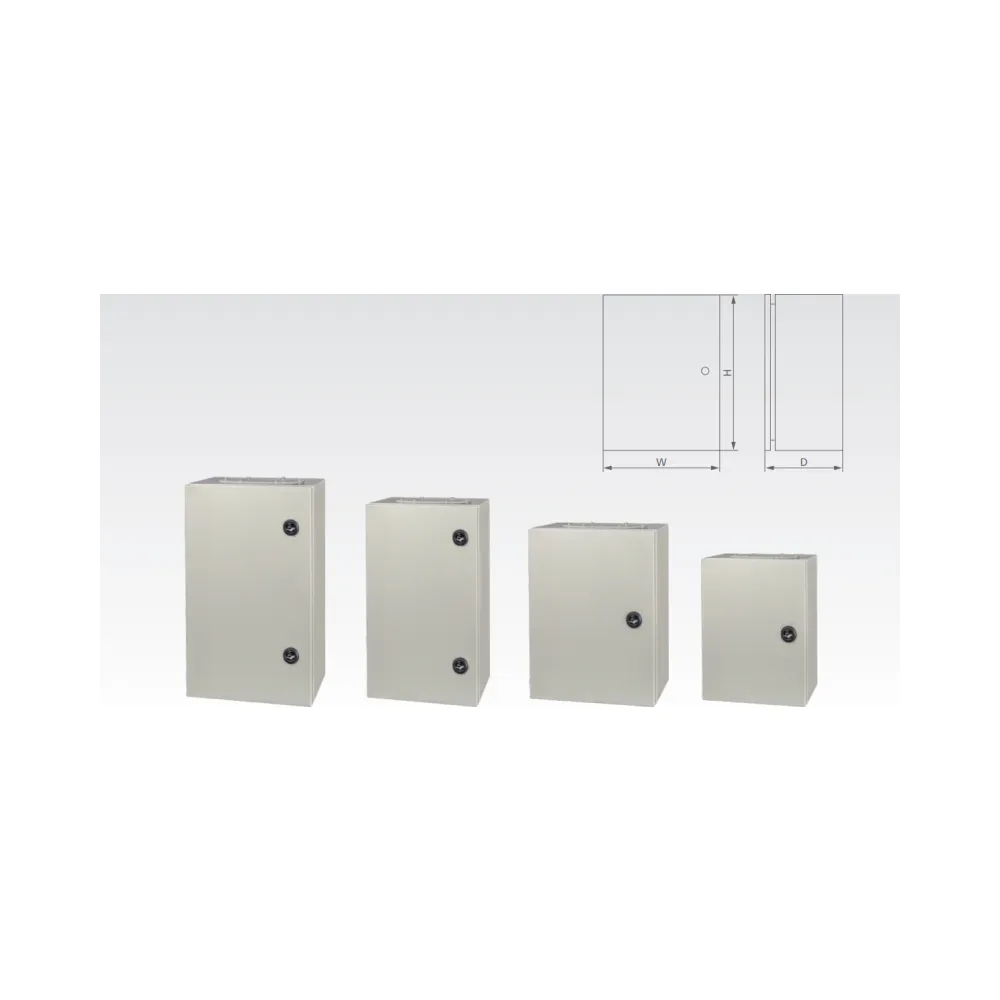

- Dimensions:
- Height: 500mm
- Width: 400mm
- Depth: 250mm
- Ingress Protection: IP65 (Dust & Water Resistant)
- Mounting Plate: Galvanised Steel
- Cover Opening Angle: 120°
- Hinges: Steel
- Compliance: BS EN 61439-3
Applications
- Industrial & Commercial Electrical Installations – Provides secure housing for control panels, wiring, and automation systems.
- Outdoor & Harsh Environments – IP65-rated protection ensures resistance to dust, water, and corrosion.
- Control & Automation Panels – Ideal for housing PLCs, relays, and power distribution components.
- Data & Communication Systems – Protects sensitive electronics from environmental damage.
Why Choose the Live Electrical EN5040/250 IP65 Metal Enclosure?
- Compact yet spacious design for flexible applications.
- Heavy-duty construction ensures long-term performance in harsh environments.
- IP65-rated protection provides resistance to dust and water ingress.
- Galvanised mounting plate allows for secure and structured component installation.
- Complies with BS EN 61439-3, ensuring safety and industry compliance.
Summary
The Live Electrical EN5040/250 IP65 Metal Enclosure is a durable, weatherproof electrical housing, designed for industrial, commercial, and outdoor applications. Featuring IP65-rated dust and water protection, a galvanised mounting plate, and a polyurethane foamed gasket, this RAL7035 powder-coated steel enclosure ensures long-lasting performance and compliance with BS EN 61439-3.
