Description

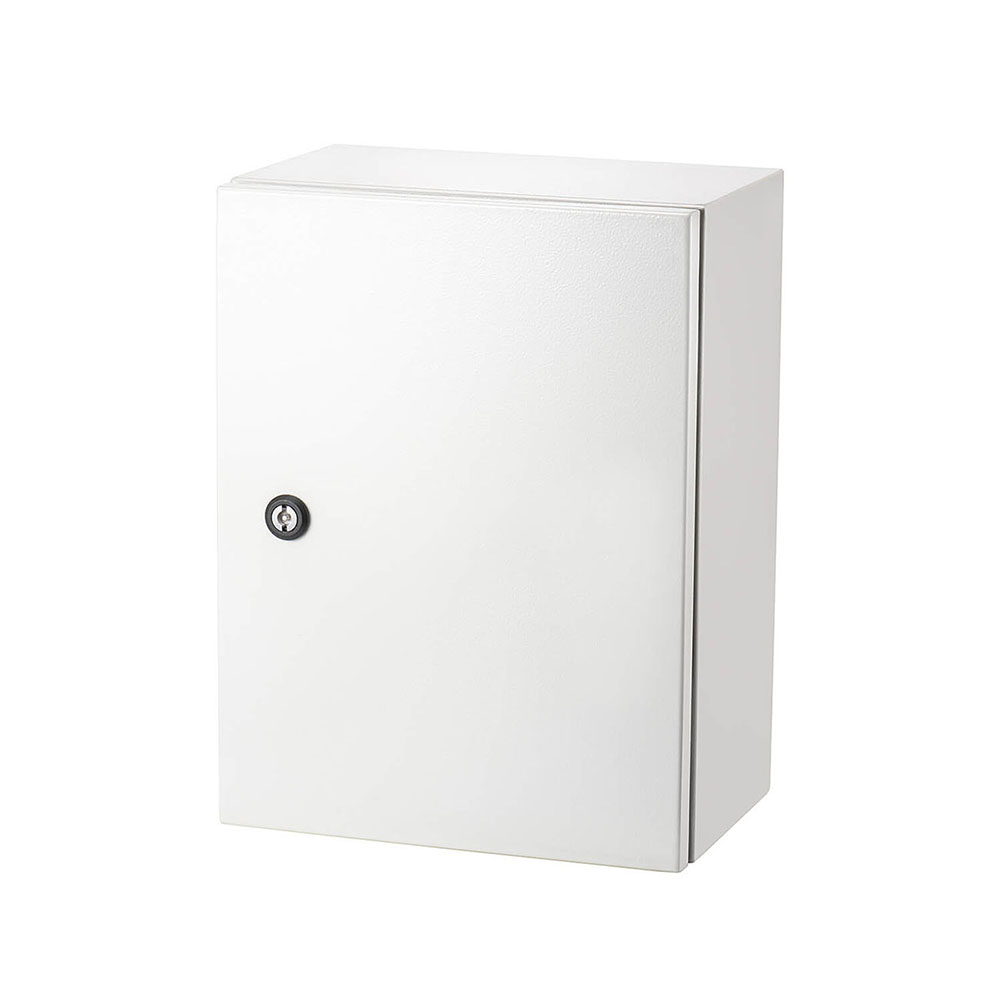

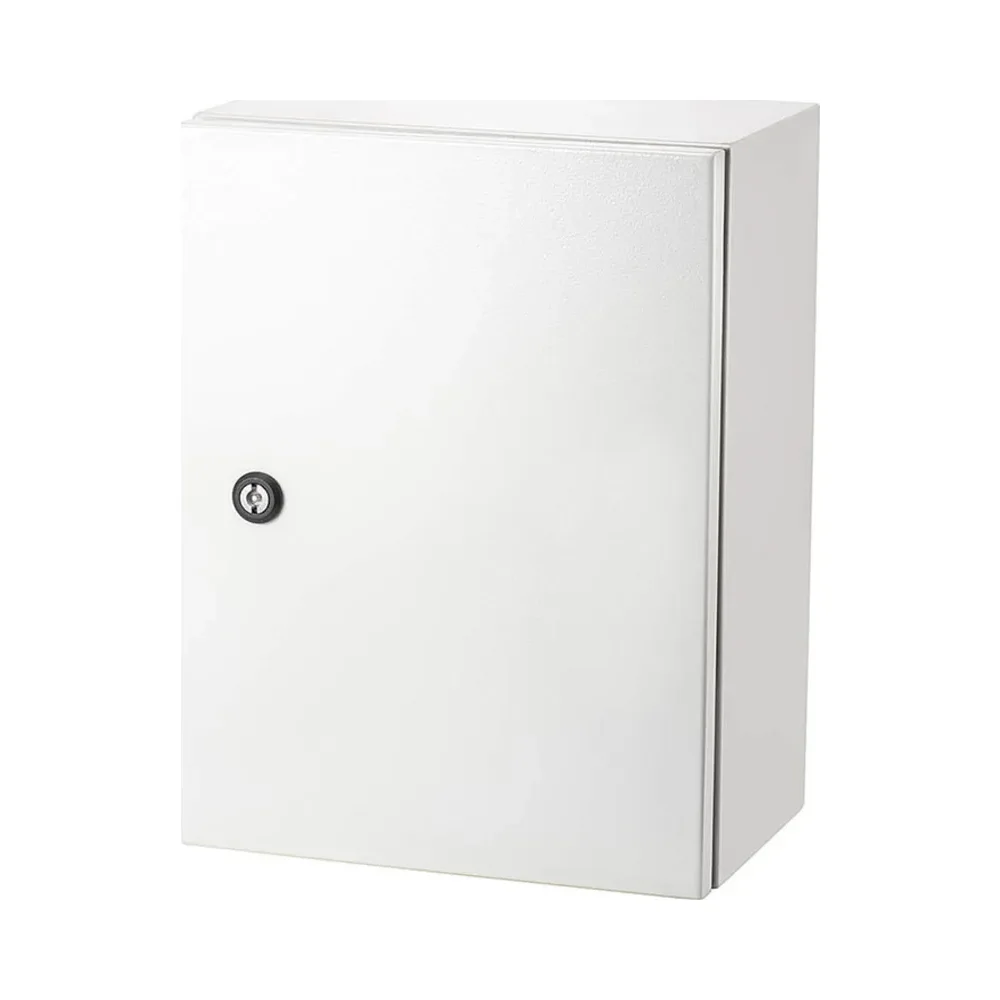

IP65 Metal Enclosure – 300 x 300 x 200mm
Compact & Weatherproof Electrical Enclosure for Secure Installations – Live Electrical IP65 Metal Enclosure 300x300x200mm
Live Electrical EN3030/200
The Live Electrical EN3030/200 IP65 Metal Enclosure is a durable and high-performance electrical housing, designed for commercial, industrial, and outdoor applications. Engineered with 1.2mm-1.5mm steel and finished in RAL7035 epoxy powder paint, this IP65-rated enclosure ensures maximum protection against dust and water ingress.
Featuring a polyurethane foamed gasket, this enclosure guarantees watertight sealing, while the continuously hinged cover with a 120° opening allows for easy access to internal components. The included galvanised mounting plate simplifies secure installation of electrical systems.
Key Features of the Live Electrical EN3030/200 IP65 Metal Enclosure
- IP65 Protection – Fully sealed against dust and water ingress, making it ideal for harsh environments.
- Heavy-Duty Steel Construction – Built from 1.2mm-1.5mm thick steel for maximum durability and impact resistance.
- Galvanised Mounting Plate – Ensures secure component installation and organisation.
- Water-Tight Polyurethane Foamed Gasket – Provides optimal sealing to prevent moisture ingress.
- 120° Hinged Door – Designed for convenient access with strong steel hinges.
- Epoxy Powder Coated (RAL7035) – Enhances corrosion resistance and maintains a clean, modern appearance.
- Compliant with BS EN 61439-3 – Meets industry regulations for electrical enclosures.
Technical Specifications of the Live Electrical IP65 Metal Enclosure 300x300x200mm
- Material Thickness: 1.2mm – 1.5mm
- Finish: Epoxy Powder Paint (RAL7035)

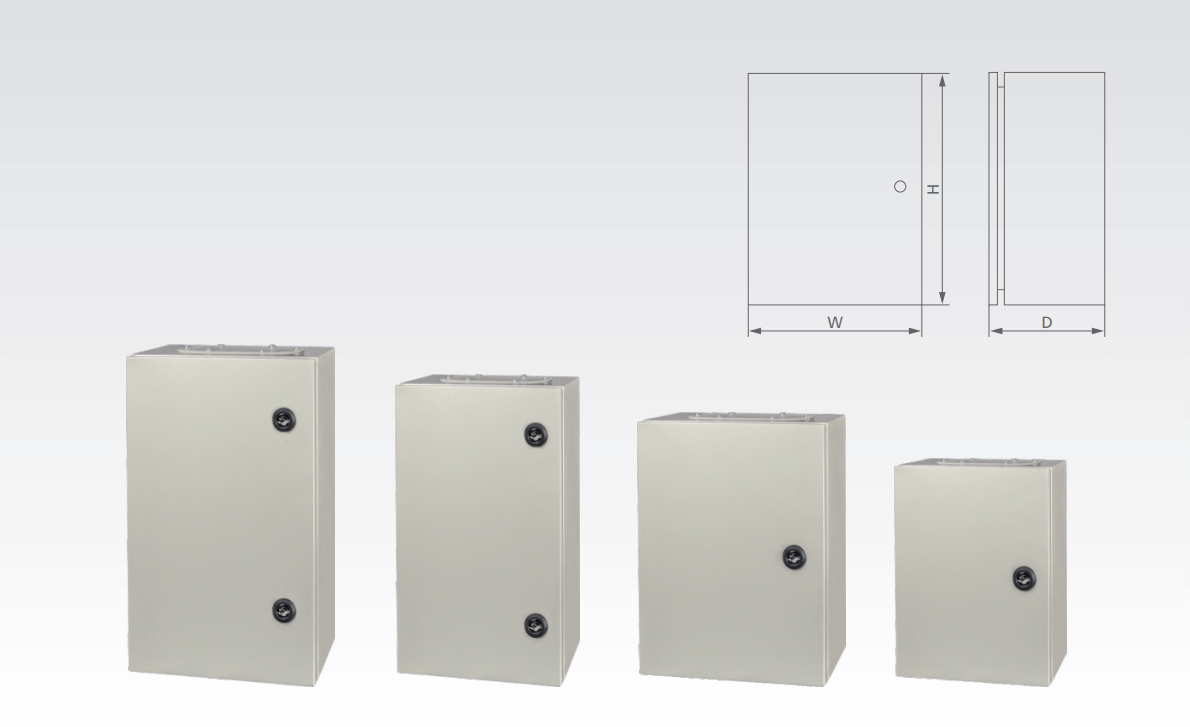

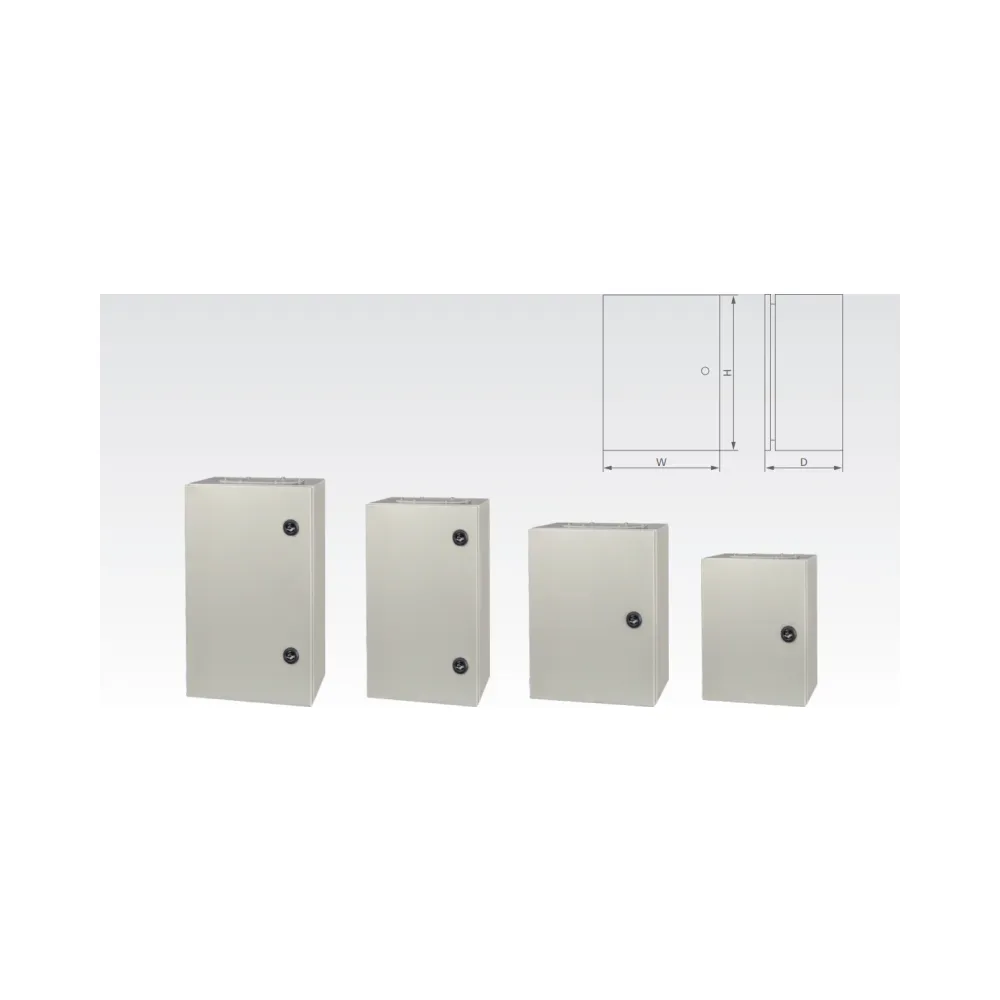

- Dimensions:
- Height: 300mm
- Width: 300mm
- Depth: 200mm
- Ingress Protection: IP65 (Dust & Water Resistant)
- Mounting Plate: Galvanised Steel
- Cover Opening Angle: 120°
- Hinges: Steel
- Compliance: BS EN 61439-3
Applications
- Industrial & Commercial Electrical Installations – Provides secure housing for control systems, wiring, and electrical components.
- Outdoor & Harsh Environments – IP65-rated protection ensures resistance to dust, water, and corrosion.
- Control & Automation Panels – Ideal for housing PLCs, relays, and power distribution units.
- Data & Communication Systems – Protects sensitive electronics from environmental exposure.
Why Choose the Live Electrical EN3030/200 IP65 Metal Enclosure?
- Compact and space-efficient design for versatile electrical applications.
- Robust and weatherproof construction ensures long-term performance.
- IP65-rated protection provides resistance to dust and water ingress.
- Galvanised mounting plate enables secure and structured component installation.
- Complies with BS EN 61439-3, ensuring safety and industry compliance.
Summary
The Live Electrical IP65 Metal Enclosure 300x300x200mm is a compact, durable, and weatherproof electrical housing, designed for industrial, commercial, and outdoor applications. Featuring IP65-rated dust and water protection, a galvanised mounting plate, and a polyurethane foamed gasket, this RAL7035 powder-coated steel enclosure ensures long-lasting performance and compliance with BS EN 61439-3.
