Description

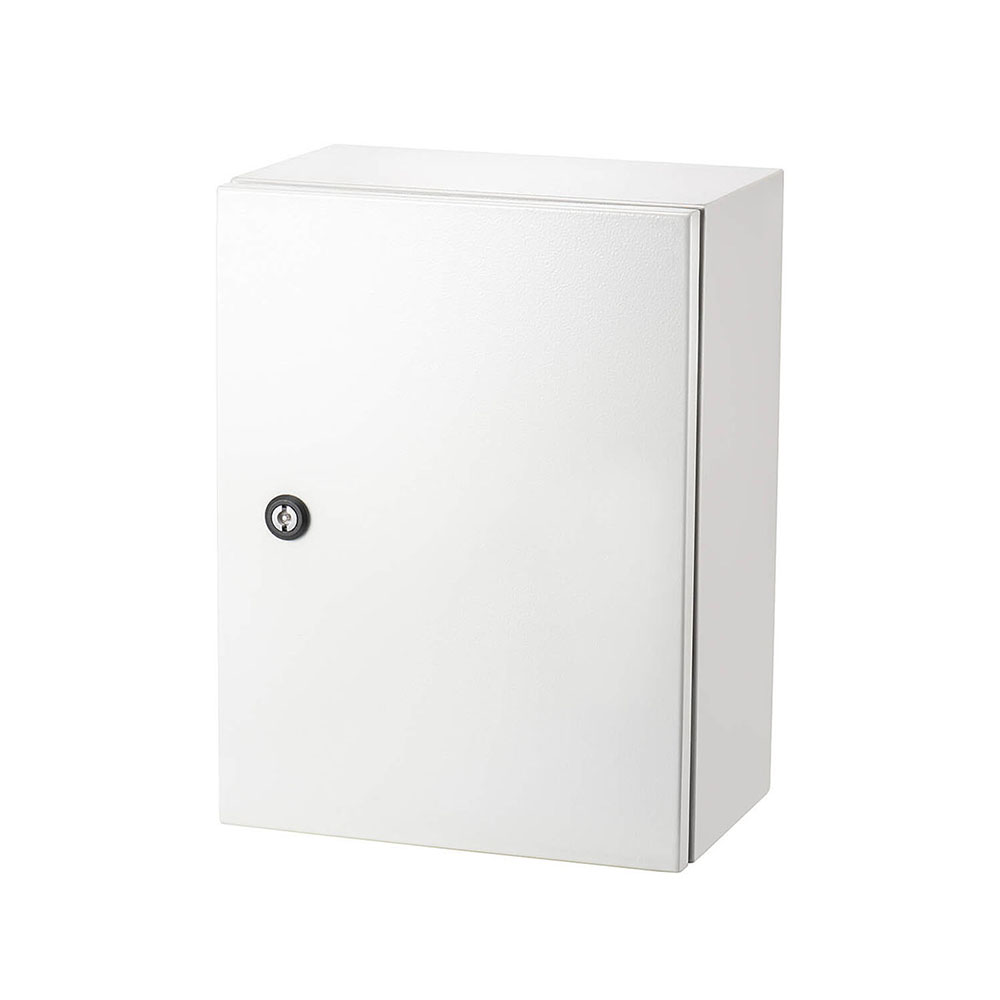

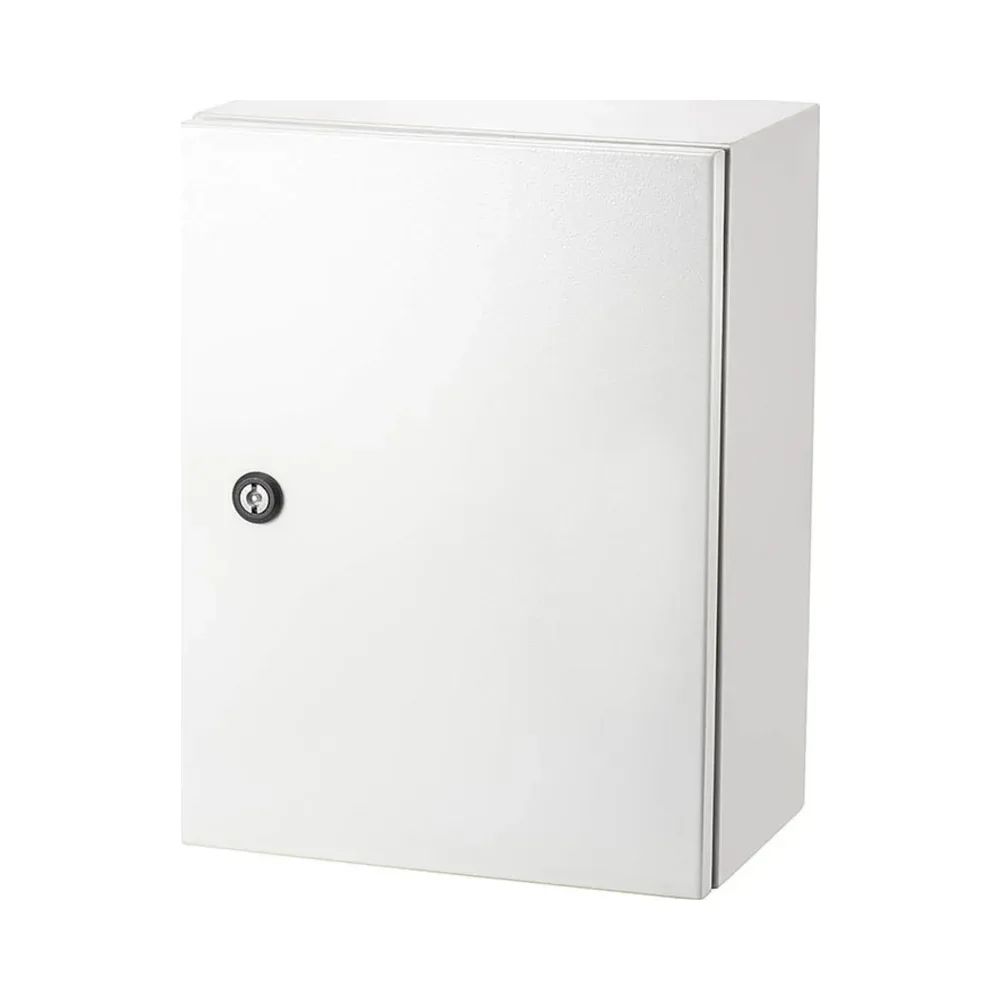

IP65 Metal Enclosure – 1200 x 800 x 300mm
Durable & Secure Electrical Enclosure for Industrial Applications – Live Electrical EN12080/300 IP65 Metal Enclosure 1200x800x300mm
Live Electrical EN12080/300
The Live Electrical EN12080/300 IP65 Metal Enclosure is a robust and weather-resistant solution, designed for housing electrical components in industrial and commercial environments. Finished in epoxy powder paint (RAL7035), this enclosure provides excellent corrosion resistance, while the galvanised mounting plate ensures a strong and reliable installation.
The IP65-rated construction protects against dust and water ingress, making it ideal for both indoor and outdoor use. With a continuously hinged cover and polyurethane foamed gasket, it guarantees full water-tightness and a secure, weatherproof seal.
Key Features
- IP65 Protection – Fully sealed against dust and water ingress, ensuring safe operation in harsh environments.
- Galvanised Mounting Plate – Provides durability and easy equipment installation.
- High-Quality Finish – Epoxy powder-coated to RAL7035, offering corrosion resistance.
- Water-Tight Seal – Polyurethane foamed gasket ensures maximum sealing efficiency.
- Continuously Hinged Cover – Features steel hinges for smooth 120° opening.
- Heavy-Duty Steel Construction – Material thickness 1.2mm-1.5mm, providing high impact resistance.
- Compliant with BS EN 61439-3 – Meets industry standards for electrical enclosures.
Technical Specifications
- Material Thickness: 1.2mm – 1.5mm
- Finish: Epoxy Powder Paint (RAL7035)

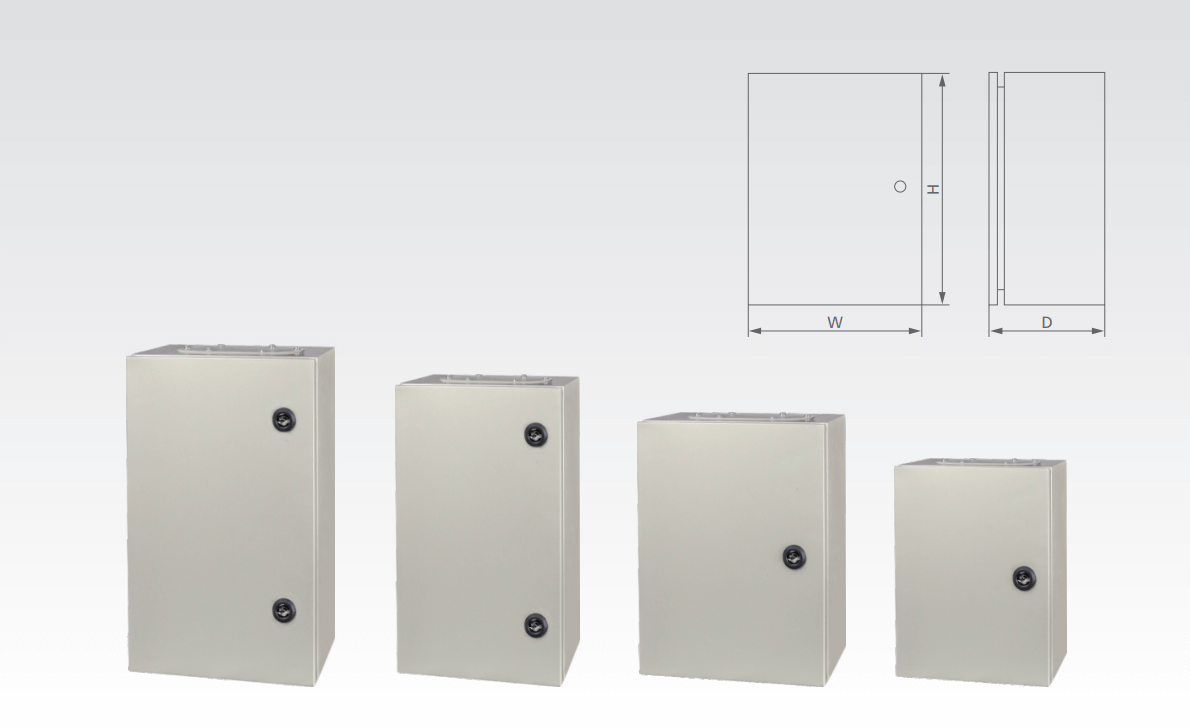

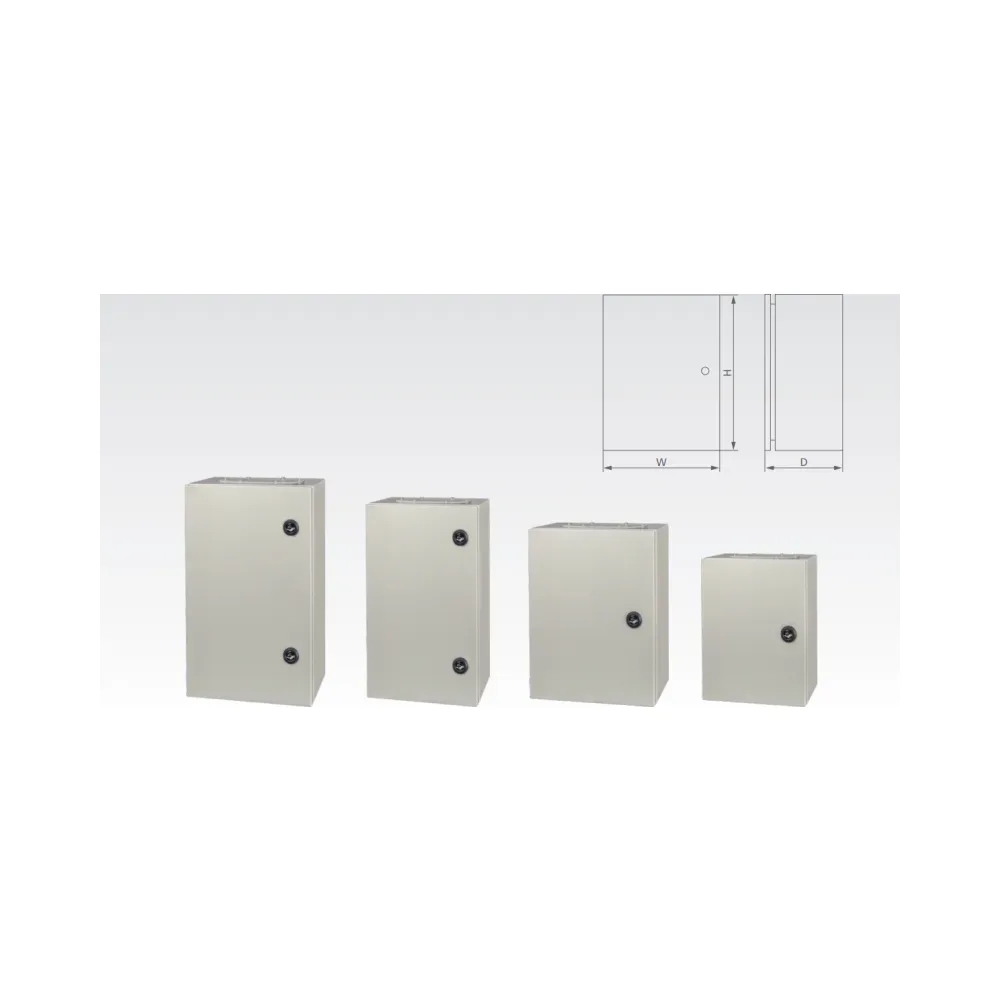

- Dimensions:
- Height: 1200mm
- Width: 800mm
- Depth: 300mm
- Ingress Protection: IP65 (Dust & Water Resistant)
- Mounting Plate: Galvanised Steel
- Cover Opening Angle: 120°
- Hinges: Steel
- Compliance: BS EN 61439-3
Applications
- Industrial & Commercial Installations – Provides secure housing for electrical components.
- Outdoor & Harsh Environments – IP65 protection ensures reliable performance in challenging conditions.
- Data & Communication Systems – Protects sensitive equipment from dust, moisture, and physical damage.
- Automation & Control Panels – Ideal for housing PLCs, relays, and industrial automation components.
Why Choose the Live Electrical EN12080/300 IP65 Metal Enclosure?
- Heavy-duty, weather-resistant construction for maximum protection.
- Spacious interior for secure mounting of electrical equipment.
- Galvanised mounting plate included, making installation quick and efficient.
- Meets BS EN 61439-3 standards for safe and compliant electrical housing.
- Ideal for industrial, commercial, and outdoor applications.
Summary
The Live Electrical EN12080/300 IP65 Metal Enclosure 1200x800x300mm is a durable and weatherproof enclosure, designed for industrial and commercial electrical installations. Featuring IP65 protection, a galvanised mounting plate, and a polyurethane foamed gasket for full water-tightness, this RAL7035 powder-coated enclosure ensures secure housing for electrical components in harsh environments. Compliant with BS EN 61439-3, it offers 120° hinged access for easy installation and maintenance.
