Live Electrical EMCU4-SP Metal Enclosure with Type 2 SPD and 100A Main Switch

SKU: EMCU4-SP
8 In stock
More available within 1-3 working days*
Confirm Availability

W:110mm H:175mm D:80mm

Fully enclosed metal construction body with drop down metal cover and metal lid

Fitted with Earth terminal bar

Circular cable entry knock-outs on the top and bottom

Modern style finished in white polyester powder coating to RAL9010

Live Electrical EMCU4-SP is a metal SPD enclosure with a 100A main switch. Ideal for local isolation and surge protection in EV or sub-circuit applications. Easy to mount, fully certified, and ready to install.

£33.99 + VAT

(incl. VAT £40.79)

— OR —

Description

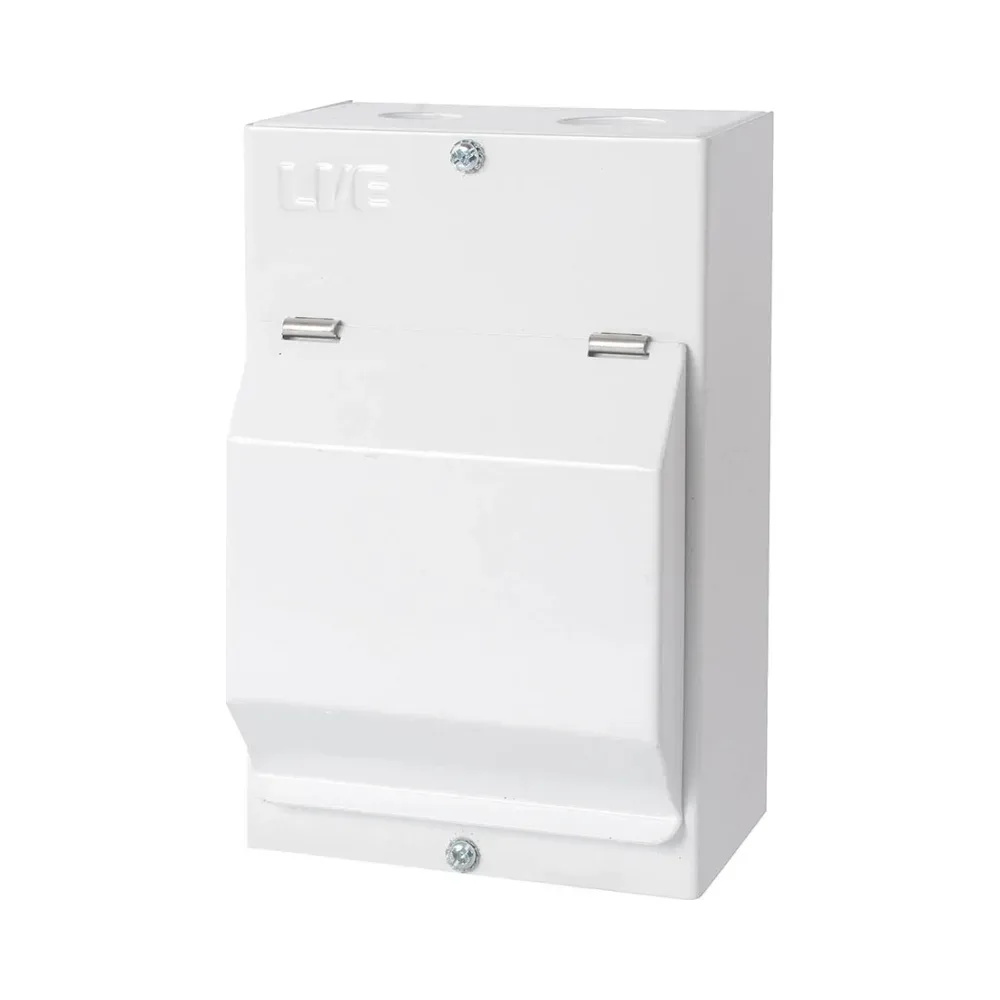

Compact Metal Enclosure with Built-in Surge Protection and Main Isolator

Live Electrical EMCU4-SP Metal Enclosure with Type 2 SPD and 100A Main Switch

The Live Electrical EMCU4-SP is a ready-to-use metal enclosure. It comes pre-fitted with a Type 2 Surge Protection Device (SPD) and a 100A double pole main switch. This unit is ideal for use with EV chargers, garages, or local circuit isolation.

Its sturdy metal design includes a hinged lid and white powder-coated finish. Knockouts at the top and bottom make wiring quick and easy. The enclosure is certified to BS EN standards for full safety and peace of mind.


🔧 Key Features – EMCU4-SP Enclosure with SPD

  • Pre-installed 100A DP main switch and Type 2 SPD
  • Tough steel body with hinged drop-down lid
  • Complies with BS EN 61439-3, 60947-3 & 61643-11
  • Top and bottom cable entry via circular knockouts
  • Built-in earth bar for reliable earthing
  • Raised keyhole mounts for easy wall installation
  • White RAL9010 finish for a clean, modern look
  • 📐 Dimensions: 110mm (W) x 175mm (H) x 80mm (D)

📝 Summary

The EMCU4-SP is a compact metal enclosure fitted with a Type 2 SPD and 100A isolator switch. Designed for quick and safe surge protection in smaller installations, it offers certified performance in a simple, installer-friendly design.


Discover our extensive range of Live Electrical Products

Experience the quality and reliability of Live Electrical across all your electrical needs.

Downloads

View Product Data Sheet

Additional information

Weight 0.0001 kg
Type of SPD

2

Voltage

230V

Discharge Capacity

20kA / 40kA

Brand

Live Electrical

Product

SPD – Surge Protection

Earthing System

TT, TN-S

Features

With Enclosure
