⚡ 50A 1000V DC MCB for Solar and High-Voltage DC Protection

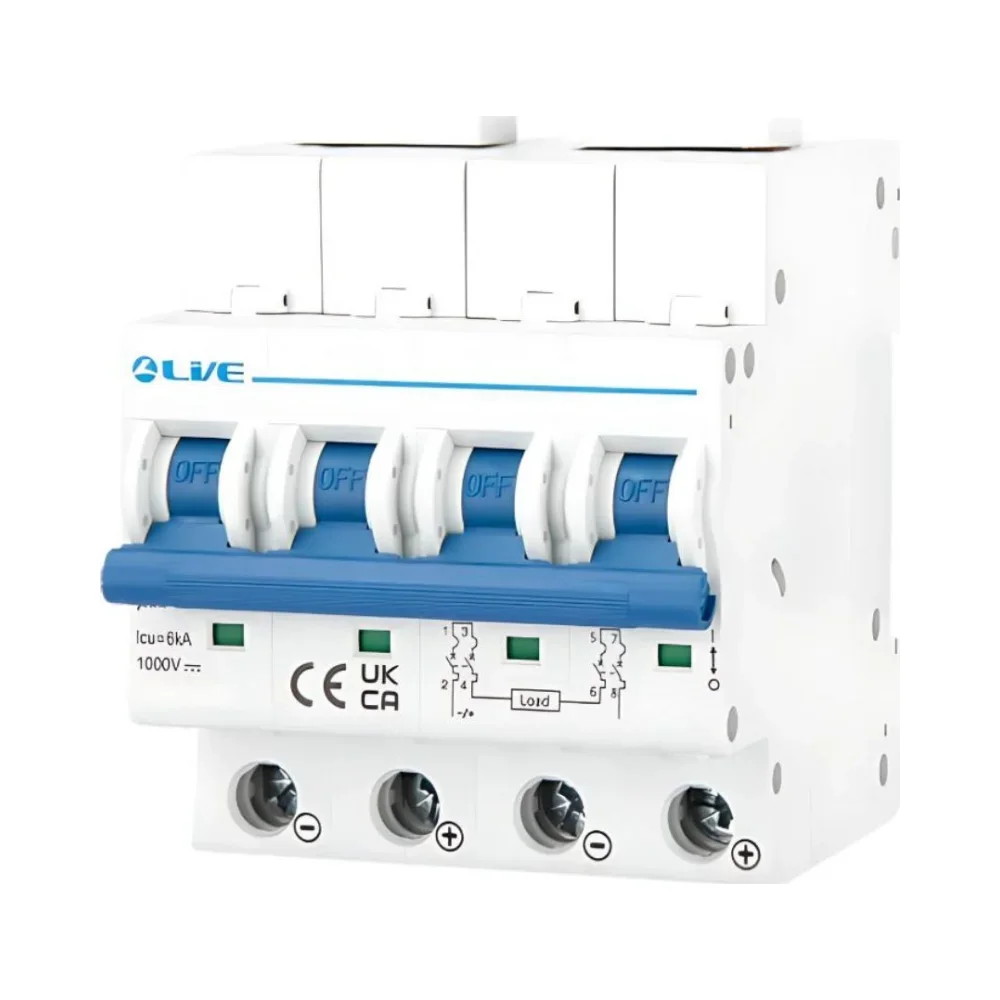

DCM450C – Live Electrical 4 Pole 50A C Curve 6kA DC MCB
The Live Electrical DCM450C is a 4 Pole 50A DC miniature circuit breaker rated for 1000V DC. Ideal for high-voltage solar PV arrays and commercial DC power systems, it provides certified protection against overloads and short circuits in demanding environments.
It features a thermo-magnetic release with C curve tripping and a 6kA breaking capacity. With IP20 contact protection and 16mm² max terminal capacity, this MCB is designed for DIN rail installation and complies with IEC/EN 60898-2 standards for DC safety.
✨ Key Features – Live Electrical DCM450C 50A DC MCB
- 4-pole DC miniature circuit breaker
- Rated current: 50A
- Rated voltage: 1000V DC
- Breaking capacity: 6kA
- C Curve thermo-magnetic tripping
- DIN rail mounting (TH35-7.5 compatible)
- IP20 contact protection
- Max terminal capacity: 16mm²
- Tested to IEC/EN 60898-2
Technical Overview – Live Electrical DCM450C DC MCB
- Model: DCM450C
- Poles: 4
- Rated Current: 50A
- Rated Voltage: 1000V DC
- Breaking Capacity: 6kA
- Trip Characteristic: C (Thermo-magnetic)
- IP Rating: IP20
- Max Terminal Capacity: 16mm²
- Standard: IEC/EN 60898-2
✅ Why Choose This Product?
The DCM450C is ideal for solar PV and high-voltage DC installations requiring reliable 4-pole protection. Its 1000V DC rating, compact form, and standards compliance make it a robust choice for renewable and commercial energy systems.
About Live Electrical
Live Electrical designs protection solutions for modern electrical systems. Their DC MCBs are trusted for use in solar, battery storage, and industrial DC applications across the UK.
️ Guarantee & Compliance
Compliant with IEC/EN 60898-2. Install using correct torque and mounting practices to ensure safe, long-term operation in high-voltage environments.
