⚡ 32A 1000V DC Circuit Breaker for Solar and Battery Systems

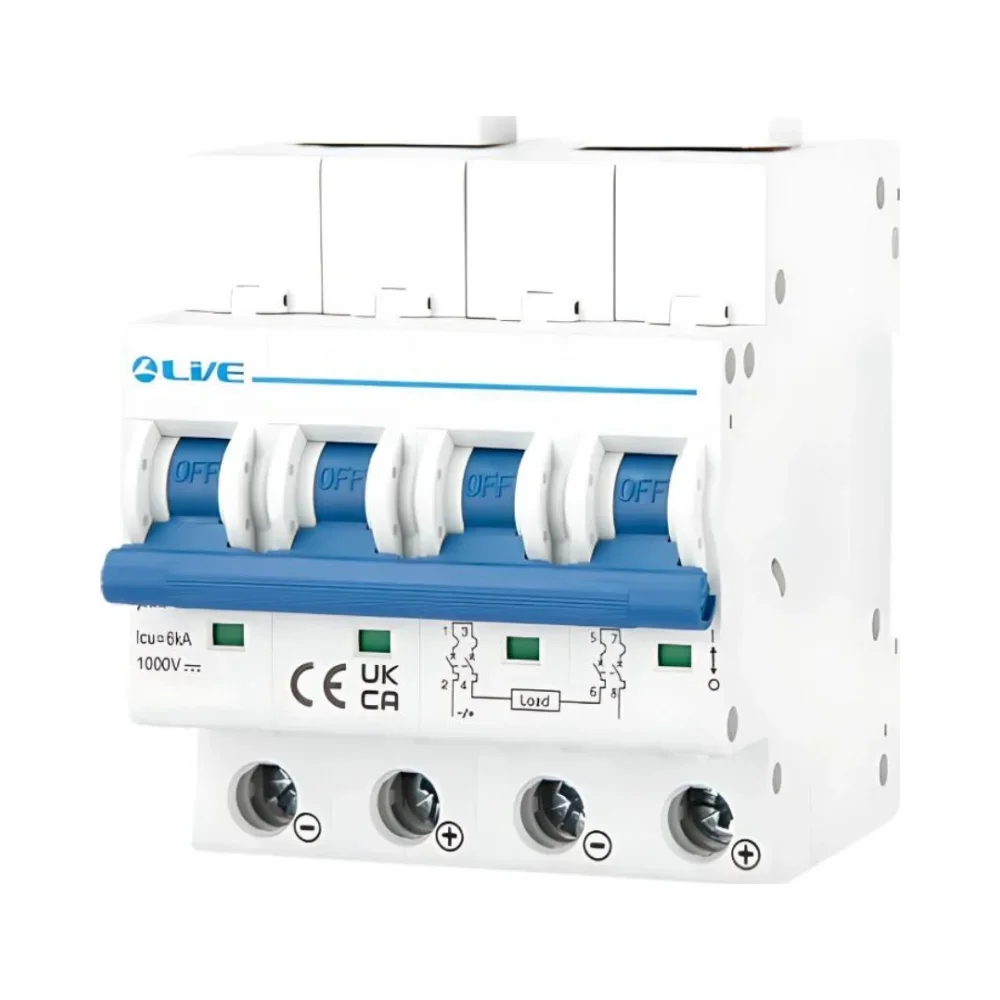

DCM432C – Live Electrical 4 Pole 32A C Curve 6kA DC MCB
The Live Electrical DCM432C is a 4 Pole 32A miniature circuit breaker rated at 1000V DC, designed to protect high-voltage DC installations including solar PV arrays, battery systems, and commercial DC infrastructure. It offers reliable protection against overloads and short circuits.
With a C curve thermo-magnetic trip and 6kA breaking capacity, this device ensures safe disconnection. It installs easily on TH35-7.5 DIN rails and supports up to 16mm² cable terminals. Certified to IEC/EN 60898-2 and rated IP20 for safe contact protection.
✨ Key Features – Live Electrical DCM432C 32A DC MCB
- 4-pole DC miniature circuit breaker
- Rated current: 32A
- Rated voltage: 1000V DC
- 6kA breaking capacity
- C Curve thermo-magnetic tripping
- DIN rail mounting (TH35-7.5)
- IP20 contact protection
- Max terminal capacity: 16mm²
- Complies with IEC/EN 60898-2
Technical Overview – Live Electrical DCM432C DC MCB
- Model: DCM432C
- Poles: 4
- Rated Current: 32A
- Rated Voltage: 1000V DC
- Breaking Capacity: 6kA
- Trip Characteristic: C
- Standard: IEC/EN 60898-2
- IP Rating: IP20
- Max Terminal Capacity: 16mm²
✅ Why Choose This Product?
The DCM432C offers safe and compact protection for 32A high-voltage DC circuits. Ideal for commercial PV setups, energy storage systems, and DC switchboards, it delivers peace of mind where 1000V DC protection is required.
About Live Electrical
Live Electrical supplies protection devices trusted by UK professionals. Their DC MCB range is suited to renewable energy systems and high-voltage DC installations.
️ Guarantee & Compliance
Fully compliant with IEC/EN 60898-2. For optimal performance, install according to the manufacturer’s recommended practices and torque specifications.
