⚡ 25A 1000V DC Circuit Breaker for Solar and DC Systems

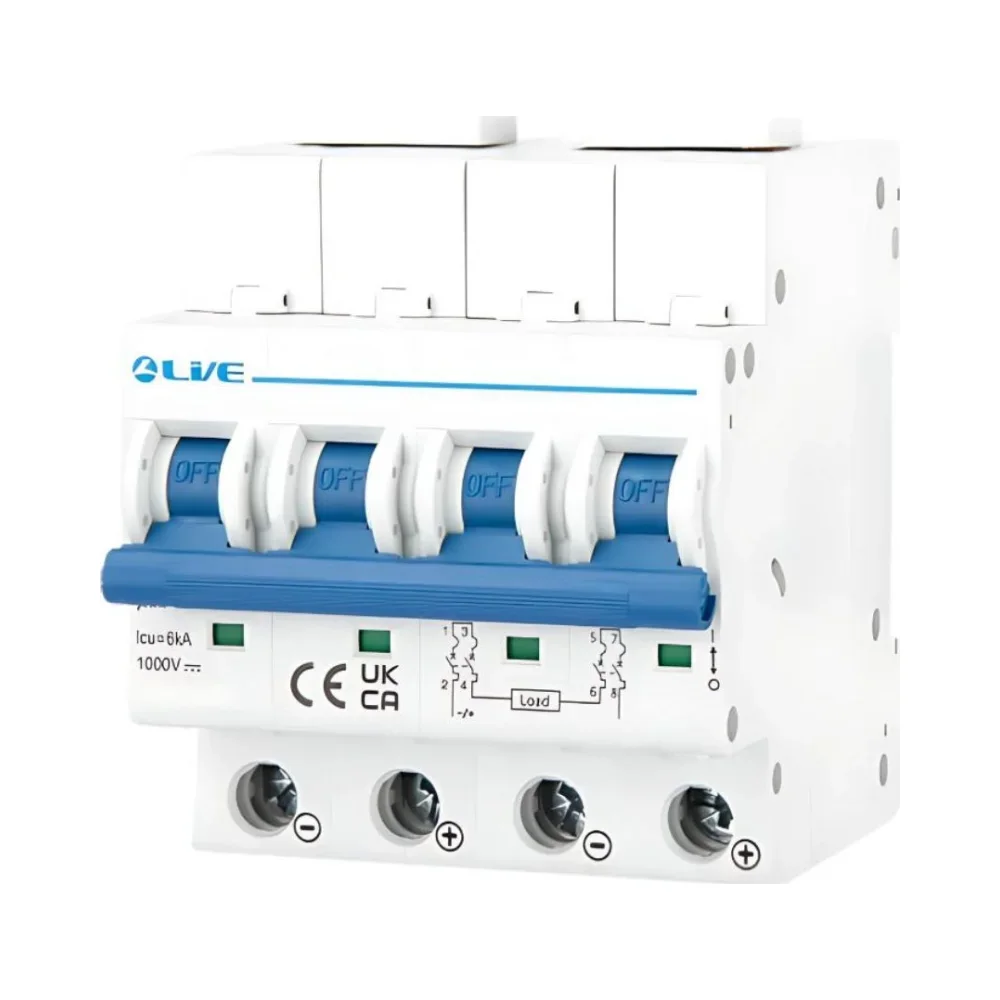

DCM425C – Live Electrical 4 Pole 25A C Curve 6kA DC MCB
The Live Electrical DCM425C is a 4 Pole 25A miniature circuit breaker rated for 1000V DC, offering safe and effective protection for solar panel arrays, battery banks, and commercial DC installations. It provides robust performance in high-voltage DC systems.
This MCB uses a thermo-magnetic C curve trip characteristic and delivers a 6kA breaking capacity. It features IP20 contact protection, supports 16mm² cable terminals, and installs easily on standard TH35-7.5 DIN rails. Certified to IEC/EN 60898-2 for DC circuit safety and reliability.
✨ Key Features – Live Electrical DCM425C 25A 1000V DC MCB
- 4-pole DC miniature circuit breaker
- Rated current: 25A
- Rated voltage: 1000V DC
- 6kA breaking capacity
- C Curve thermo-magnetic tripping
- DIN rail mounting (TH35-7.5)
- IP20 contact protection
- Max terminal capacity: 16mm²
- Tested to IEC/EN 60898-2
Technical Overview – Live Electrical DCM425C DC MCB
- Model: DCM425C
- Poles: 4
- Rated Current: 25A
- Rated Voltage: 1000V DC
- Breaking Capacity: 6kA
- Trip Characteristic: C
- Standard: IEC/EN 60898-2
- IP Rating: IP20
- Max Terminal Capacity: 16mm²
✅ Why Choose This Product?
The DCM425C offers certified protection for 25A DC circuits in high-voltage applications. It’s ideal for use in PV installations, control panels, and energy storage systems where 1000V DC reliability is essential.
About Live Electrical
Live Electrical supplies professional-grade circuit protection devices, meeting UK standards for safety and performance. Their DC MCB range is built for demanding solar and DC energy systems.
️ Guarantee & Compliance
Compliant with IEC/EN 60898-2. Install using recommended torque and rail mounting practices for maximum system reliability.
