⚡ 16A 1000V DC Circuit Breaker for Solar and Control Applications

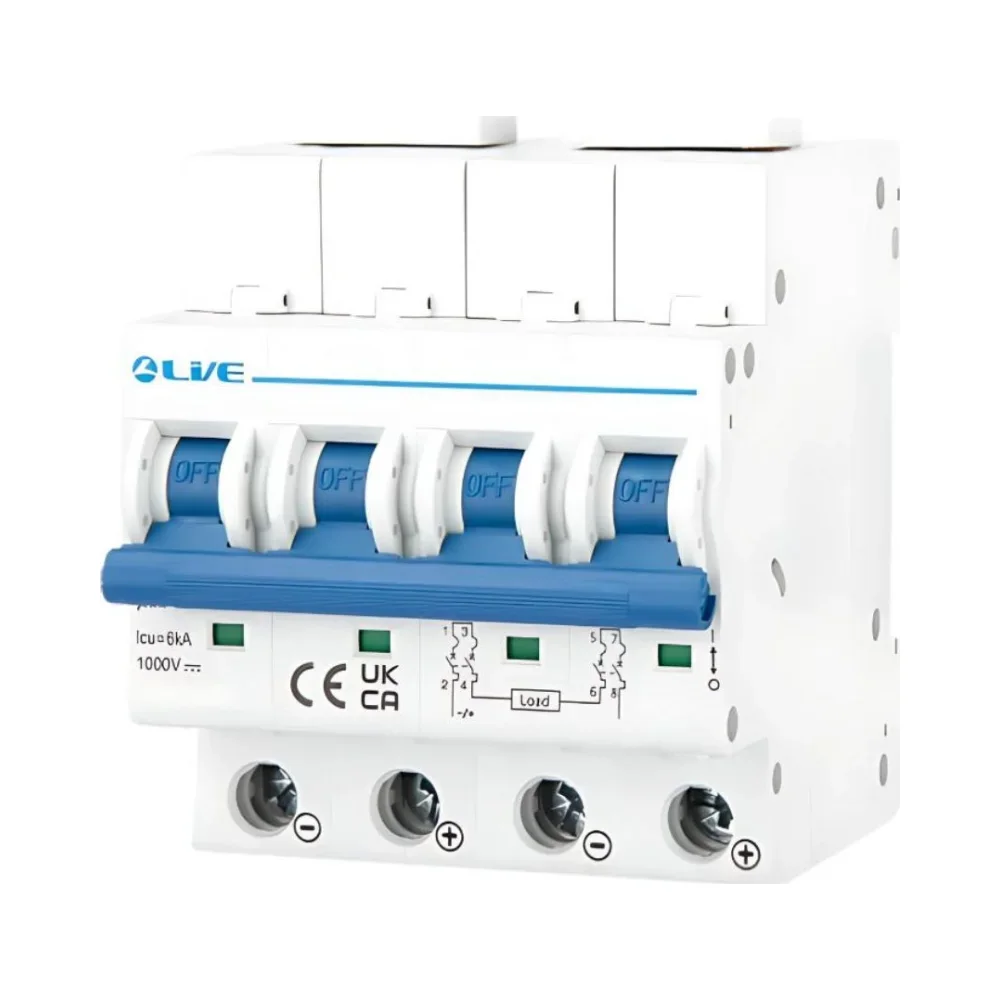

DCM416C – Live Electrical 4 Pole 16A C Curve 6kA DC MCB
The Live Electrical DCM416C is a 4 Pole 16A DC miniature circuit breaker, rated for 1000V DC. Designed for solar PV arrays, battery enclosures, and high-voltage DC panels, it delivers consistent protection against overloads and short-circuits in critical installations.
It features a C curve thermo-magnetic trip characteristic with a 6kA breaking capacity. Suitable for mounting on TH35-7.5 DIN rails, this MCB supports 16mm² cable terminals and offers IP20 contact protection. Fully tested to IEC/EN 60898-2 for safe DC circuit use.
✨ Key Features – Live Electrical DCM416C 16A DC MCB
- 4-pole DC miniature circuit breaker
- Rated current: 16A
- Rated voltage: 1000V DC
- Breaking capacity: 6kA
- C Curve thermo-magnetic tripping
- DIN rail mounting (TH35-7.5)
- IP20 contact protection
- Maximum terminal capacity: 16mm²
- Tested to IEC/EN 60898-2
Technical Overview – Live Electrical DCM416C DC MCB
- Model: DCM416C
- Poles: 4
- Rated Current: 16A
- Rated Voltage: 1000V DC
- Breaking Capacity: 6kA
- Trip Characteristic: C
- Standard: IEC/EN 60898-2
- IP Rating: IP20
- Max Terminal Capacity: 16mm²
✅ Why Choose This Product?
The DCM416C is ideal for protecting smaller 1000V DC circuits in solar combiner boxes, battery isolators, and automation panels. It offers space-saving performance in high-voltage DC environments with full regulatory compliance.
About Live Electrical
Live Electrical supplies trusted protection products for modern electrical systems. Their range of DC MCBs is built for reliability and safety in renewable and industrial DC applications.
️ Guarantee & Compliance
Certified to IEC/EN 60898-2. Ensure correct DIN rail mounting and cable torque settings for safe operation and long-term performance.
