⚡ 10A 1000V DC Circuit Breaker for Solar PV and DC Panels

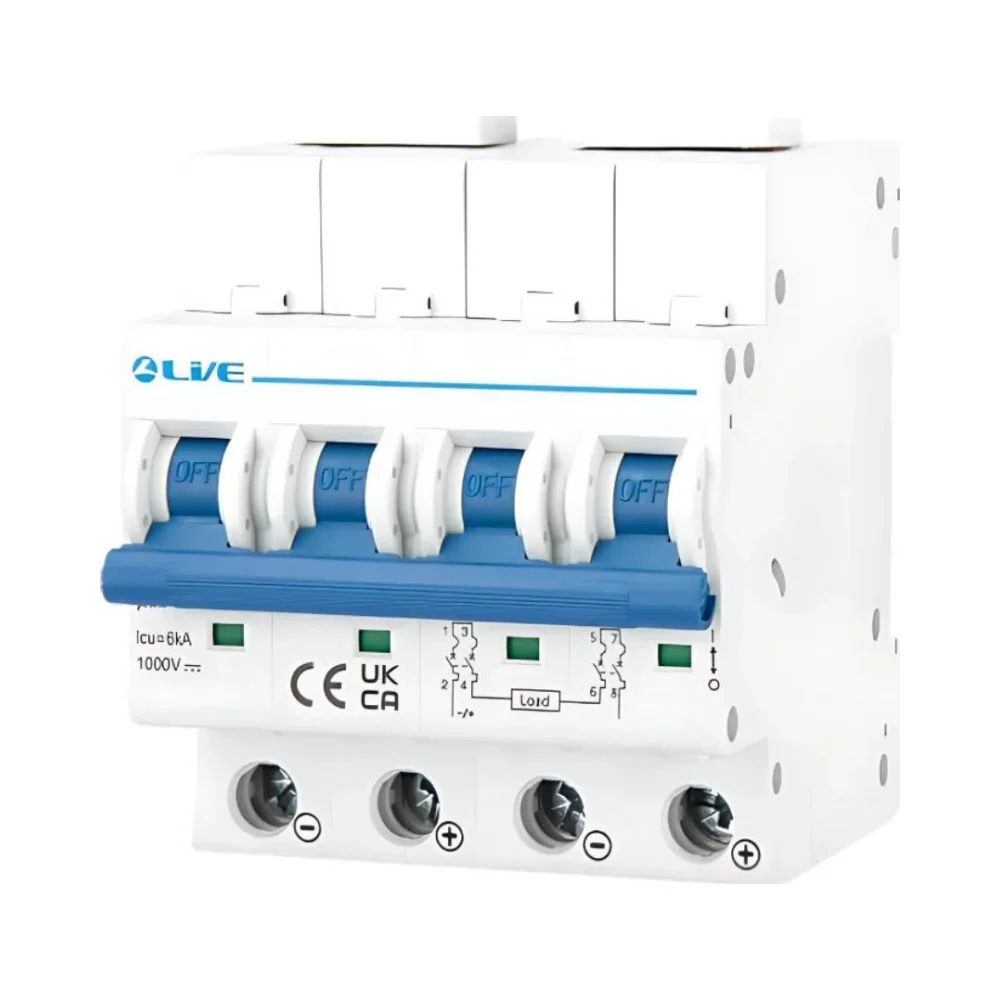

DCM410C – Live Electrical 4 Pole 10A C Curve 6kA DC MCB
The Live Electrical DCM410C is a 4 Pole 10A DC miniature circuit breaker, rated for 1000V DC. It provides reliable overload and short-circuit protection in high-voltage DC systems including solar PV arrays, battery banks, and commercial DC distribution panels.
This MCB features a C curve thermo-magnetic tripping mechanism with a 6kA breaking capacity. It mounts securely on TH35-7.5 DIN rails and supports 16mm² cable terminals. Compliant with IEC/EN 60898-2 and IP20 rated for safe installation and operation.
✨ Key Features – Live Electrical DCM410C 10A DC MCB
- 4-pole DC miniature circuit breaker
- Rated current: 10A
- Rated voltage: 1000V DC
- Breaking capacity: 6kA
- C Curve thermo-magnetic tripping
- Mounts to TH35-7.5 DIN rail
- IP20 contact protection
- Max terminal capacity: 16mm²
- Certified to IEC/EN 60898-2
Technical Overview – Live Electrical DCM410C DC MCB
- Model: DCM410C
- Poles: 4
- Rated Current: 10A
- Rated Voltage: 1000V DC
- Breaking Capacity: 6kA
- Trip Characteristic: C
- Standard: IEC/EN 60898-2
- IP Rating: IP20
- Max Terminal Capacity: 16mm²
✅ Why Choose This Product?
The DCM410C is ideal for protecting low-current, high-voltage DC systems. Suitable for use in PV string protection, battery storage circuits, or any DC installation requiring certified 1000V protection in a compact 4-pole design.
About Live Electrical
Live Electrical manufactures quality circuit protection products for solar, battery, and industrial installations. Their DC MCBs combine compact design with reliable performance for modern energy systems.
️ Guarantee & Compliance
Certified to IEC/EN 60898-2. Always install according to datasheet recommendations, including proper torque and cable sizing, to ensure safe operation.
