⚡ 50A DC Circuit Breaker for Solar and Low-Voltage Systems

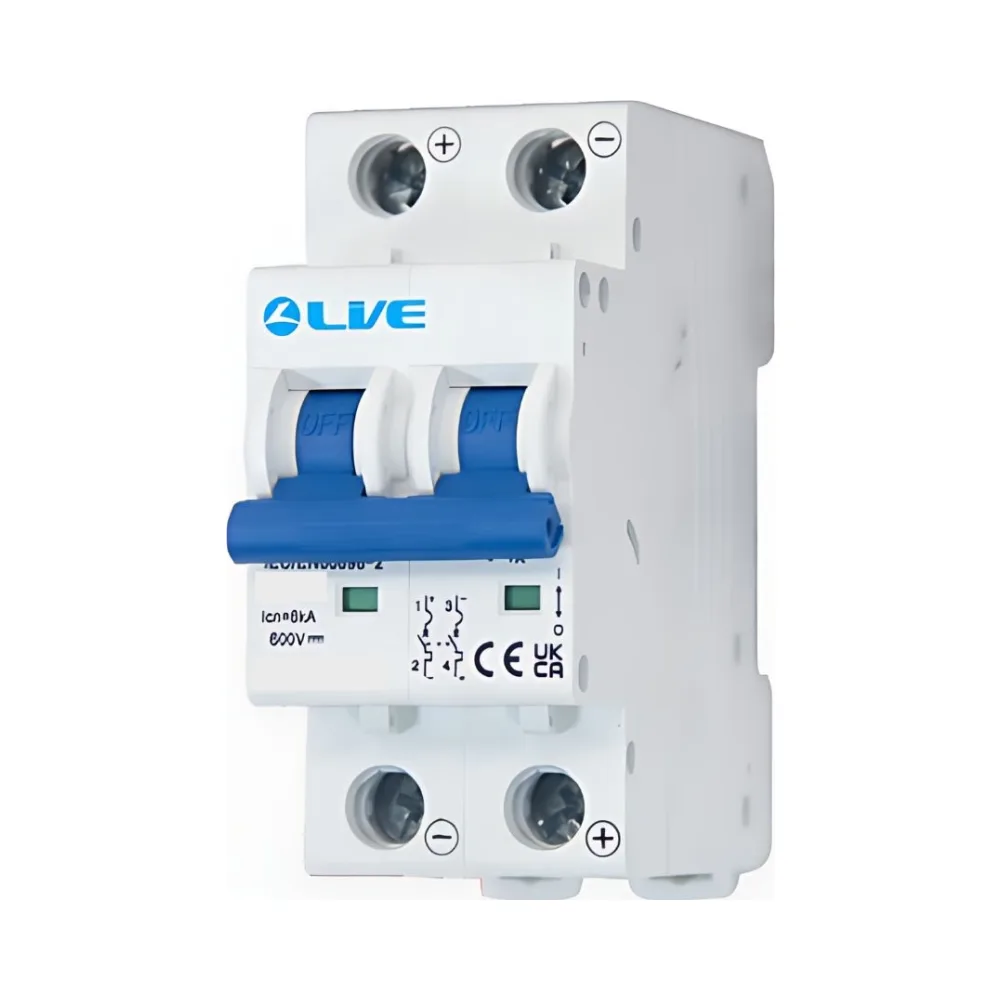

DCM250C – Live Electrical 2 Pole 50A C Curve 6kA DC MCB
The Live Electrical DCM250C is a 2 Pole 50A miniature circuit breaker designed to protect low-voltage DC installations such as solar panel strings and control systems. Rated at 600V DC and compliant with IEC/EN 60898-2, it offers certified protection from overload and short-circuit conditions in DC circuits.
Built with a C-curve thermo-magnetic trip characteristic and 6kA breaking capacity, the unit provides dependable performance in installations with moderate inrush current. It mounts easily on standard TH35-7.5 DIN rails and features IP20 contact protection with a maximum cable terminal capacity of 16mm².
✨ Key Features – Live Electrical DCM250C 50A DC MCB
- 2-pole DC miniature circuit breaker
- Rated current: 50A
- Rated voltage: 600V DC (2P)
- Breaking capacity: 6kA
- C Curve thermo-magnetic trip characteristic
- IP20 contact protection
- Conforms to IEC/EN 60898-2
- Maximum terminal capacity: 16mm²
Technical Overview – Live Electrical DCM250C DC MCB
- Model: DCM250C
- Poles: 2
- Rated Current (In): 50A
- Rated Voltage (Ue): 600V DC
- Breaking Capacity: 6kA
- Trip Characteristic: C (Thermo-magnetic)
- Standard: IEC/EN 60898-2
- IP Rating: IP20
- Max Terminal Capacity: 16mm²
- Mounting: TH35-7.5 DIN rail
✅ Why Choose This Product?
Use the DCM250C to safeguard 600V DC circuits in solar PV and control panel installations. Its 50A capacity and IEC-compliant design make it ideal for reliable low-voltage protection.
About Live Electrical
Live Electrical provides circuit protection solutions designed to meet UK and international safety standards. Their DC MCBs offer reliable performance for solar and commercial DC applications.
️ Guarantee & Compliance
Complies with IEC/EN 60898-2. For safe operation, installation must follow the guidelines in the product datasheet and ensure correct cable sizing and mounting.
