⚡ 32A DC Circuit Breaker for Solar and Low-Voltage Systems

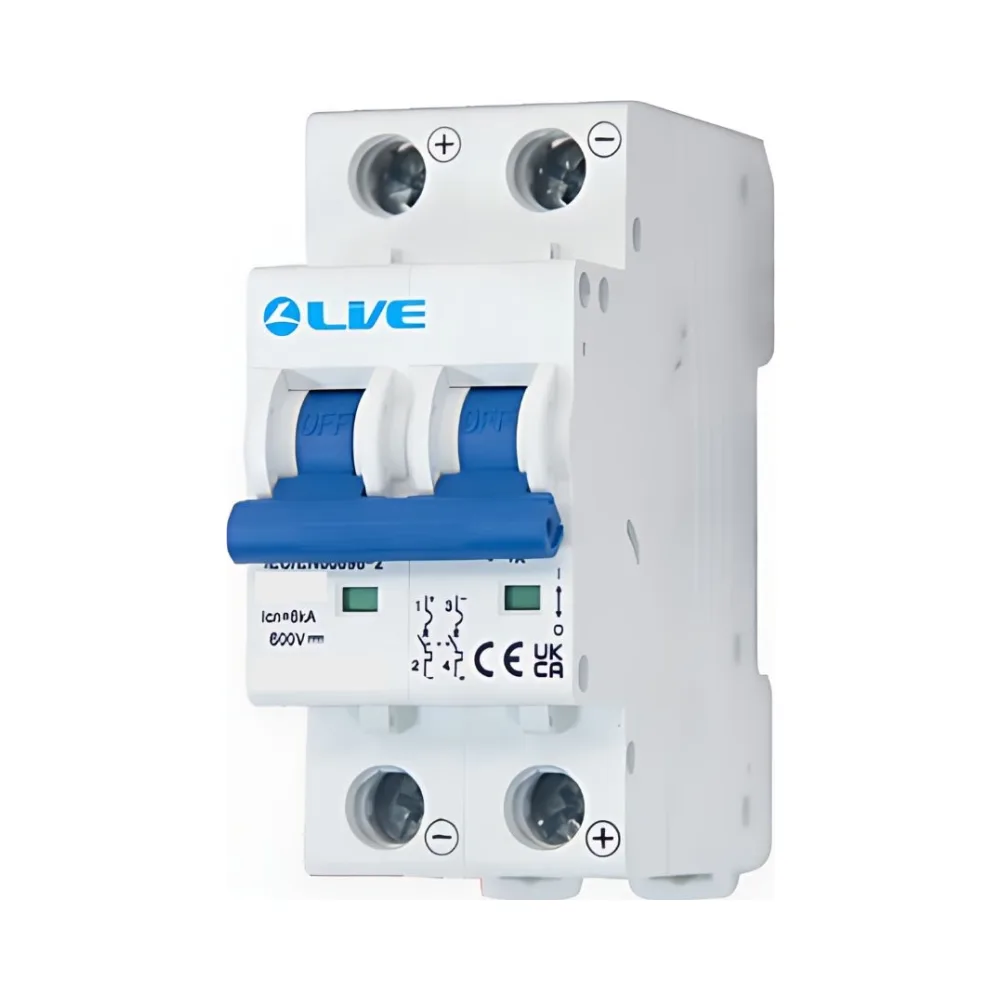

DCM232C – Live Electrical 2 Pole 32A C Curve 6kA DC MCB
The Live Electrical DCM232C is a 2 Pole DC miniature circuit breaker rated at 32A and 600V DC. Designed for low-voltage installations including solar panel arrays and DC control systems, it provides dependable protection against overloads and short circuits.
This device features a thermo-magnetic trip mechanism with a C curve characteristic and 6kA breaking capacity. Suitable for vertical installation on a TH35-7.5 DIN rail, it supports a maximum terminal capacity of 16mm² and is tested to IEC/EN 60898-2.
✨ Key Features – Live Electrical DCM232C 32A DC MCB
- 2-pole DC miniature circuit breaker
- Rated current: 32A
- Rated voltage: 600V DC
- Breaking capacity: 6kA
- C Curve thermo-magnetic tripping
- DIN rail mountable (TH35-7.5)
- IP20 contact protection
- Maximum terminal capacity: 16mm²
- Conforms to IEC/EN 60898-2
Technical Overview – Live Electrical DCM232C DC MCB
- Model: DCM232C
- Poles: 2
- Rated Current: 32A
- Rated Voltage: 600V DC
- Breaking Capacity: 6kA
- Trip Characteristic: C
- Standard: IEC/EN 60898-2
- IP Rating: IP20
- Max Terminal Capacity: 16mm²
✅ Why Choose This Product?
Ideal for solar panel systems and other DC installations, the DCM232C provides certified 32A circuit protection at 600V DC. Its compact size, C curve response, and standard rail mounting make it a trusted choice for professionals.
About Live Electrical
Live Electrical manufactures practical, regulation-compliant protection devices. Their DC MCB range is built for reliable performance in PV, battery, and control applications across the UK.
️ Guarantee & Compliance
Certified to IEC/EN 60898-2. Follow installation guidelines for correct mounting and cable connection.
