⚡ 16A DC Circuit Breaker for Solar and Low-Voltage Systems

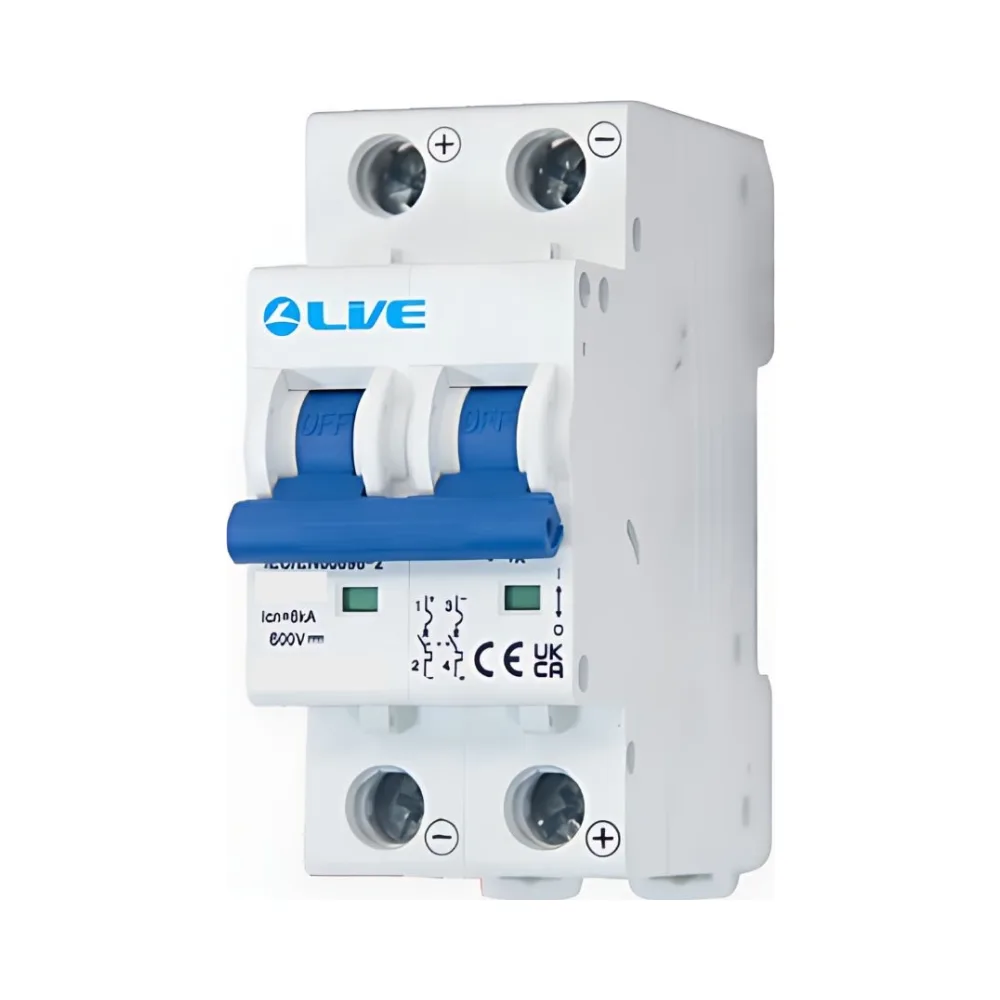

DCM216C – Live Electrical 2 Pole 16A C Curve 6kA DC MCB
The Live Electrical DCM216C is a 2 Pole 16A DC miniature circuit breaker, rated at 600V DC. Designed for use in solar panel systems, battery circuits, and other low-voltage DC applications, it provides safe disconnection and protection from overloads and short circuits.
Featuring a C curve thermo-magnetic trip mechanism and a 6kA breaking capacity, this unit is suitable for installation on TH35-7.5 DIN rails. With 16mm² maximum terminal capacity and IP20 contact protection, it offers compact and reliable protection for DC distribution panels.
✨ Key Features – Live Electrical DCM216C 16A DC MCB
- 2-pole DC miniature circuit breaker
- Rated current: 16A
- Rated voltage: 600V DC
- 6kA breaking capacity
- C Curve thermo-magnetic tripping
- DIN rail mountable (TH35-7.5)
- IP20 contact protection
- Maximum terminal capacity: 16mm²
- Conforms to IEC/EN 60898-2
Technical Overview – Live Electrical DCM216C DC MCB
- Model: DCM216C
- Poles: 2
- Rated Current: 16A
- Rated Voltage: 600V DC
- Breaking Capacity: 6kA
- Trip Characteristic: C
- Standard: IEC/EN 60898-2
- IP Rating: IP20
- Max Terminal Capacity: 16mm²
✅ Why Choose This Product?
The DCM216C is ideal for protecting small to medium DC circuits in PV systems and control installations. Its compact design and 600V DC rating make it a practical and compliant solution for reliable DC circuit protection.
About Live Electrical
Live Electrical develops a full range of circuit protection products built to UK and international standards. Their DC MCBs offer safety, reliability, and ease of installation for solar and low-voltage DC setups.
️ Guarantee & Compliance
Certified to IEC/EN 60898-2. Install using correct torque settings and mounting procedures as outlined in the manufacturer’s guidance.
