Description
⚡ 10A DC Circuit Breaker for Solar PV and Control Systems

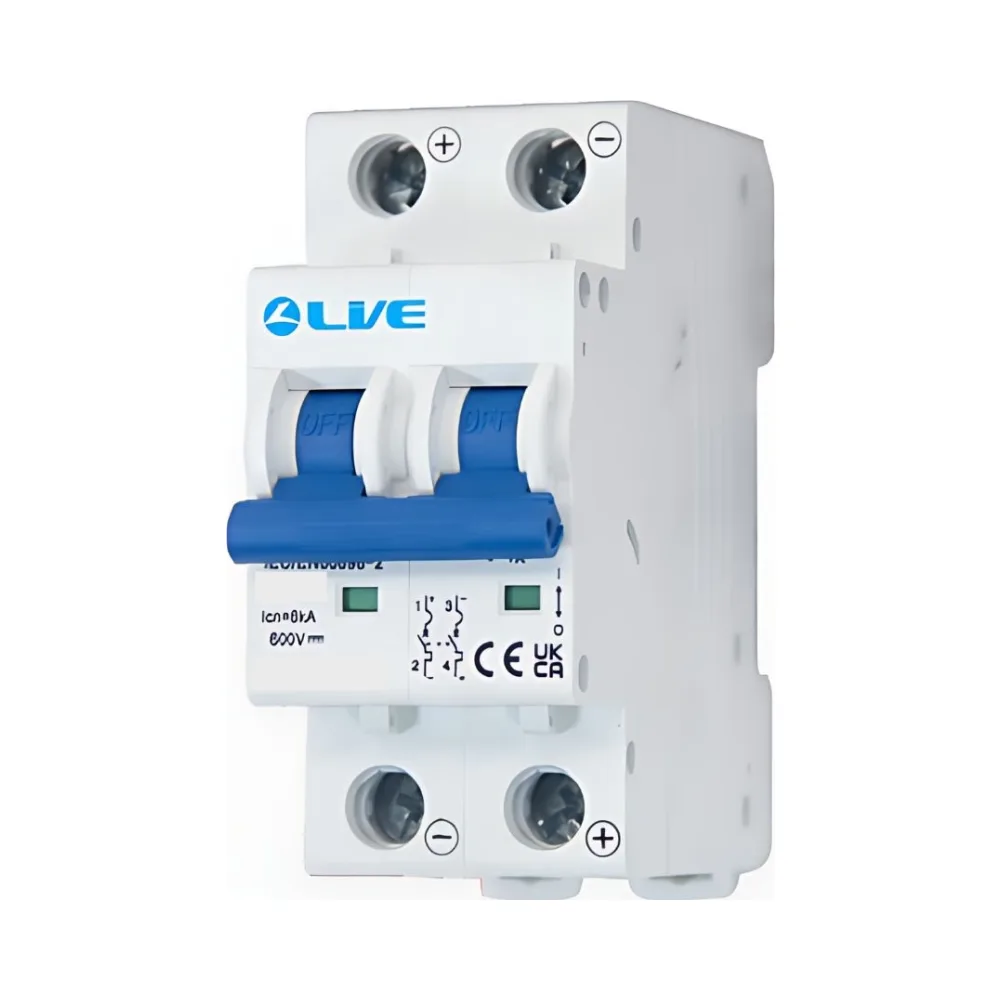

DCM210C – Live Electrical 2 Pole 10A C Curve 6kA DC MCB
The Live Electrical DCM210C is a 2 Pole miniature circuit breaker designed to protect 600V DC installations in solar PV systems and low-voltage DC circuits. With a 10A current rating, it provides certified protection against overload and short-circuit faults.
This compact DC MCB features a C curve thermo-magnetic trip and a 6kA breaking capacity. It is designed for vertical installation on TH35-7.5 DIN rails and includes IP20 contact protection. Cable terminals support up to 16mm² conductors, ensuring safe, secure connections.
✨ Key Features – Live Electrical DCM210C 10A DC MCB
- 2-pole DC miniature circuit breaker
- Rated current: 10A
- Rated voltage: 600V DC
- Breaking capacity: 6kA
- C Curve thermo-magnetic tripping
- DIN rail mountable (TH35-7.5)
- IP20 contact protection
- Maximum terminal capacity: 16mm²
- Tested to IEC/EN 60898-2
Technical Overview – Live Electrical DCM210C DC MCB
- Model: DCM210C
- Poles: 2
- Rated Current: 10A
- Rated Voltage: 600V DC
- Breaking Capacity: 6kA
- Trip Characteristic: C
- Standard: IEC/EN 60898-2
- IP Rating: IP20
- Max Terminal Capacity: 16mm²
✅ Why Choose This Product?
Ideal for protecting solar panel strings and DC control equipment, the DCM210C provides safe, standards-compliant 10A protection. Its compact design and 600V DC rating make it perfect for small-scale photovoltaic and automation systems.
About Live Electrical
Live Electrical delivers circuit protection products engineered to meet UK standards. Their DC MCBs are trusted by professionals for reliable performance in solar and control panel applications.
️ Guarantee & Compliance
Tested to IEC/EN 60898-2. Follow manufacturer guidelines for correct installation and cable sizing for optimal safety.
