Description
⚡ 6A DC Circuit Breaker for Solar Panels and Low-Voltage DC Circuits

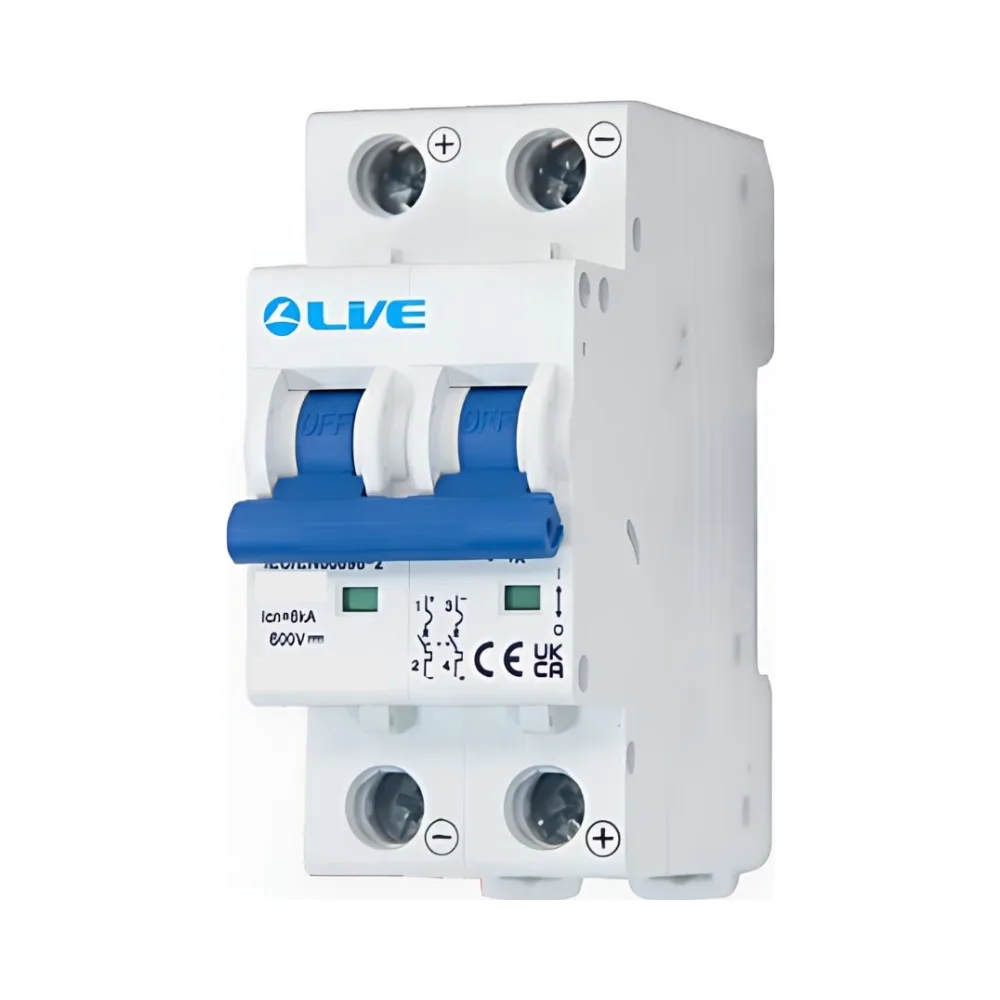

DCM206C – Live Electrical 2 Pole 6A C Curve 6kA DC MCB
The Live Electrical DCM206C is a compact 2 Pole 6A DC miniature circuit breaker, ideal for protecting low-current solar panel strings and DC control systems. With a 600V DC voltage rating and 6kA breaking capacity, it offers safe and effective circuit isolation.
This MCB features a C curve thermo-magnetic tripping mechanism, designed to respond reliably to overloads and short circuits in DC circuits. It mounts securely to TH35-7.5 DIN rails and supports 16mm² maximum terminal capacity. Certified to IEC/EN 60898-2 and protected to IP20.
✨ Key Features – Live Electrical DCM206C 6A DC MCB
- 2-pole DC miniature circuit breaker
- Rated current: 6A
- Rated voltage: 600V DC
- Breaking capacity: 6kA
- C Curve thermo-magnetic tripping
- Mounts on TH35-7.5 DIN rail
- IP20 contact protection
- Maximum terminal capacity: 16mm²
- Conforms to IEC/EN 60898-2
Technical Overview – Live Electrical DCM206C DC MCB
- Model: DCM206C
- Poles: 2
- Rated Current: 6A
- Rated Voltage: 600V DC
- Breaking Capacity: 6kA
- Trip Characteristic: C
- Standard: IEC/EN 60898-2
- IP Rating: IP20
- Max Terminal Capacity: 16mm²
✅ Why Choose This Product?
The DCM206C is a reliable choice for protecting low-current DC circuits in photovoltaic and automation systems. Its compact size and 6A rating make it ideal for small-scale solar protection where space and precision matter.
About Live Electrical
Live Electrical supplies dependable protection devices for commercial and domestic installations. Their DC MCBs are trusted for solar, battery storage, and low-voltage DC applications across the UK.
️ Guarantee & Compliance
Certified to IEC/EN 60898-2. Install according to manufacturer guidance using suitable terminal torque and conductor sizes.
