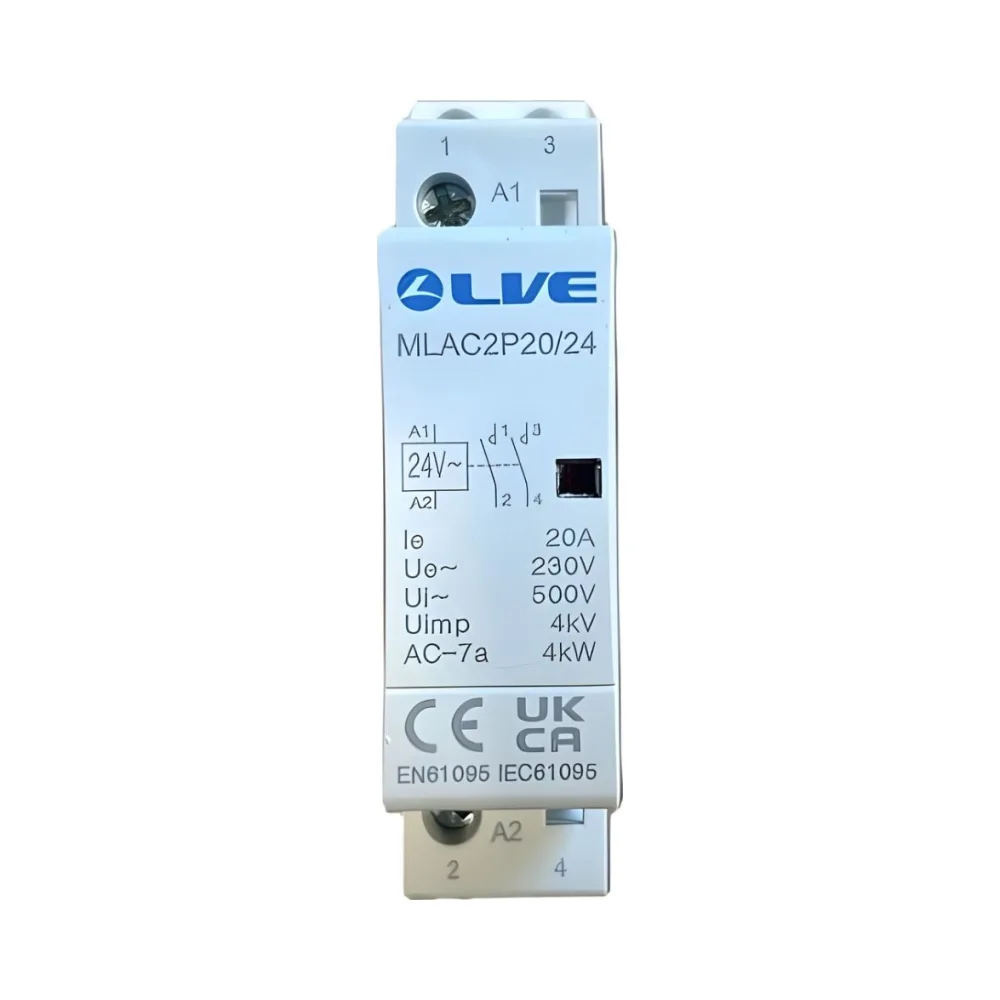

24V AC 20A 2 Pole NO Modular Contactor
Live Electrical MLAC2P20/24
The Live Electrical 24V AC 20A modular contactor is a reliable 2-pole normally open (2NO) switching device designed for use in lighting, heating, and automation systems. With a 24V AC control coil, it provides safe low-voltage control while delivering dependable performance in commercial and residential electrical installations.
Its compact DIN-rail modular design allows for quick installation in distribution boards and control panels, making it a practical choice for electricians and system integrators. Built to recognised international standards, this contactor ensures long service life and consistent switching performance.
Key Features – Live Electrical 24V AC 20A Modular Contactor
- 20A rated current
- 2-pole normally open (2NO) contact configuration
- 24V AC control coil
- Compact DIN-rail mounted modular contactor
- Suitable for lighting, heating, and automation applications
- Reliable switching performance for frequent operation
- CE & UKCA approved
- Manufactured to EN/IEC 61095
Technical Specifications – Live Electrical 24V AC 20A Modular Contactor
- Product Code: MLAC2P20/24
- Brand: Live Electrical
- Rated Current (Ie): 20A
- Number of Poles: 2
- Contact Type: Normally Open (2NO)
- Control Voltage: 24V AC
- Rated Operational Voltage (Ue): 230V AC
- Rated Insulation Voltage (Ui): 500V
- Impulse Withstand Voltage (Uimp): 4kV
- Utilisation Category: AC-7a
- Maximum Load: Up to 4kW
- Mounting: DIN Rail
- Standards: EN/IEC 61095
- Approvals: CE, UKCA
Technical Performance & Compliance
The Live Electrical 24V AC 20A Modular Contactor is designed to meet the demands of modern electrical installations. Its AC-7a utilisation category makes it suitable for switching resistive and lightly inductive loads such as lighting and heating circuits. Compliance with EN/IEC 61095 and CE/UKCA approvals ensures safety, reliability, and full conformity with UK and EU electrical regulations.
