Description

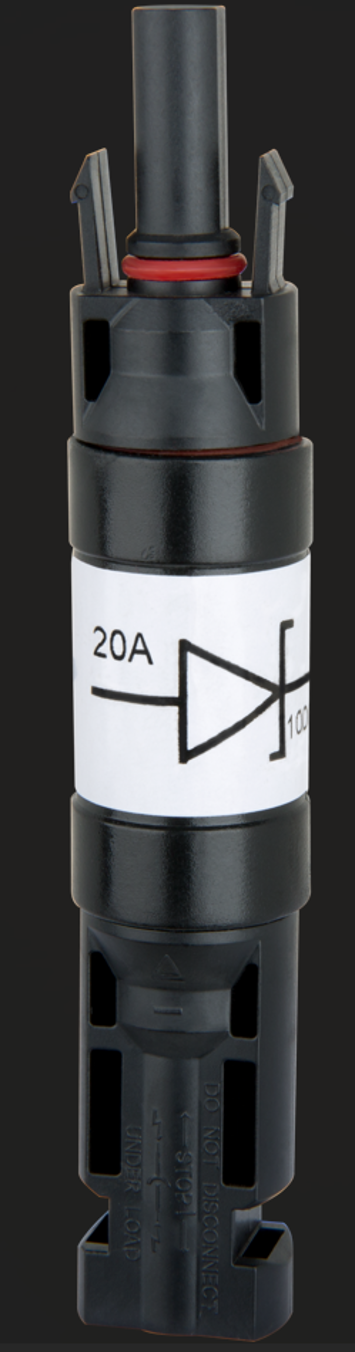

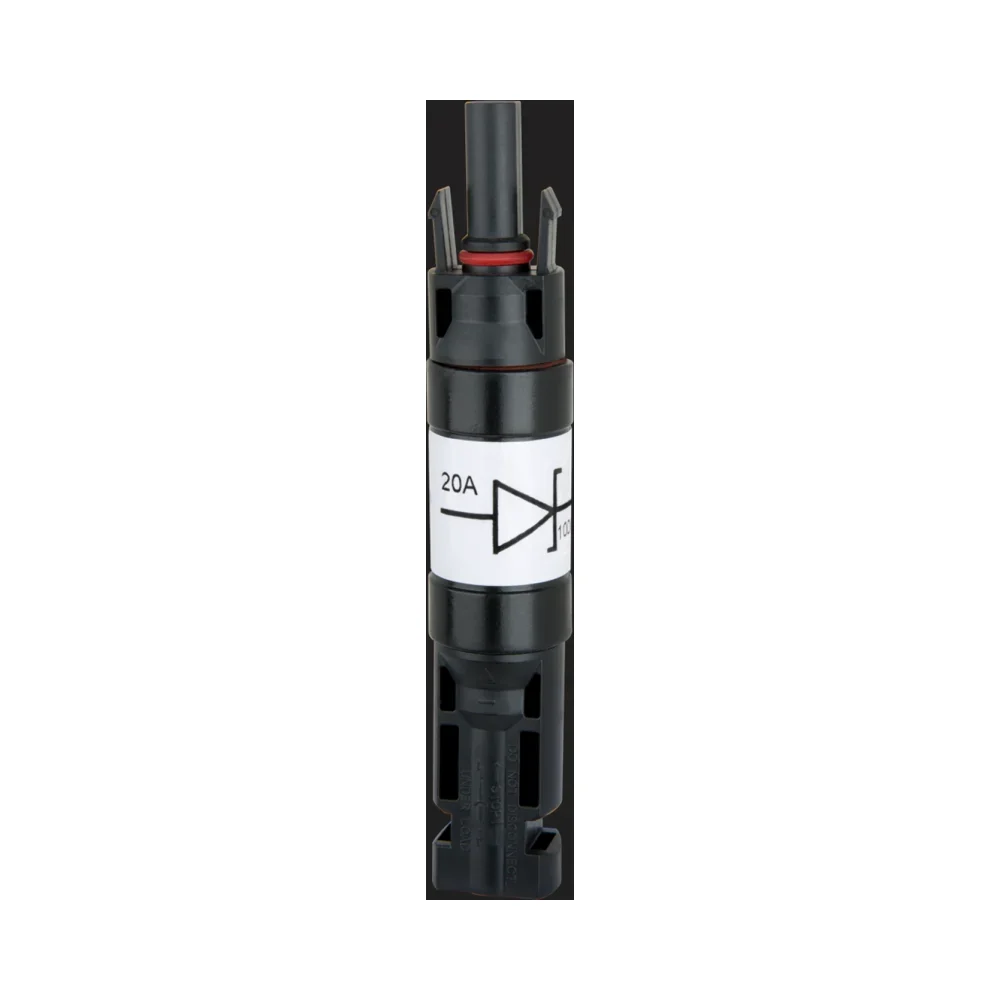

Live Electrical 15A 1000V DC Solar Photovoltaic Diode Connector
Solar Photovoltaic 15A Diode Connector
Live Electrical 15A 1000V DC Solar Photovoltaic Diode Connector is designed to provide effective current control and protection within solar PV systems. Commonly used to prevent reverse current flow, it helps safeguard photovoltaic modules and system components from electrical damage.
Rated at 1000V DC with a current capacity of 15A, the connector is suitable for residential and commercial solar installations. Tin-plated copper contacts ensure excellent conductivity and low contact resistance, supporting efficient electrical performance and long-term reliability.
The robust PPO insulation housing provides strong electrical insulation and mechanical durability, while the IP67 ingress protection rating ensures dependable operation in outdoor environments exposed to dust and moisture. Manufactured in accordance with IEC 62852, this diode connector meets recognised industry standards for solar photovoltaic applications.
Key Features – Solar Photovoltaic 15A Diode Connector
- Solar photovoltaic diode connector
- Rated voltage: 1000V DC
- Rated current: 15A
- Prevents reverse current flow in PV systems
- IP67 protection for outdoor installations
- Low contact resistance for efficient operation
- Durable PPO insulation housing
- Suitable for residential and commercial solar systems
Technical Specification – Solar Photovoltaic 15A Diode Connector
- Rated Voltage: 1000V DC
- Rated Current: 15A
- Standard: IEC 62852
- Contact Resistance: ≤0.5 mΩ
- Contact Material: Copper, Tin Plated
- Insulation Material: PPO
- Ambient Temperature Range: -40°C to +85°C
- IP Rating: IP67
