Description

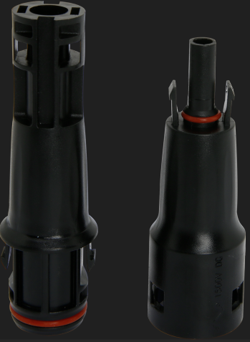

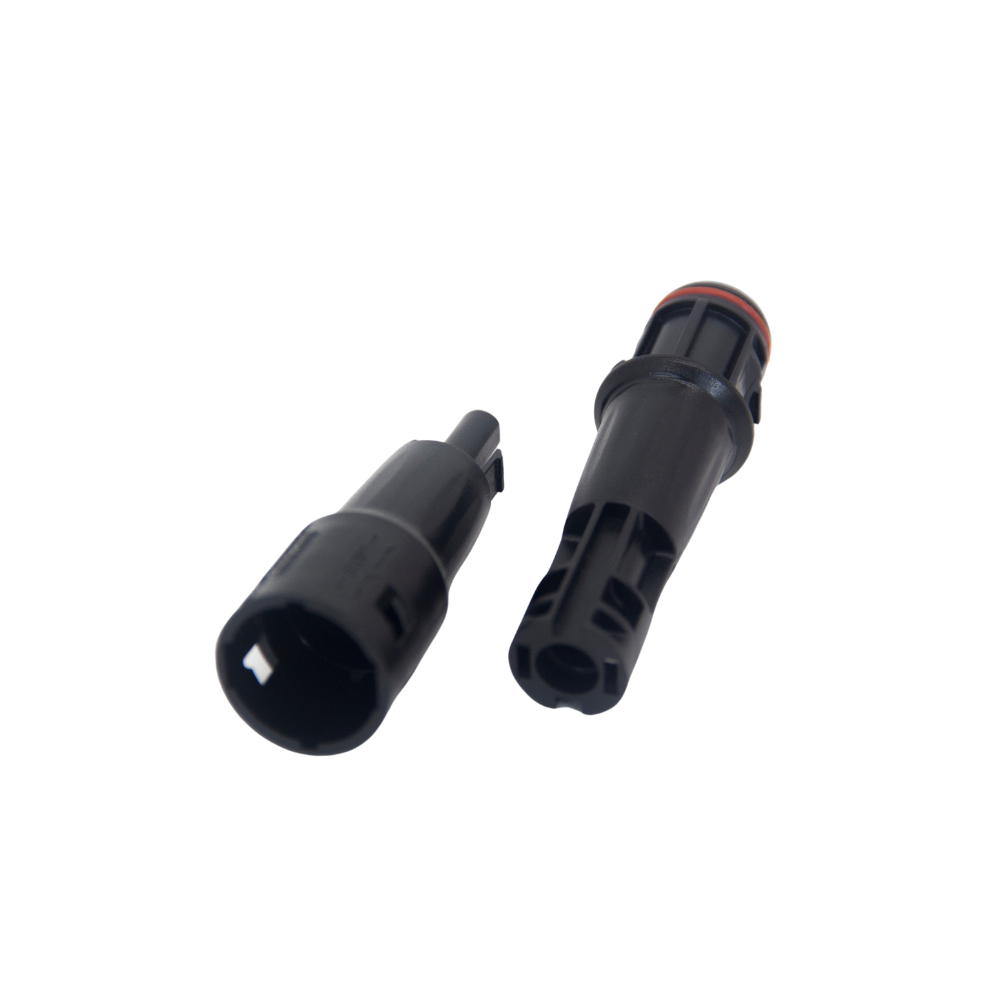

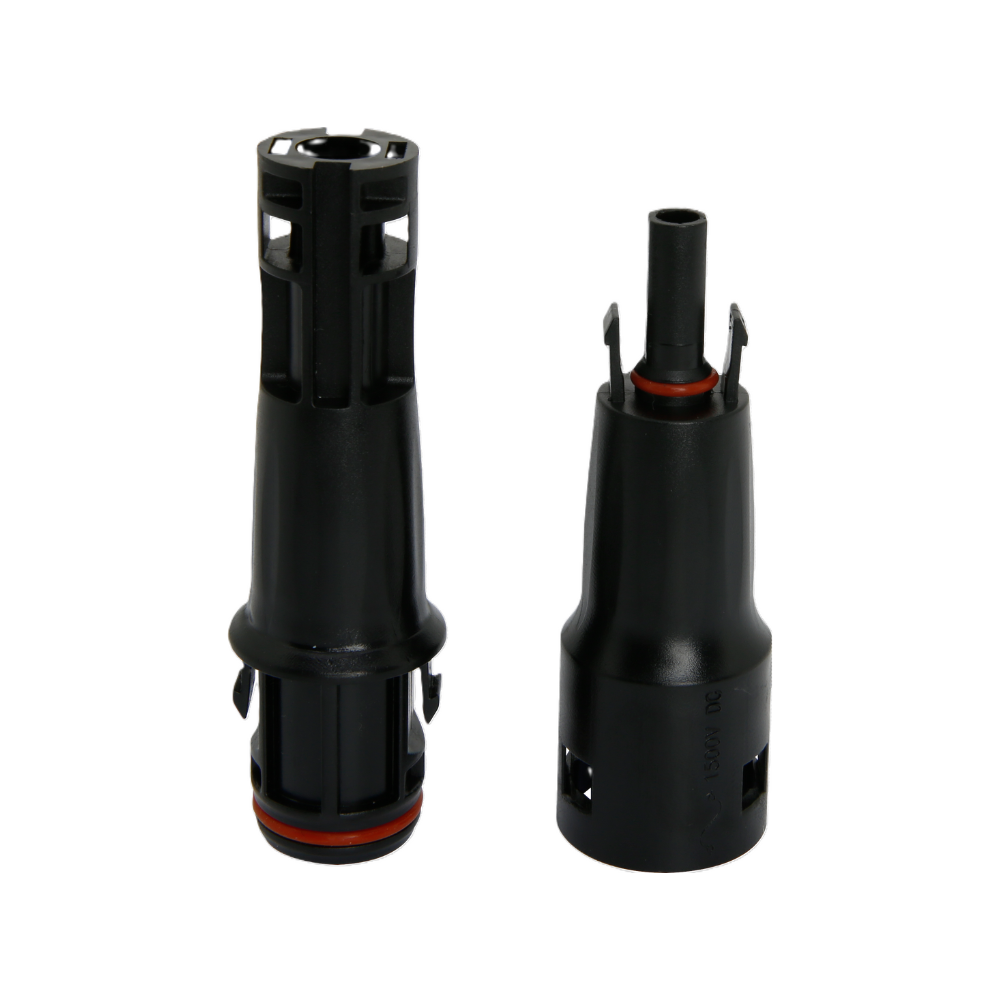

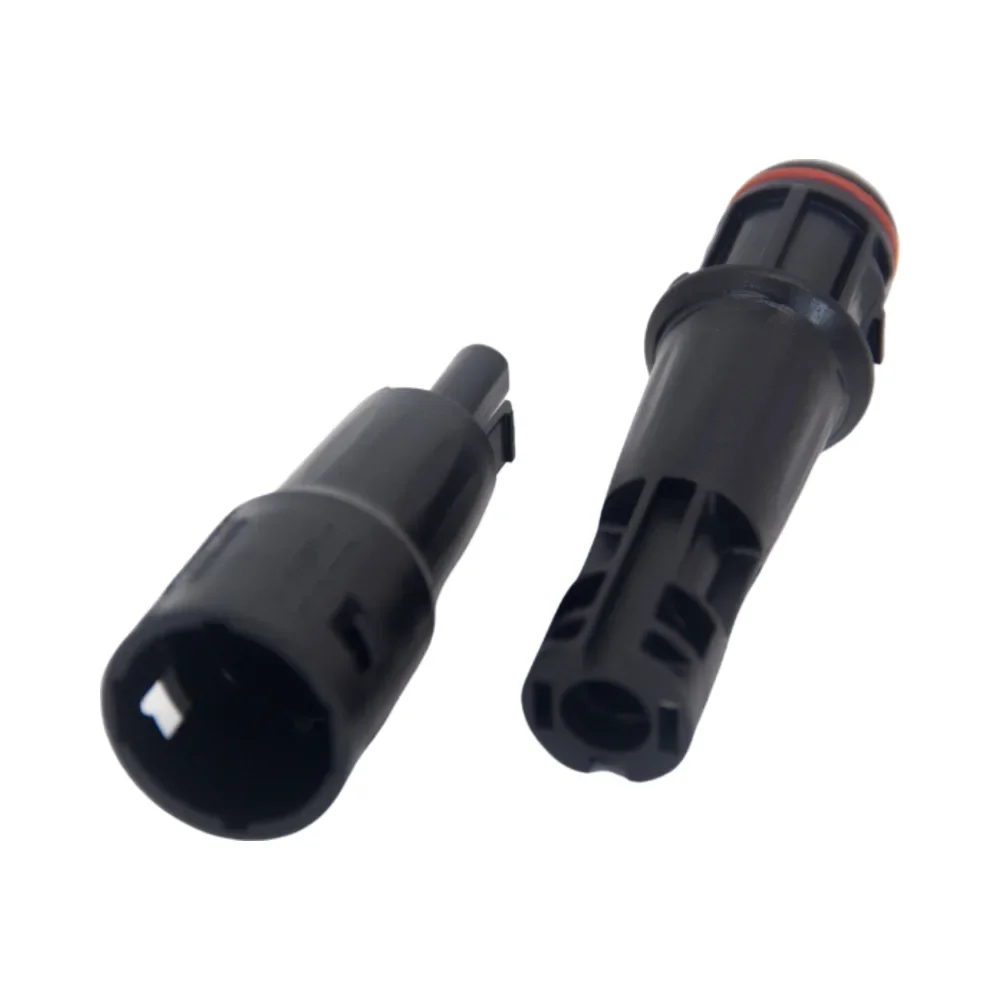

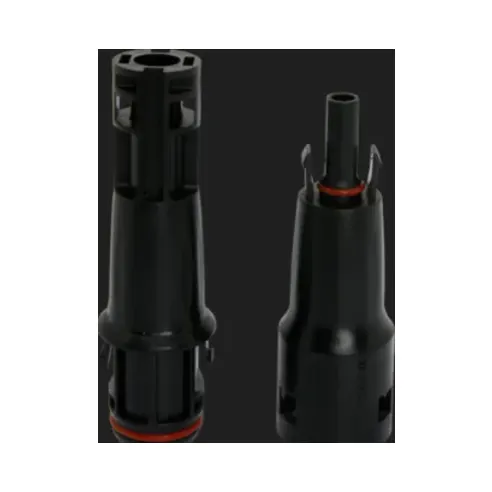

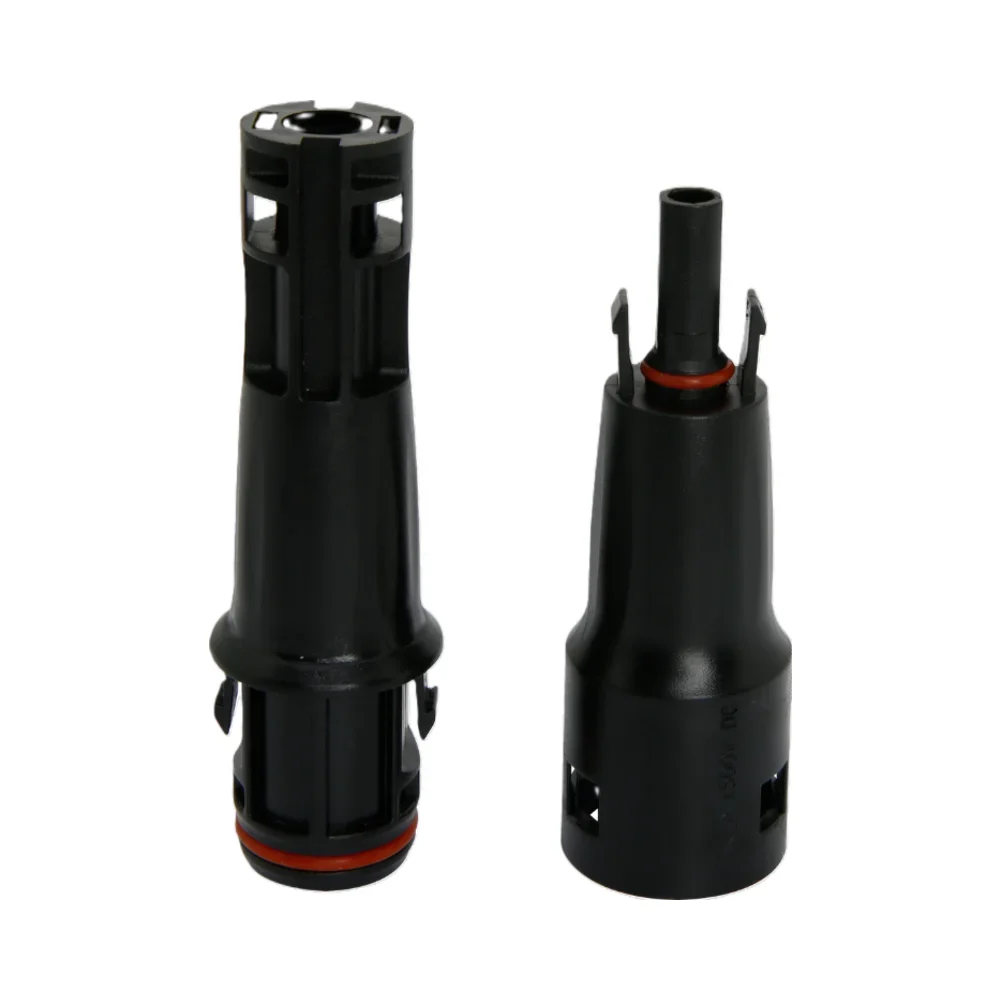

1500V 30A IP67 Solar Photovoltaic Fuse Connector – Without Fuse
Live Electrical 1500V 30A IP67 Solar Photovoltaic Fuse Connector is designed to provide safe and reliable DC circuit protection in modern solar PV installations. Supplied without a fuse, it allows installers to select the appropriate 10×85mm photovoltaic fuse to suit system requirements.
Rated at 1500V DC and 30A, this fuse connector is engineered for high-voltage solar arrays used in residential, commercial and utility-scale applications. The robust PPO insulation housing offers excellent electrical insulation, mechanical strength and long-term durability in outdoor environments.
With IP67 ingress protection, the connector is fully sealed against dust and water when connected, ensuring dependable operation in harsh weather conditions. Designed to comply with relevant PV standards, it supports safe installation and ongoing system reliability.
Key Features – Live Electrical Solar Photovoltaic Fuse Connector
- Solar photovoltaic fuse connector (without fuse)
- Rated voltage: 1500V DC
- Rated current: 30A
- Accepts 10×85mm photovoltaic fuse
- IP67 protection for outdoor installations
- Durable PPO insulation housing
- Designed for high-voltage solar PV systems
Technical Specification – Live Electrical Solar Photovoltaic Fuse Connector
- Rated Voltage: 1500V DC
- Rated Current: 30A
- Fuse Size: 10 × 85 mm (not supplied)
- Ambient Temperature Range: -40°C to +85°C
- IP Rating: IP67
- Insulation Material: PPO
- Corrosion Test Grade: IEC 62852
