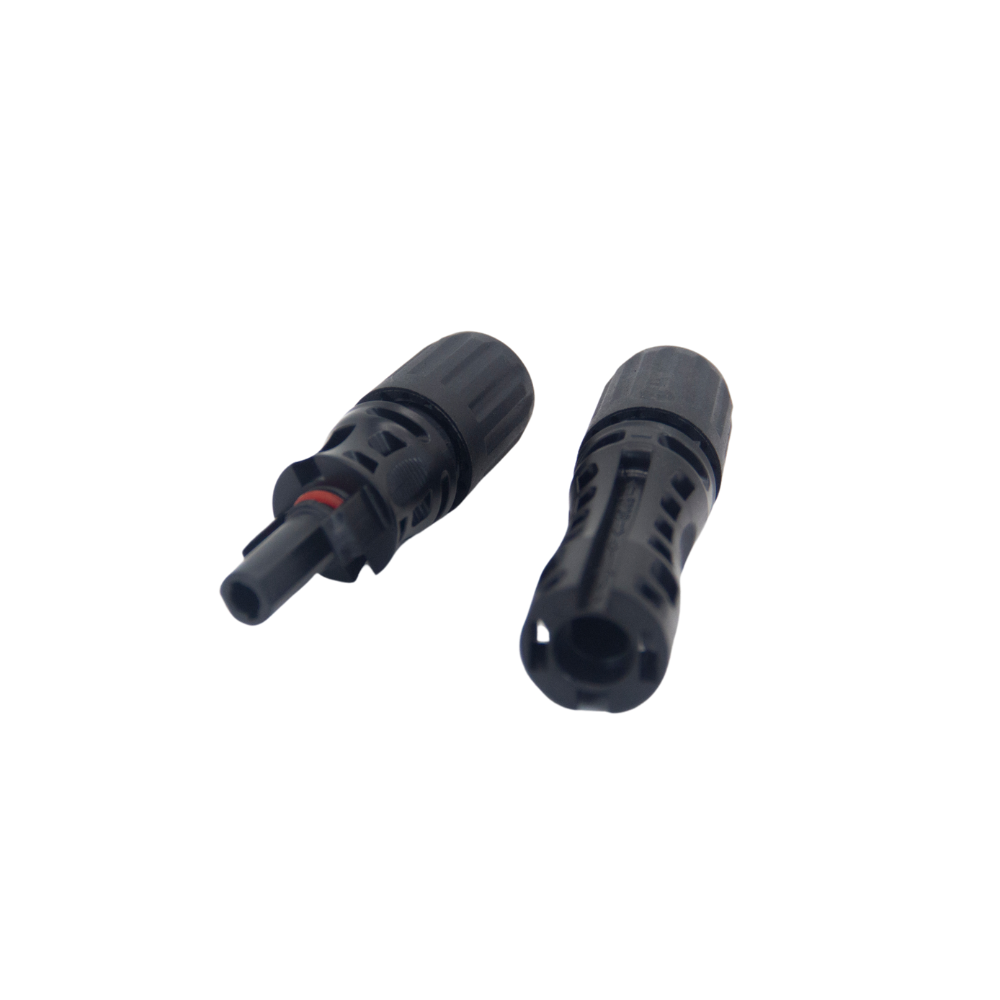

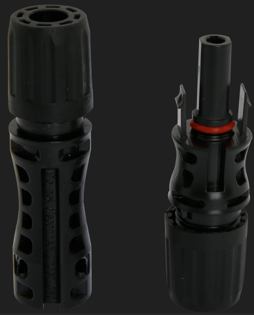

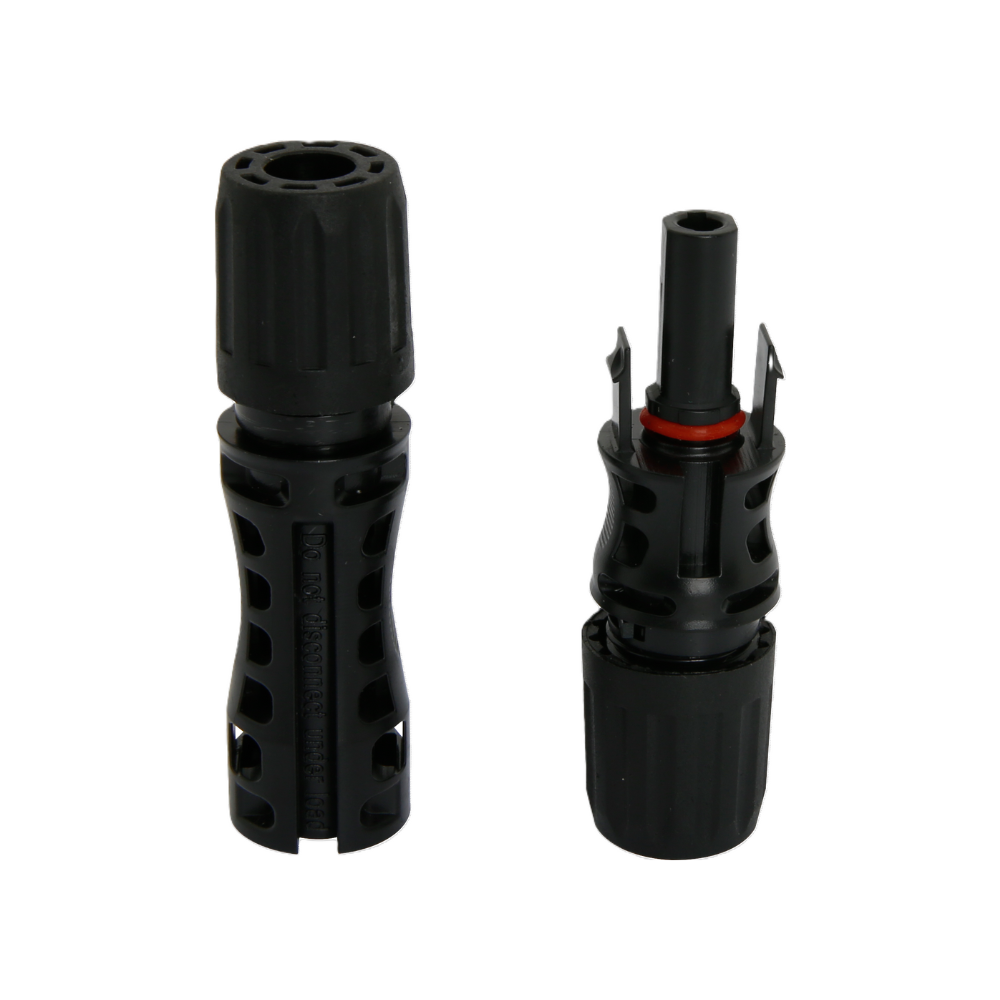

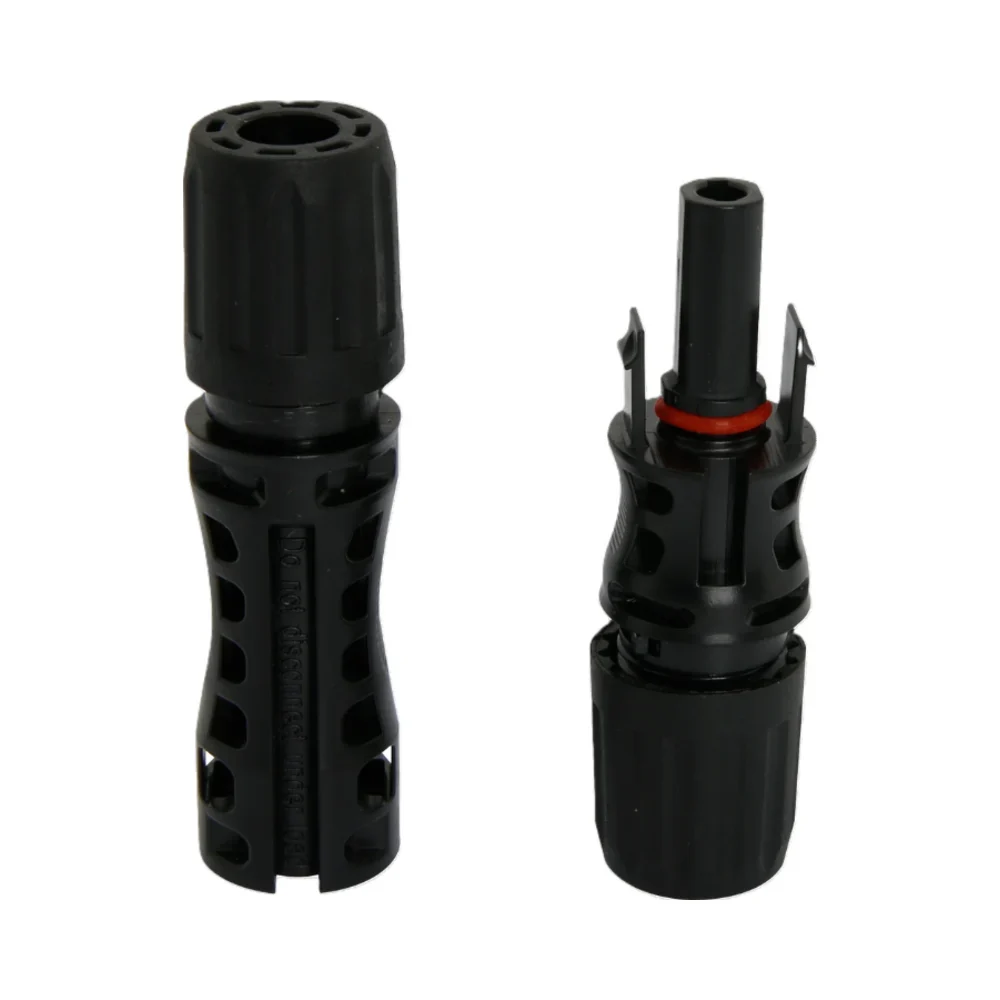

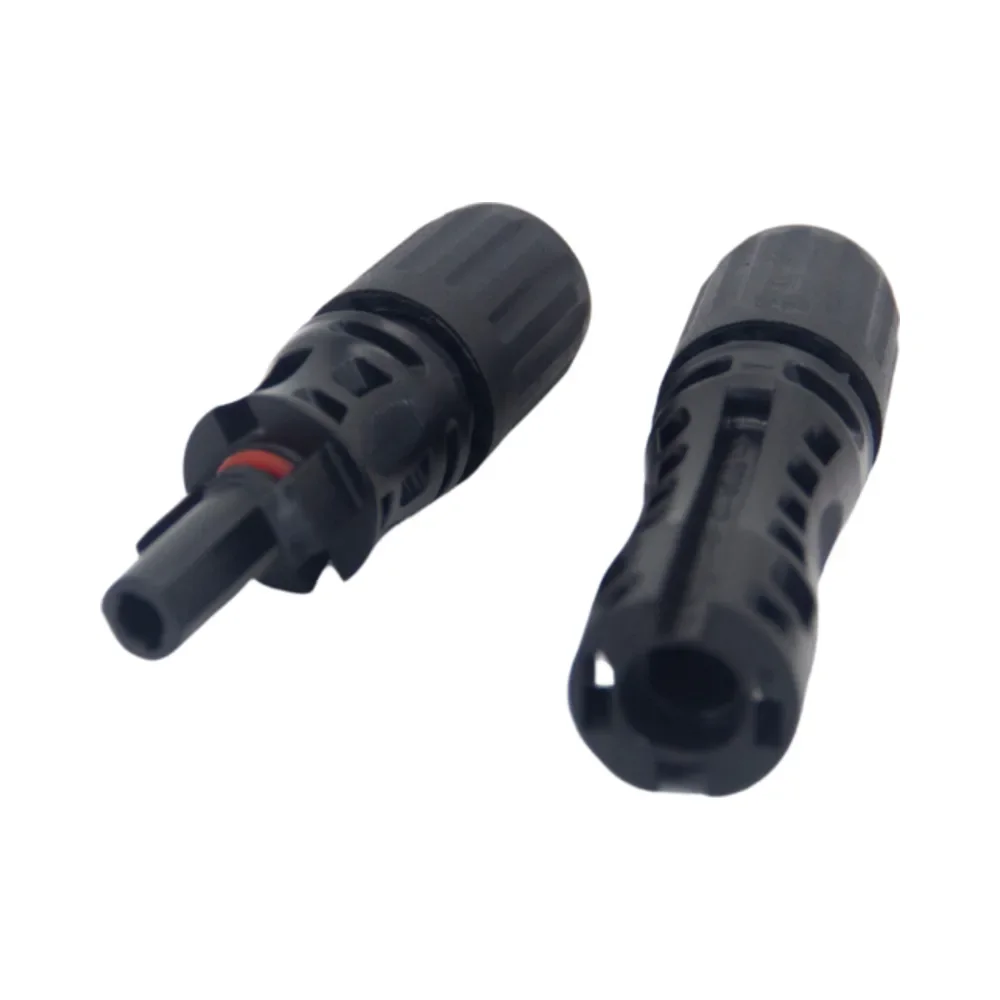

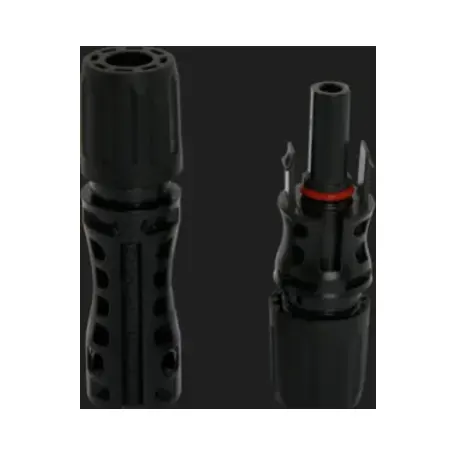

1500V 30A IP67 Solar Photovoltaic Connector
Live Electrical 1500V 30A IP67 Solar Photovoltaic Connector is designed for high-performance DC connections in modern photovoltaic installations. Suitable for residential, commercial and utility-scale solar systems, it supports safe and efficient power transmission in high-voltage environments.
Rated at 1500V DC and 30A, this connector is engineered to meet the demands of next-generation PV systems. Low contact resistance ensures efficient energy transfer, while robust PC/PPO insulation provides excellent mechanical strength, electrical safety and long-term durability.
With IP67 ingress protection, the connector is fully protected against dust and water when mated, making it ideal for outdoor rooftop and ground-mounted solar installations. Designed to operate across a wide temperature range, it delivers reliable performance in harsh environmental conditions.
Key Features – Live Electrical Solar Photovoltaic Connector
- Solar photovoltaic DC connector
- Rated voltage: 1500V DC
- Rated current: 30A
- IP67 protection for outdoor installations
- Low contact resistance for efficient power transfer
- High-temperature performance
- Suitable for residential, commercial and large-scale PV systems
Technical Specification – Live Electrical Solar Photovoltaic Connector
- Rated Voltage: 1500V DC
- Rated Current: 30A
- Test Voltage: 6kV (50Hz, 1 min)
- Ambient Temperature Range: -40°C to +90°C
- Upper Limiting Temperature: +105°C
- IP Rating: IP67
- Contact Resistance: 0.5 mΩ
- Safety Class: II
- Insulation Material: PC / PPO
- Corrosion Test Grade: IEC 60068-2-52
