Description

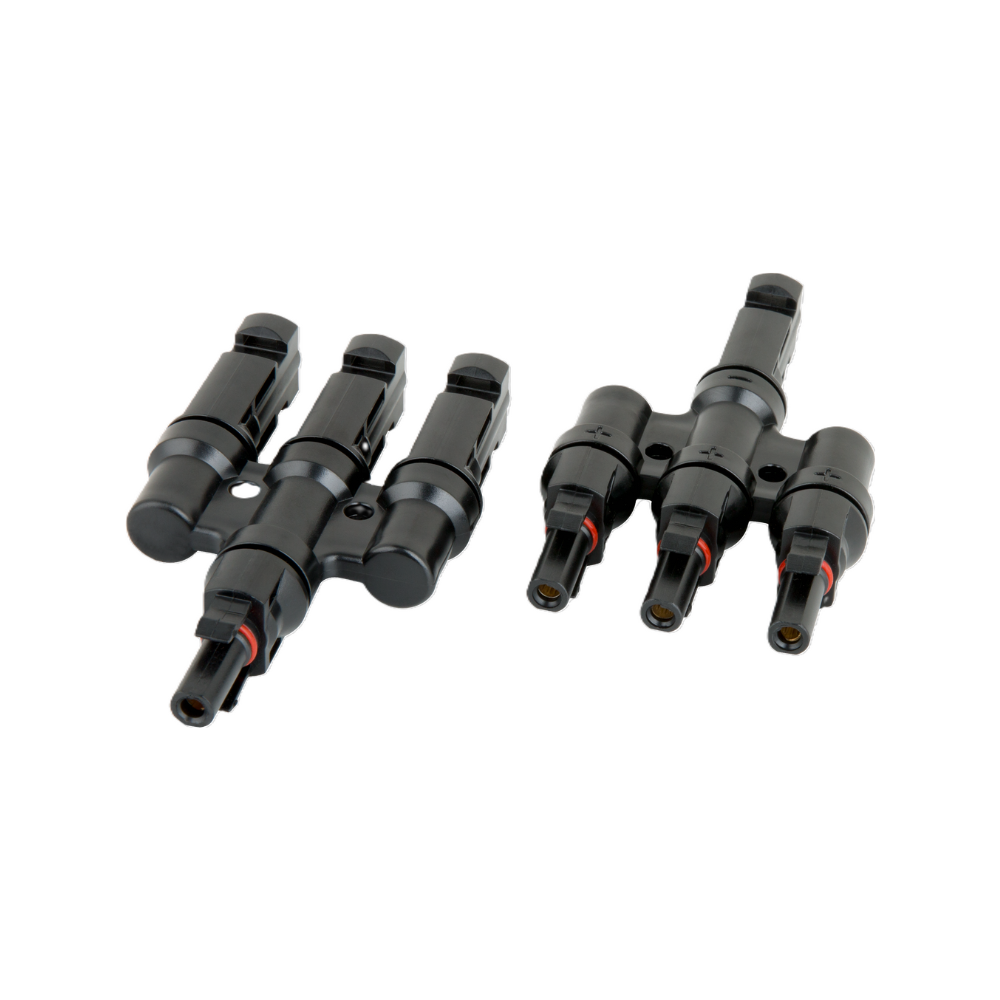

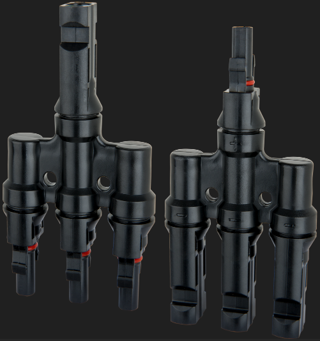

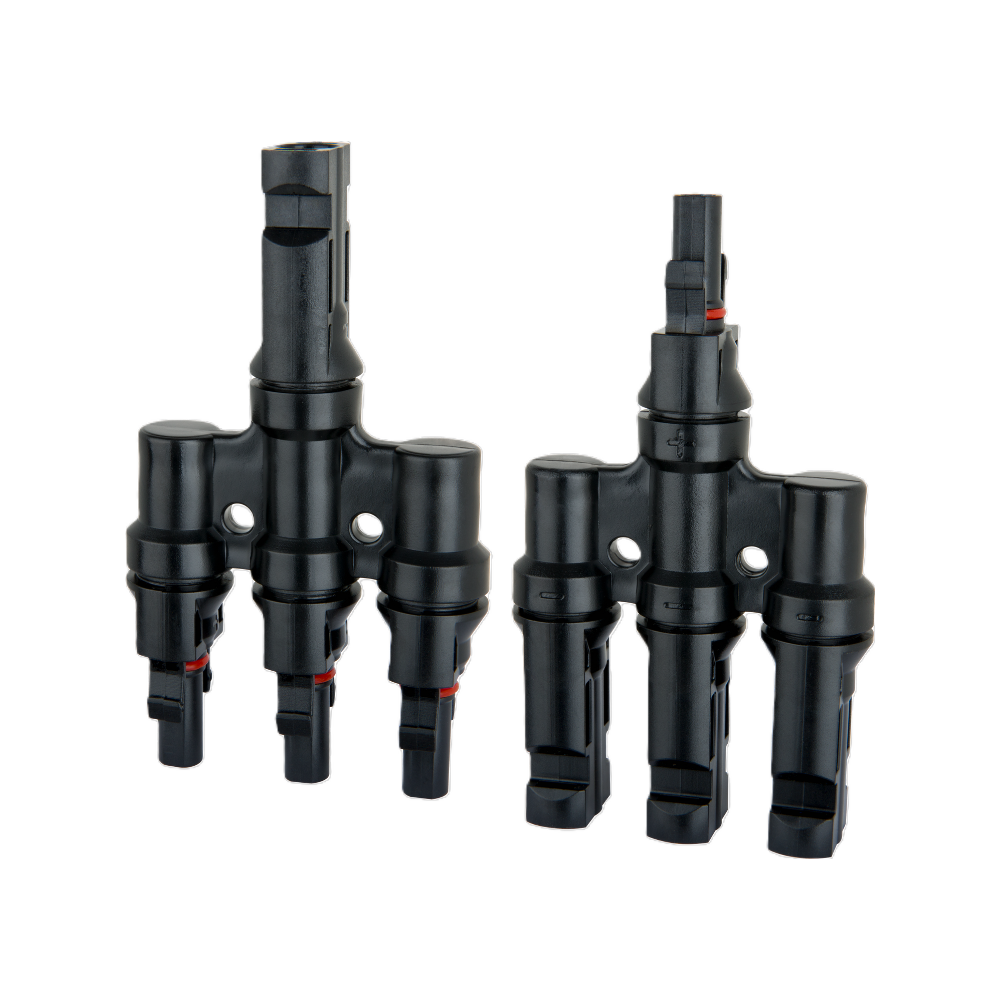

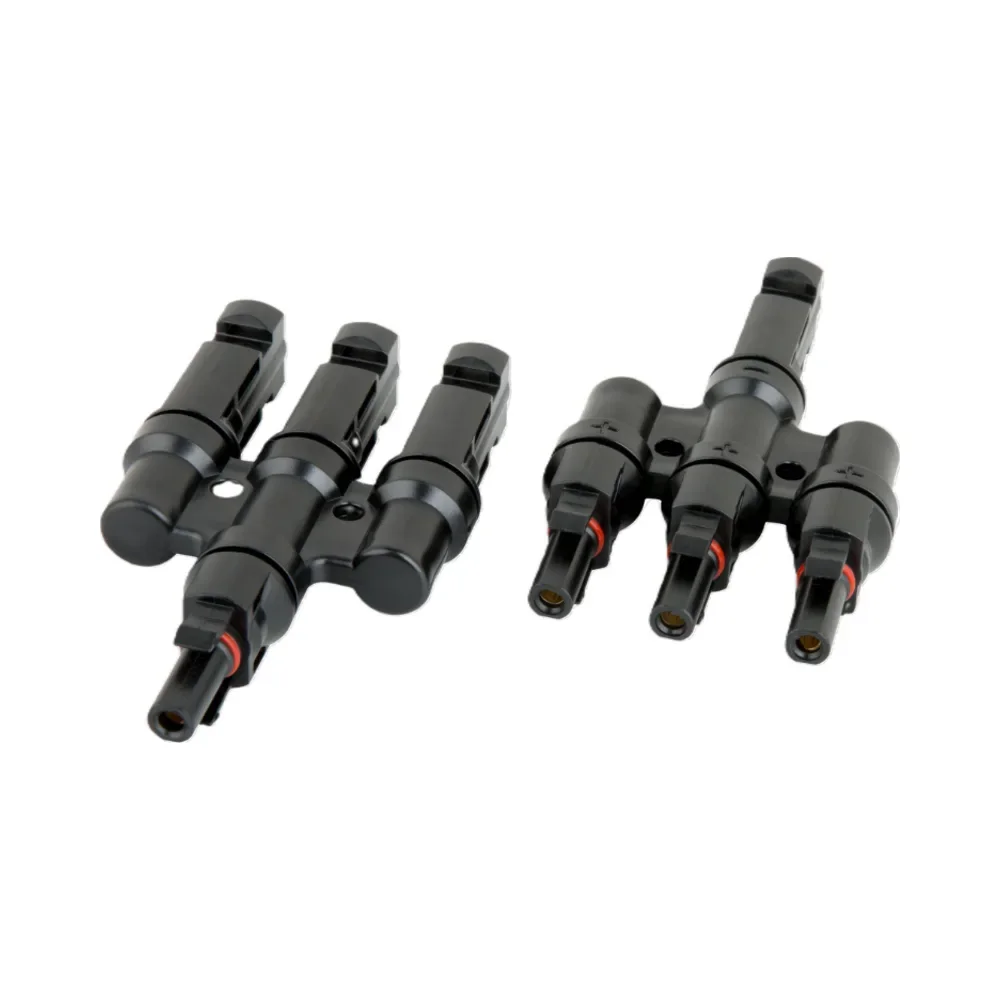

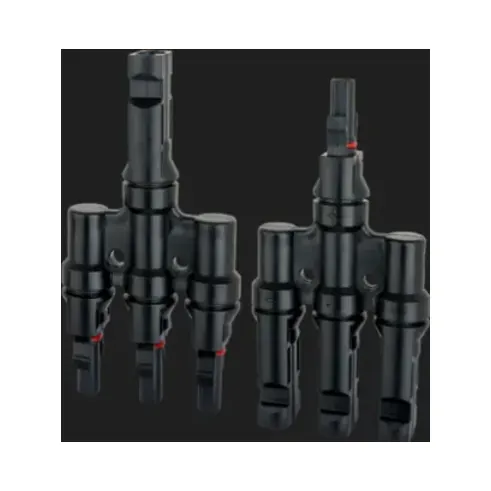

1000V 30A Solar Photovoltaic Type-T Branch Connector – 3 Branches
3 Way Solar T Branch Connector
This 3 Way Solar T Branch Connector is designed for efficient branching of DC circuits in solar PV installations. The three-branch configuration allows multiple photovoltaic strings to be safely combined while maintaining electrical performance and system integrity.
Rated at 1000V DC and 30A, the connector is suitable for residential, commercial and light industrial solar systems. Tin-plated copper contacts ensure excellent conductivity and low contact resistance, supporting efficient energy transfer and long-term reliability.
The durable PPO insulation housing provides strong mechanical protection and flame resistance, while IP67 ingress protection ensures dependable operation in outdoor environments. Using a Ø4mm pin system, the connector is compatible with standard MC4-type PV connections widely used across the solar industry.
Key Features – 3 Way Solar T Branch Connector
- Type-T solar branch connector with 3 branches
- Rated voltage: 1000V DC
- Rated current: 30A
- Ø4mm pin dimension (MC4-type system)
- IP67 protection for outdoor installations
- Low contact resistance for efficient power transfer
- Durable PPO insulation housing
- Suitable for residential and commercial PV systems
Technical Specification – 3 Way Solar T Branch Connector
- Rated Voltage: 1000V DC
- Rated Current: 30A
- Test Voltage: 6kV
- Pin Dimension: Ø4mm
- Contact Resistance: <0.5 mΩ
- Contact Material: Copper, Tin Plated
- Insulation Material: PPO
- Safety Class: II
- Ambient Temperature Range: -40°C to +85°C
- IP Rating: IP67
