Description

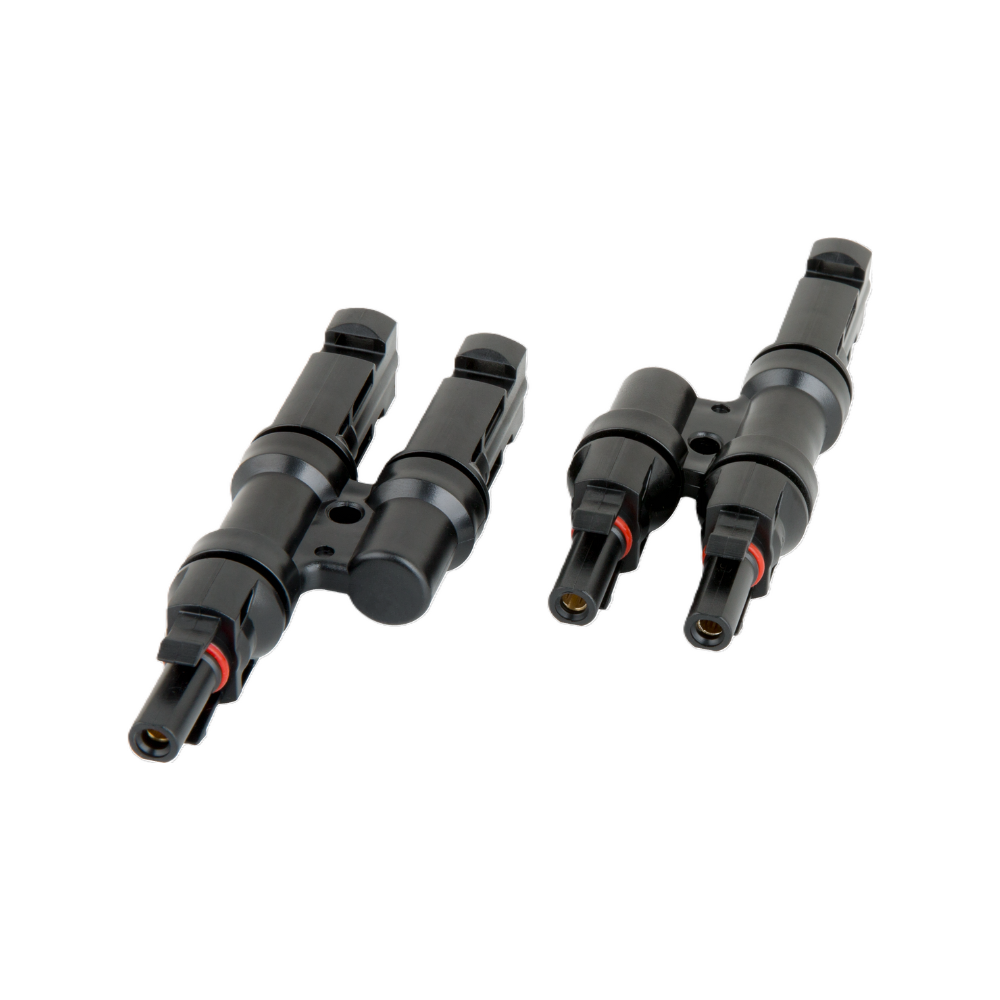

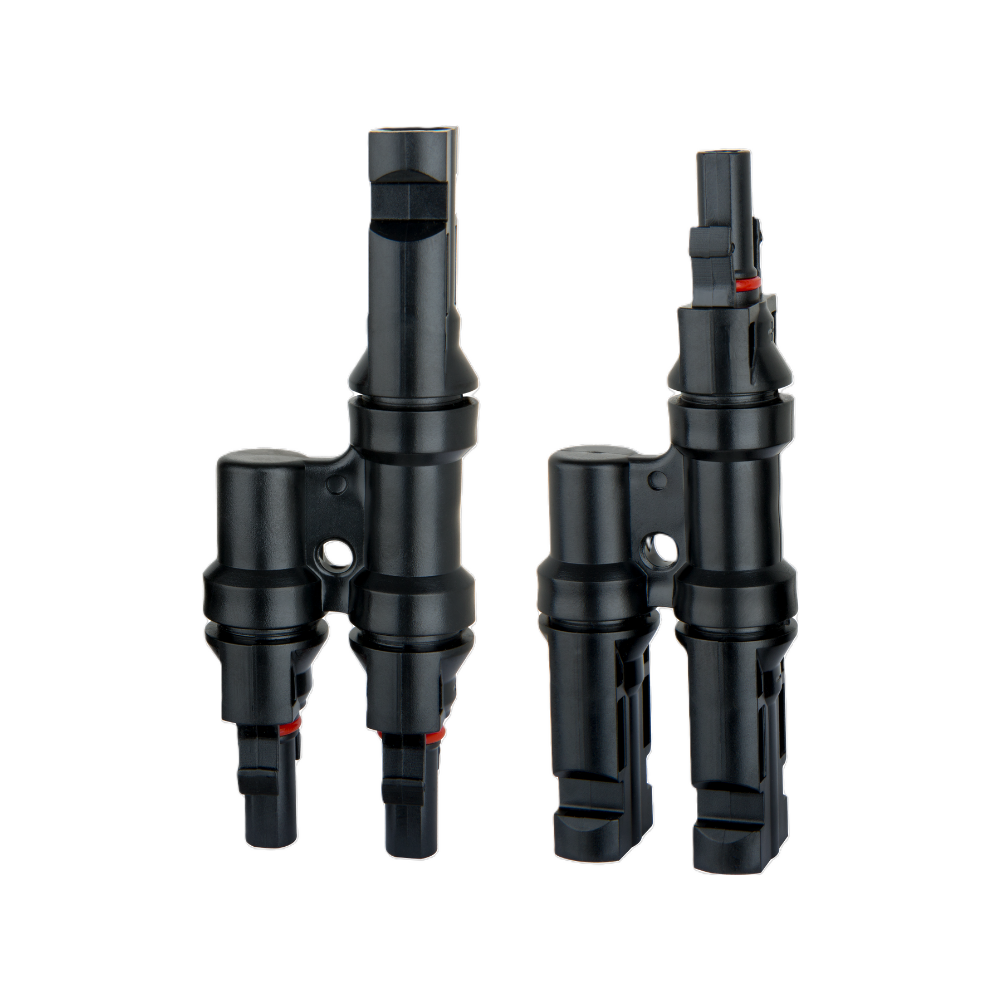

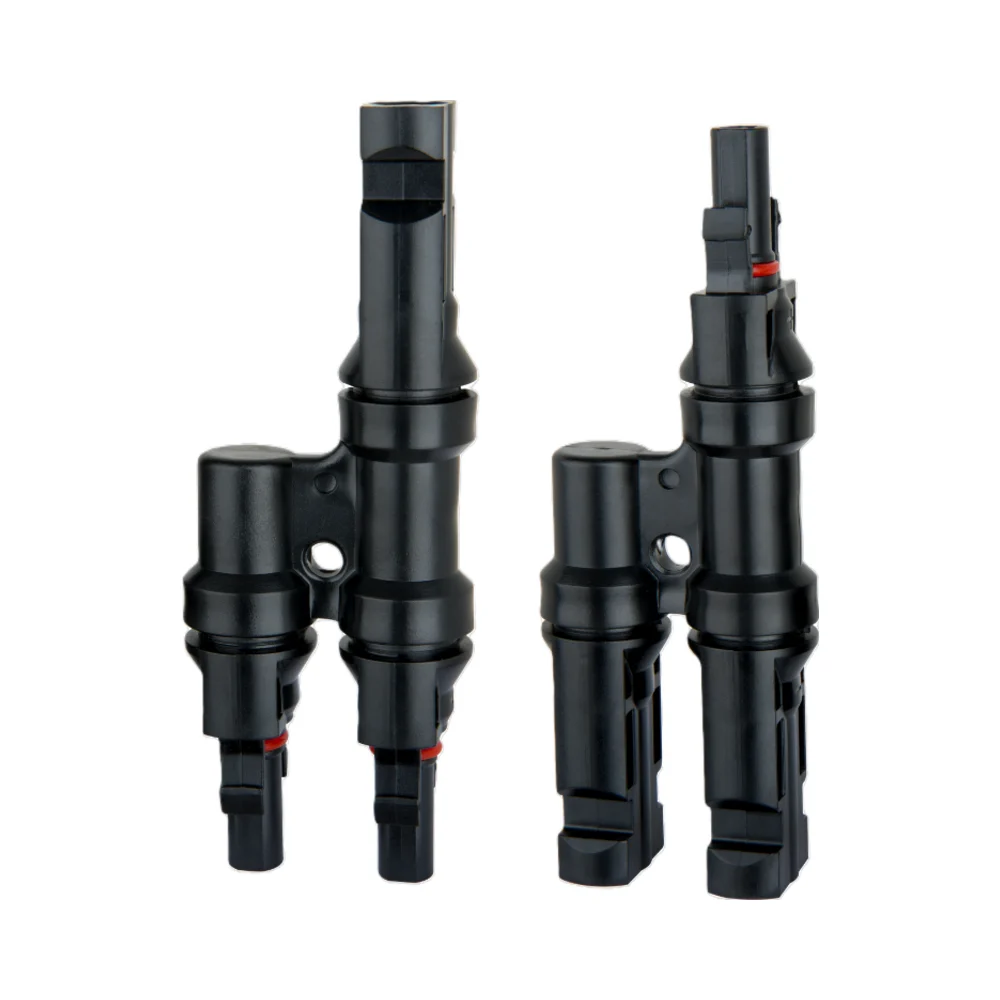

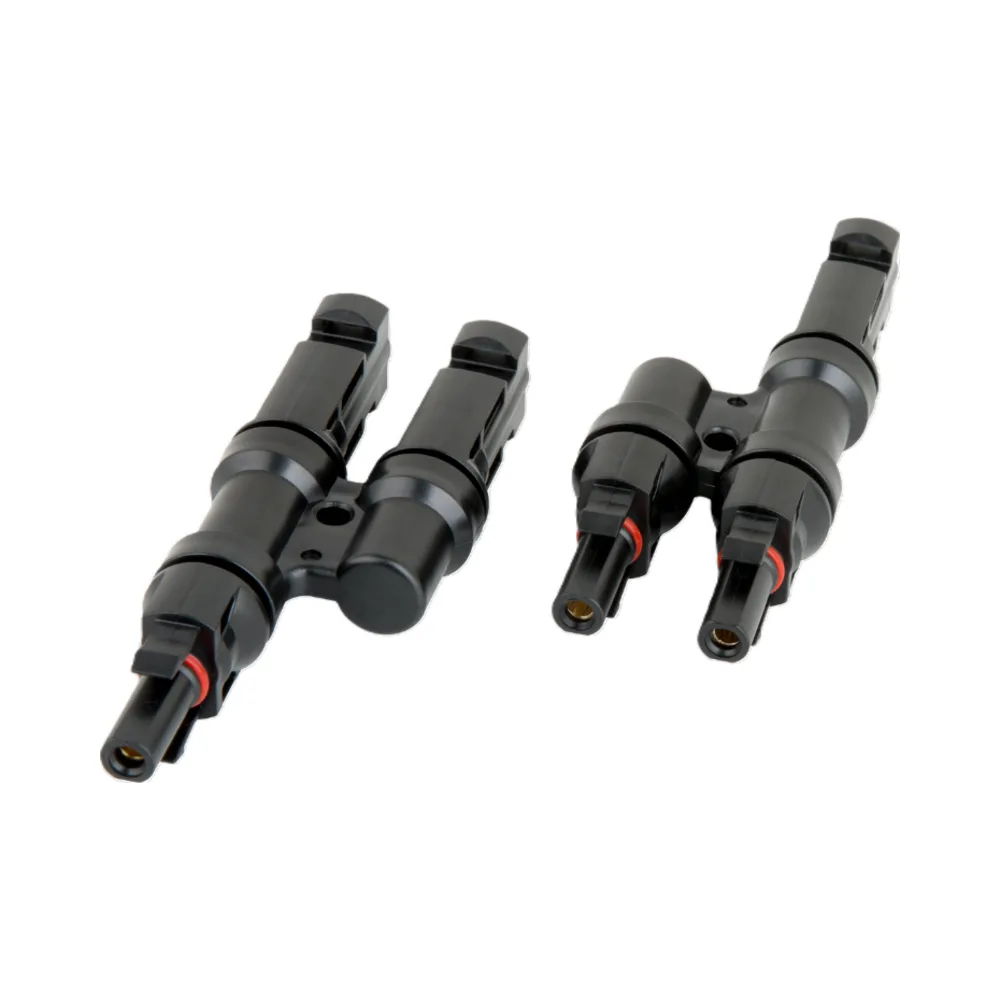

1000V 30A Solar Photovoltaic Type-T Branch Connector – 2 Branches
Live Electrical 1000V 30A Solar Photovoltaic Type-T Branch Connector is designed for efficient branching of DC circuits in solar PV installations. Featuring a two-branch configuration, it allows photovoltaic strings to be safely combined while maintaining system performance and electrical integrity.
Rated at 1000V DC and 30A, this connector is suitable for residential, commercial and small-scale industrial solar systems. Tin-plated copper contacts ensure excellent conductivity with low contact resistance, supporting efficient energy transfer and long-term reliability.
The robust PPO insulation housing provides mechanical strength and flame resistance, while IP67 ingress protection ensures dependable operation in outdoor environments. Using a Ø4mm pin system, the connector is compatible with standard MC4-type PV connections commonly used across the solar industry.
Key Features – Live Electrical Type-T Branch Connector
- Type-T solar branch connector with 2 branches
- Rated voltage: 1000V DC
- Rated current: 30A
- Ø4mm pin dimension (MC4-type system)
- IP67 protection for outdoor installations
- Low contact resistance for efficient power transfer
- Durable PPO insulation housing
- Suitable for residential and commercial PV systems
Technical Specification – Live Electrical Type-T Branch Connector
- Rated Voltage: 1000V DC
- Rated Current: 30A
- Test Voltage: 6kV
- Pin Dimension: Ø4mm
- Contact Resistance: <0.5 mΩ
- Contact Material: Copper, Tin Plated
- Insulation Material: PPO
- Ambient Temperature Range: -40°C to +85°C
- IP Rating: IP67
