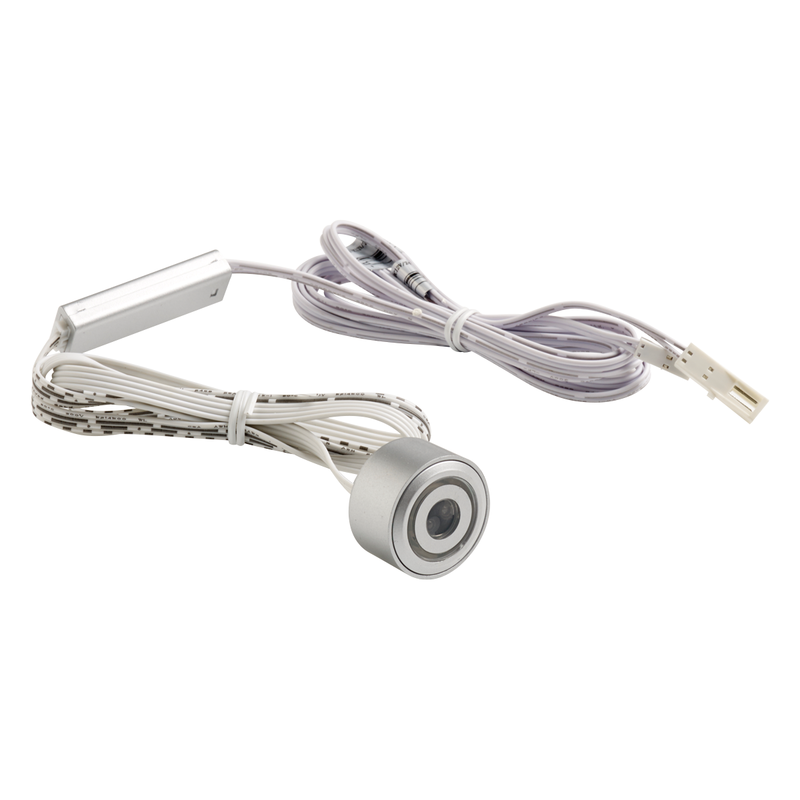

Leyton SRSEN Surface/Recess IP44 On-Off Sensor Switch/Dimmer 12V/24V
Leyton SRSEN
The Leyton SRSEN Surface/Recess Sensor Switch / Dimmer 12V/24V is a versatile sensor switch and dimmer designed for low voltage applications. It can be surface or recess mounted, providing flexible installation options. This sensor unit, which switches low voltage (12V or 24V), must be wired between the LED driver and LED lighting. It features both on/off and dimming functions and illuminates blue, making it easy to find in the dark.
Key Features
- On/Off & Dimming Function: Provides both on/off switching and dimming control.
- Max Load:
- 12V: 24W
- 24V: 48W
- Mounting Options: Can be recessed or surface mounted for flexible installation.
- Illuminated Switch: Illuminates blue to help locate the switch in the dark.
- Finish: Sleek silver, suitable for various interior styles.
- Voltage: Compatible with both 12V and 24V power supplies.
- Wattage:
- 12V: Supports up to 24W
- 24V: Supports up to 48W
- IP Rating: IP44, providing protection against solid objects and splashing water.
- Connector Type: TOP for secure and reliable connections.
- Cut Out: Requires a 25mm cut out for installation.
- Class II: Double insulated, ensuring safety and compliance with electrical standards.
- Material: Made from durable plastic.
Technical Specifications of Surface/Recess Sensor Switch / Dimmer 12V/24V
- Part Number: SRSEN
- Finish: Silver
- Voltage: 12/24V
- Wattage: 12V – 24W / 24V – 48W
- IP Rating: IP44
- Connector Type: TOP
- Cut Out: 25mm
- Class: II
- Material: Plastic
Applications
This sensor switch is perfect for use in cabinets, wardrobes, and other areas where automated lighting control and dimming are needed. The Leyton SRSEN Surface/Recess IP44 On-Off Sensor Switch/Dimmer provides a sleek and efficient solution for modern lighting needs. Its flexible mounting options, combined with the on/off and dimming functions, enhance both convenience and energy efficiency in any space.
