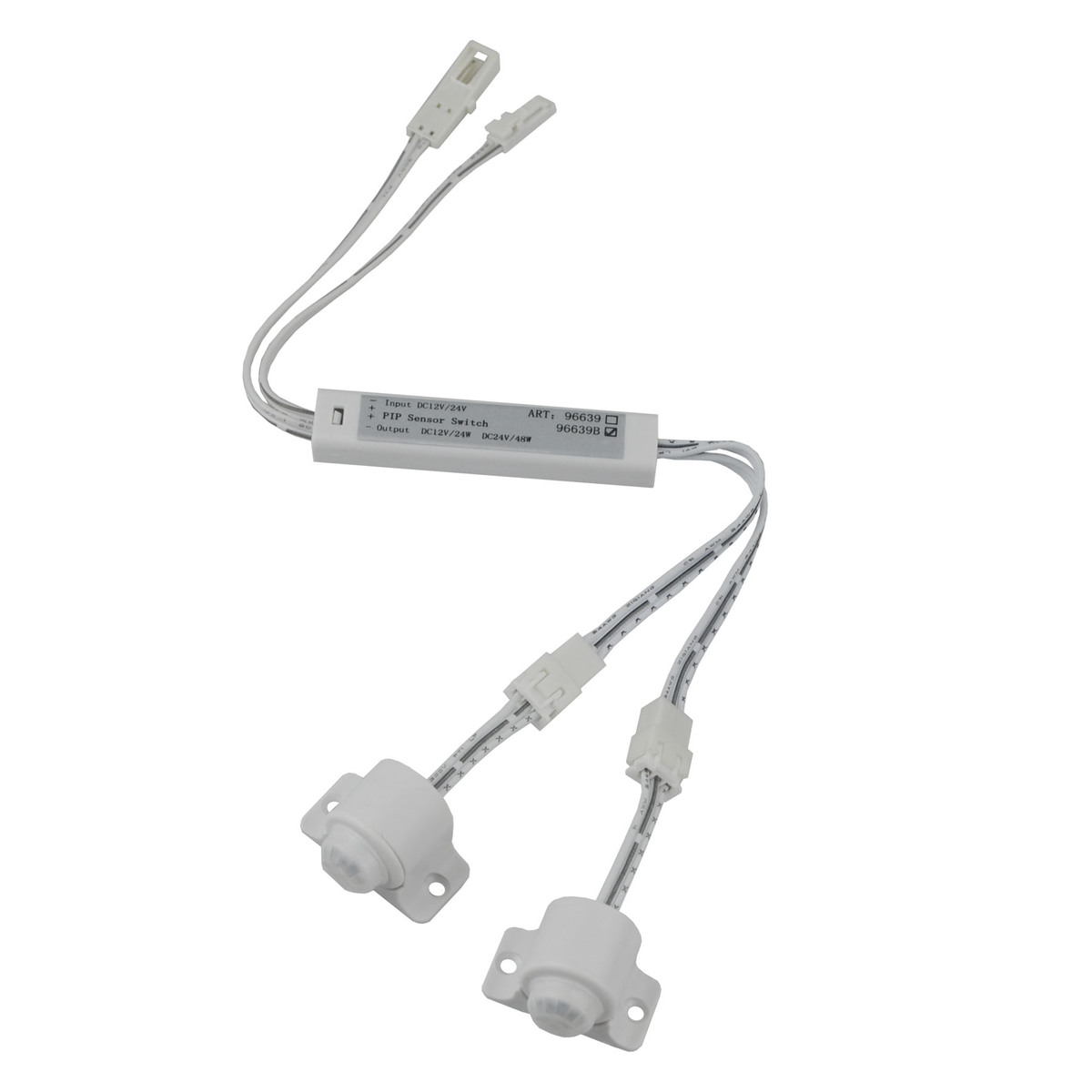

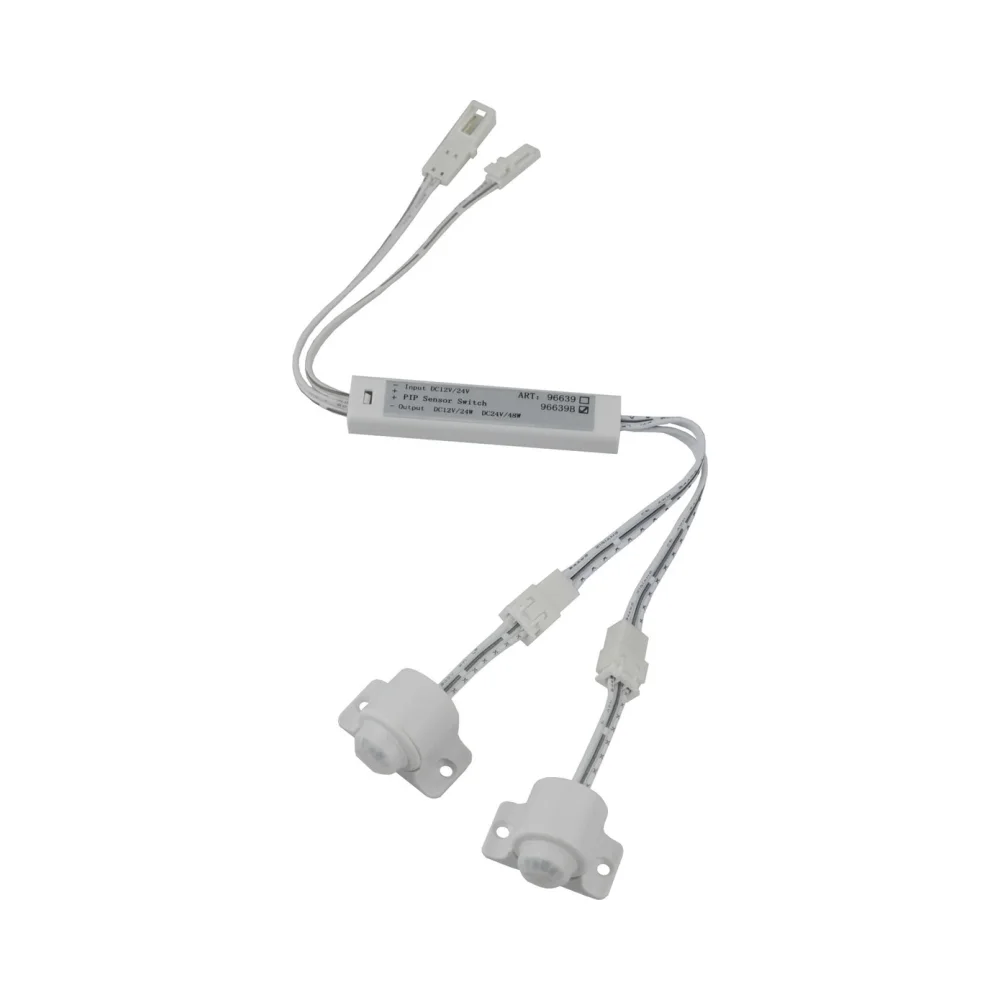

Leyton S-LV-PIR-DUO Discreet Miniature PIR Double Sensor – White

Leyton S-LV-PIR-DUO Discreet Miniature PIR Double Sensor – White

Leyton S-LV-PIR-DUO

The Leyton S-LV-PIR-DUO Discreet Miniature PIR Double Sensor is a highly efficient and compact solution for automated lighting control. Designed for both surface and recess mounting, this sensor seamlessly integrates into your lighting system, providing automatic activation of lights when it detects body motion. Ideal for a variety of applications, it ensures your lighting is only on when needed, enhancing both convenience and energy efficiency.

Key Features

• Max Load:
  • 12V: 36W
  • 24V: 72W
• Compact Design: A discreet miniature PIR sensor head that can be surface or recess mounted.
• Automatic Operation: The sensor activates connected lights upon detecting body motion.
• Timed Deactivation: Lights turn off approximately 45 seconds after no activity is detected.
• Detection Range: Effective within a range of 1.5 meters.
• Finish: Elegant white, suitable for various interior styles.
• Voltage: Compatible with both 12V and 24V power supplies.
• Wattage:
  • 12V: Supports up to 36W
  • 24V: Supports up to 72W
• IP Rating: IP20, indicating protection against solid objects up to 12mm and no protection against liquids.
• Head Dimensions: 19mm diameter x 10mm depth.
• Cut Out Size: Requires a 16mm cut out for installation.
• Class II: Double insulated, ensuring safety and compliance with electrical standards.
• Material: Made from durable plastic.

Technical Specifications

• Finish: White
• Voltage: 12/24V
• Wattage: 12V – 36W / 24V – 72W
• IP Rating: IP20
• Head Dimensions: 19mm diameter x 10mm depth
• Cut Out: 16mm
• Class: II
• Material: Plastic

Applications

This sensor is perfect for use in cabinets, wardrobes, hallways, and other areas where automated lighting control is needed. The Leyton S-LV-PIR-DUO Discreet Miniature PIR Double Sensor offers a versatile and efficient solution for modern lighting needs, ensuring lights are only on when necessary.
