Description

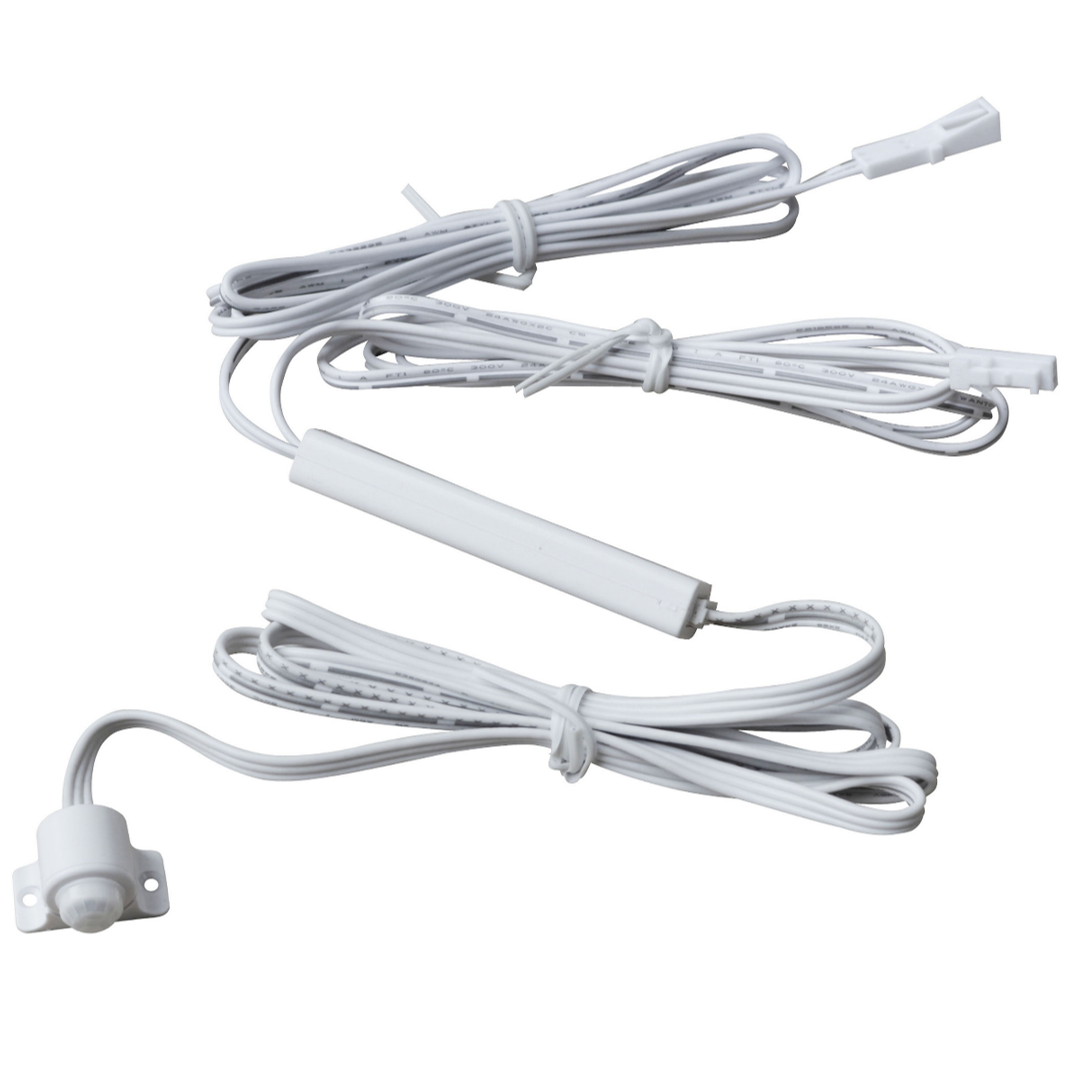

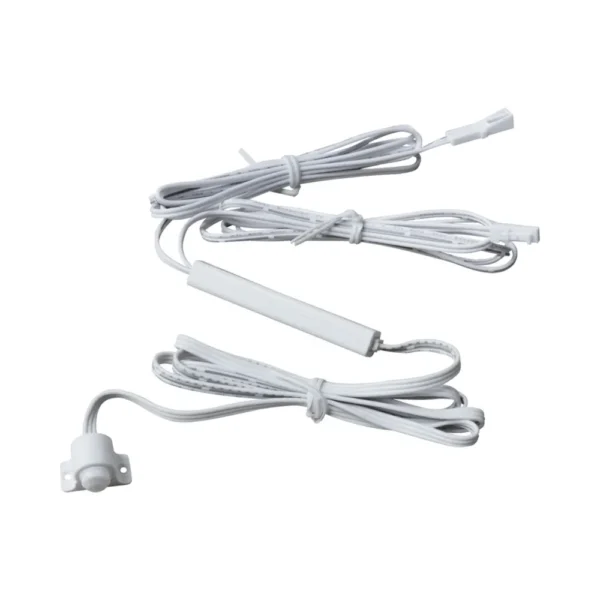

Leyton S-LV-PIR Discreet Miniature PIR Single Sensor – White
Leyton S-LV-PIR
The Leyton S-LV-PIR Discreet Miniature PIR Single Sensor is a sleek and efficient solution for automated lighting control. This sensor, suitable for both surface and recess mounting, automatically activates lights upon detecting body motion. Its compact design makes it ideal for a variety of settings, ensuring that lights are only on when needed, thereby enhancing energy efficiency and convenience.
Key Features
- Max Load:
- 12V: 36W
- 24V: 72W
- Compact Design: A discreet miniature PIR sensor head that can be surface or recess mounted.
- Automatic Operation: Activates connected lights upon detecting body motion.
- Timed Deactivation: Lights turn off approximately 45 seconds after no activity is detected.
- Detection Range: Effective within a range of 1.5 meters.
- Finish: Elegant white, suitable for various interior styles.
- Voltage: Compatible with both 12V and 24V power supplies.
- Wattage:
- 12V: Supports up to 36W
- 24V: Supports up to 72W
- IP Rating: IP20, indicating protection against solid objects up to 12mm and no protection against liquids.
- Head Dimensions: 19mm diameter x 10mm depth.
- Cut Out Size: Requires a 16mm cut out for installation.
- Class II: Double insulated, ensuring safety and compliance with electrical standards.
- Material: Made from durable plastic.
Technical Specifications
- Finish: White
- Voltage: 12/24V
- Wattage: 12V – 36W / 24V – 72W
- IP Rating: IP20
- Head Dimensions: 19mm diameter x 10mm depth
- Cut Out: 16mm
- Class: II
- Material: Plastic
Applications
This sensor is perfect for use in cabinets, wardrobes, hallways, and other areas where automated lighting control is needed. The Leyton S-LV-PIR Discreet Miniature PIR Single Sensor offers a versatile and efficient solution for modern lighting needs, ensuring lights are only on when necessary.
