Leyton PIR-RFSEN Wireless PIR Sensor & Receiver Kit with Touch Dimmer

SKU: PIR-RFSEN
Delivery usually within 1-3 working days*
Confirm Availability

Remote battery powered PIR sensor can activate lights from up to 10 metres away

12V – 60W max load

24V – 120W max load

Built in touch dimmer to set the light level you require

6 Way TOP connection on receiver

Up to 3 metre distance & 45 second delay on PIR sensor

Ideal for use in cabinets, wardrobes, and other areas requiring automated lighting control and dimming.

£22.95 + VAT

(incl. VAT £27.54)

Description

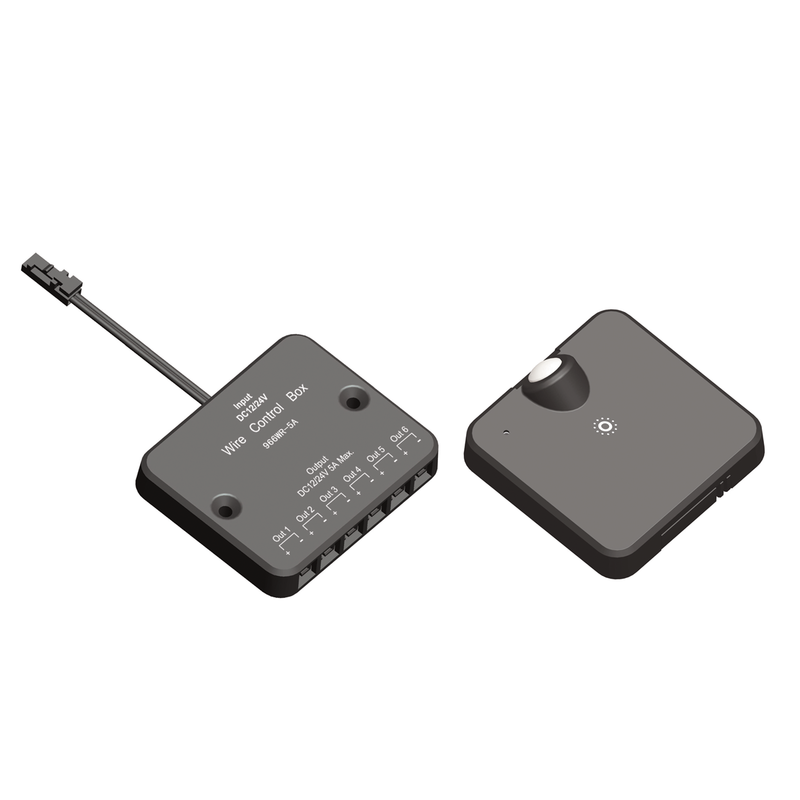

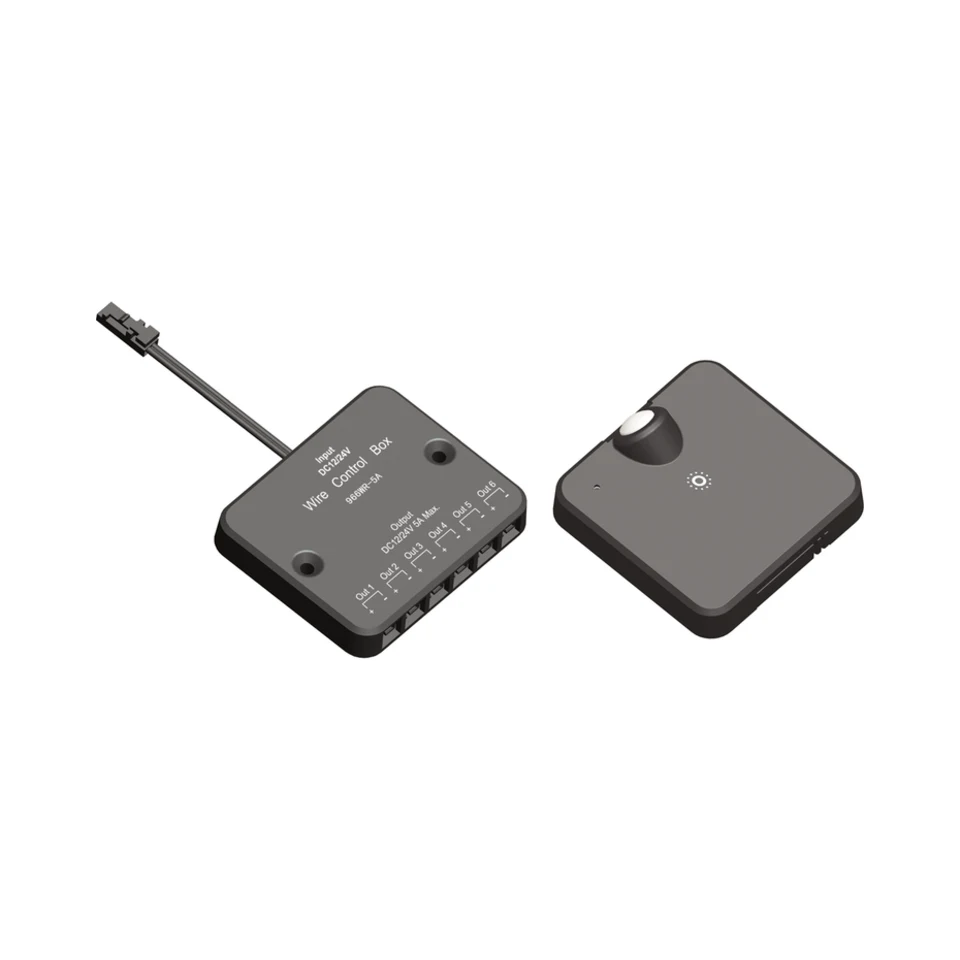

Leyton PIR-RFSEN Wireless PIR Sensor & Receiver Kit with Touch Dimmer

Leyton PIR-RFSEN

The Leyton PIR-RFSEN is a comprehensive wireless PIR sensor and receiver kit that includes a touch dimmer. Designed for flexible and efficient lighting control, this kit provides seamless integration with low voltage (12V or 24V) systems. It features a wireless PIR sensor with up to a 3-meter detection range and a 45-second delay, ensuring convenient and automated lighting management. The receiver requires an LED driver and supports up to 6-way TOP connections.

Key Features

  • Max Load:
    • 12V: 60W
    • 24V: 120W
  • Wireless Connectivity: Allows for easy and flexible installation without the need for wiring between the sensor and receiver.
  • PIR Sensor: Detects motion up to 3 meters away and includes a 45-second delay before turning off.
  • Touch Dimmer: Provides smooth dimming control for your lighting.
  • 6-Way TOP Connection: Enables multiple connections on the receiver for added versatility.
  • Finish: Sleek black, suitable for various interior styles.
  • Voltage: Compatible with both 12V and 24V power supplies.
  • Wattage:
    • 12V: Supports up to 60W
    • 24V: Supports up to 120W
  • IP Rating: IP20, providing protection against solid objects up to 12mm and no protection against liquids.
  • Dimmable: Yes, with touch dimming functionality.
  • Connector Type: TOP for secure and reliable connections.
  • Dimensions:
    • Length: 50mm
    • Width: 50mm
    • Depth: 10mm
  • Class II: Double insulated, ensuring safety and compliance with electrical standards.
  • Material: Made from durable plastic.

Technical Specifications

  • Part Number: PIR-RFSEN
  • Finish: Black
  • Voltage: 12/24V
  • Wattage: 12V – 60W / 24V – 120W
  • IP Rating: IP20
  • Dimmable: Yes
  • Connector Type: TOP
  • Dimensions: 50mm (L) x 50mm (W) x 10mm (D)
  • Class: II
  • Material: Plastic

Applications

Ideal for use in cabinets, wardrobes, and other areas requiring automated lighting control and dimming. The Leyton PIR-RFSEN Wireless PIR Sensor & Receiver Kit with Touch Dimmer offers a sleek and efficient solution for modern lighting needs. Its wireless connectivity, motion detection, and touch dimming capabilities enhance both convenience and energy efficiency in any space.

Downloads

View Product Data Sheet

Additional information

Brand

Leyton

IP Rating

IP20

Features

Recessed
