Description

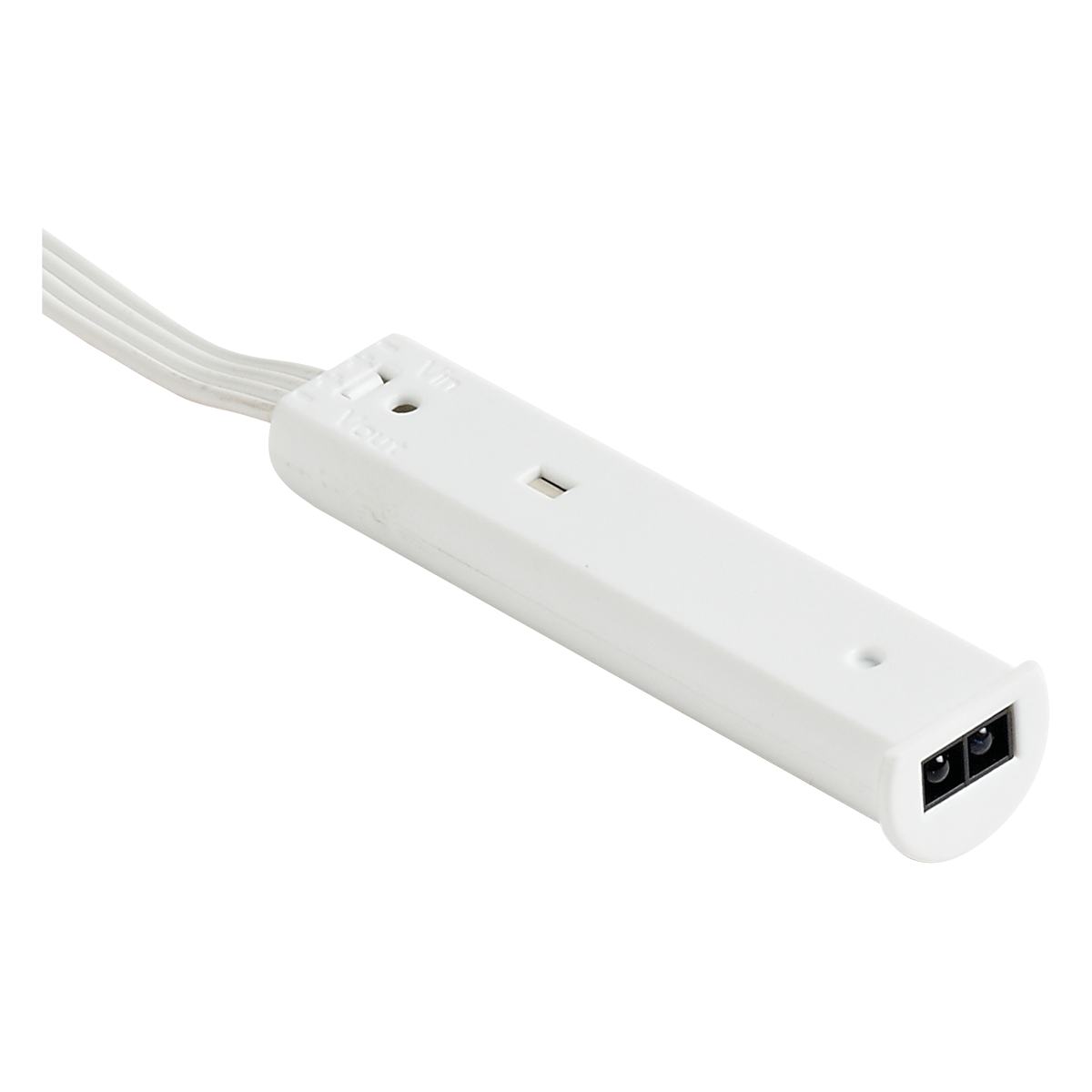

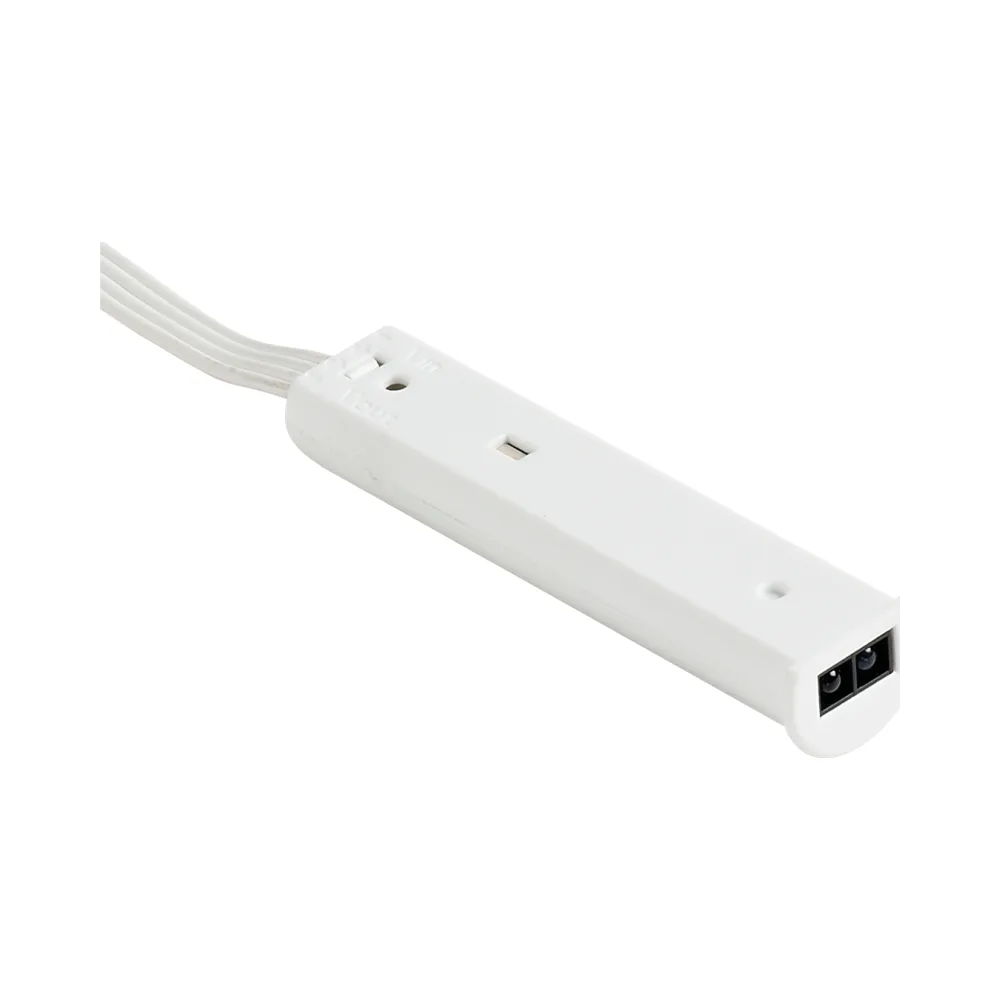

Leyton IRDS-LED-JB4 Multi-Functional Sensor – Door or Hand Movement Operated – White
Leyton IRDS-LED-JB4
The Leyton IRDS-LED-JB4 is a versatile multi-functional sensor designed for both door and hand movement operation. It can switch between modes to provide flexible lighting control. When in door sensor mode, the lights are activated upon opening the door and turned off when the door is closed. In hand motion mode, the sensor activates the lights with a simple hand wave.
Its compact design and white finish make it an ideal choice for various settings.
Key Features
- Max Load:
- 12V: 15W
- 24V: 30W
- Multi-Functional: Switch between door sensor mode and hand motion operated mode for versatile use.
- Automatic Operation:
- Door Sensor Mode: Lights are activated when the door is opened and turned off when the door is closed.
- Hand Motion Mode: Senses hand movement in front of the sensor eye for hands-free operation.
- Detection Range: Recommended for use within 50mm for optimal performance.
- Finish: Elegant white, suitable for various interior styles.
- Voltage: Compatible with both 12V and 24V power supplies.
- Wattage:
- 12V: Supports up to 15W
- 24V: Supports up to 30W
- IP Rating: IP20, providing protection against solid objects up to 12mm and no protection against liquids.
- Connector Type: JB for secure and reliable connections.
- Class II: Double insulated, ensuring safety and compliance with electrical standards.
- Material: Made from durable plastic.
Technical Specifications
- Finish: White
- Voltage: 12/24V
- Wattage: 12V – 15W / 24V – 30W
- IP Rating: IP20
- Connector Type: JB
- Class: II
- Material: Plastic
Applications
Ideal for use in cabinets, wardrobes, and other scenarios requiring door or hand-operated lighting control. The Leyton IRDS-LED-JB4 Multi-Functional Sensor offers a versatile and efficient solution for modern lighting needs. Its ability to switch between door and hand motion modes enhances both convenience and energy efficiency in any space.
